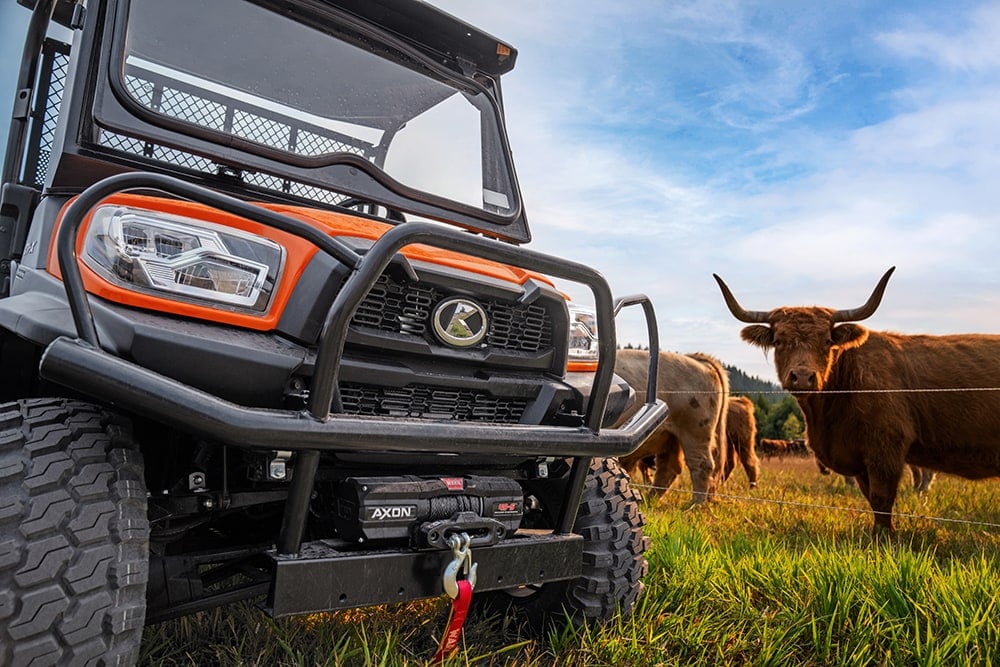

RTV-X / Optional Roof, Windshield, Winch & LED Work Lights

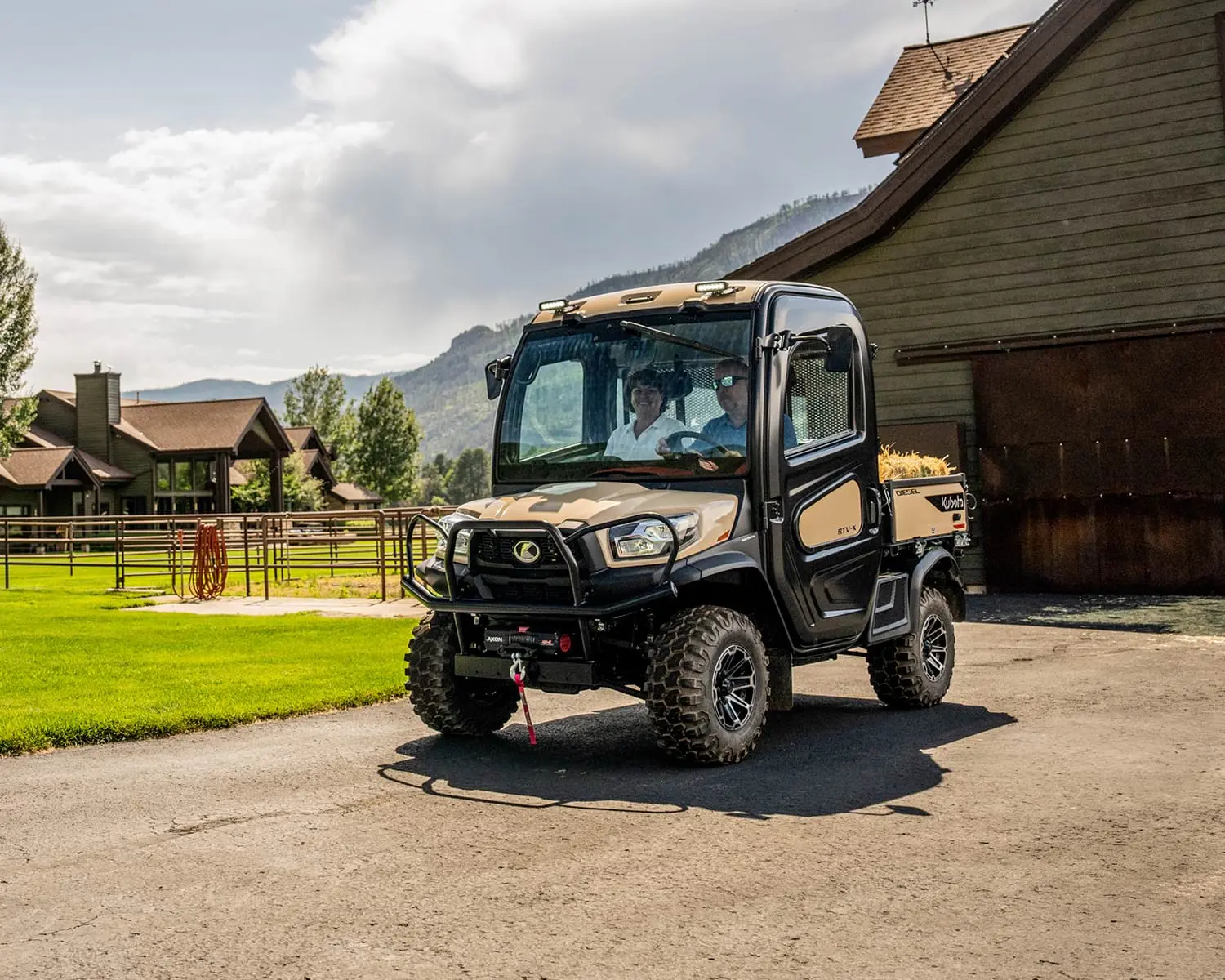

RTV-X

MSRP as low as $18,699.00^§

If your average utility vehicle won’t cut it, the RTV-X series is our most versatile utility vehicle yet. With diesel engines, 1,100 lbs. of cargo capacity and a hydraulic-lift cargo box, these vehicles were built to perform.

North America’s #1-Selling Diesel UTV*
*Based on Power Products Marketing North American 2025 sales data for the Pure Utility Vehicle (PUV) segment.

Find a Dealer

Build

Offers

Build Your RTV-X

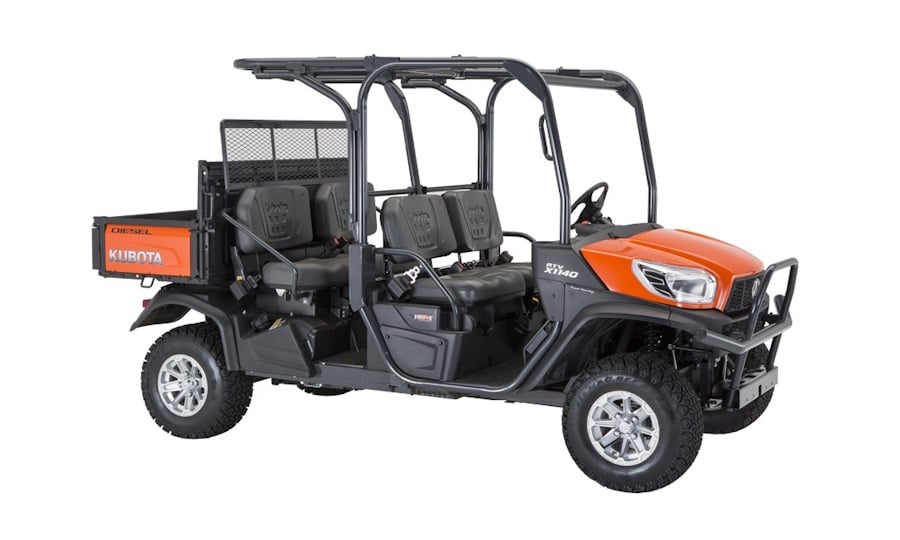

RTV-X

MSRP as low as $18,699.00^§

Build

How to Use Your RTV-X

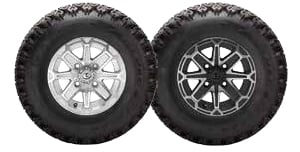

Alloy Wheels (optional)

You’ll travel in style with these attractive, machine-polished alloy wheels. Clear coating helps keep them bright and shiny.

Built Tough

23.3 HP Kubota Diesel Engine
Power when and where you need it. Even after the sun disappears, you can rely on the powerful 23.3 HP diesel engine to keep you moving forward. Kubota-built and worksite-proven, these 3-cylinder liquid-cooled diesel engines have a well-earned reputation for dependable performance even in the harshest worksite terrains.
VHT-X (Variable Hydraulic Transmission)
Kubota has more experience in variable hydraulic transmissions than any other Utility Vehicle manufacturer. Kubota’s advanced VHT-X offers a wide torque band, advanced designed HST motor and large oil coolers to boost durability and increase performance.
20% Larger, Clog-Resistant Radiator
Open the hood and you’ll find the radiator and air-intake located high and up front, where the air is cleaner and cooler. This improves both radiator performance and simplifies maintenance. Kubota’s wide fin pitch design minimizes clogging, further improving radiator performance.

Built Tough

23.3 HP Kubota Diesel Engine
Power when and where you need it. Even after the sun disappears, you can rely on the powerful 23.3 HP diesel engine to keep you moving forward. Kubota-built and worksite-proven, these 3-cylinder liquid-cooled diesel engines have a well-earned reputation for dependable performance even in the harshest worksite terrains.
VHT-X (Variable Hydraulic Transmission)
Kubota has more experience in variable hydraulic transmissions than any other Utility Vehicle manufacturer. Kubota’s advanced VHT-X offers a wide torque band, advanced designed HST motor and large oil coolers to boost durability and increase performance.
20% Larger, Clog-Resistant Radiator
Open the hood and you’ll find the radiator and air-intake located high and up front, where the air is cleaner and cooler. This improves both radiator performance and simplifies maintenance. Kubota’s wide fin pitch design minimizes clogging, further improving radiator performance.

Capability

1,300 lbs. towing capacity – standard front and rear two-inch hitch receivers at the front and back

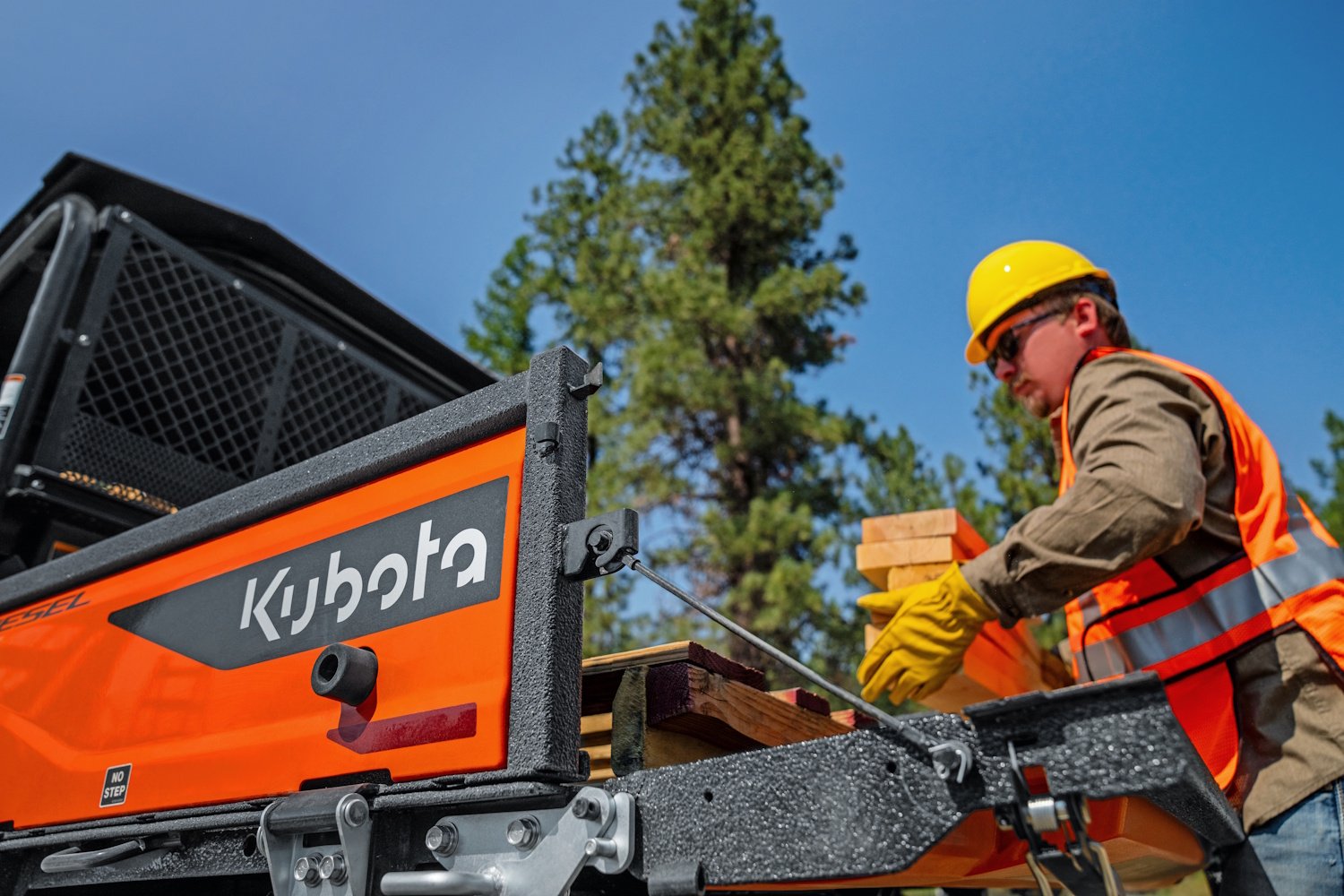

Standard hydraulic dump bed with a whopping 19.1 cu. ft./9.9 cu. ft. (two-seat and four-seat configurations, respectively) capacity cargo bed
Optional factory spray-on bed liner to protect the cargo bed

Exceptional Ride

Front & Rear Independent Suspension
Regardless of the terrain or load, independent suspension on all four wheels ensures a truly exceptional ride. Kubota’s Extra Duty IRS (Independent Rear Suspension) technology also sets a new standard for durability.
10.8” Inch Ground Clearance
The RTV-X raises the bar on ground clearance – to a full 10.8” with 8” of suspension travel – letting you glide over the bumps rather than through them.
Limited-Slip Front Differential
True 4WD drive with a limited-slip front differential and a locking rear differential help reduce wheel spin to a minimum, giving you greater control and a smoother ride on rough or muddy terrain.
Dynamic Braking
You’ll feel more secure, especially when traveling down long inclines, knowing that dynamic braking is providing additional braking power and greater driving control.

Exceptional Ride

Front & Rear Independent Suspension
Regardless of the terrain or load, independent suspension on all four wheels ensures a truly exceptional ride. Kubota’s Extra Duty IRS (Independent Rear Suspension) technology also sets a new standard for durability.
10.8” Inch Ground Clearance
The RTV-X raises the bar on ground clearance – to a full 10.8” with 8” of suspension travel – letting you glide over the bumps rather than through them.
Limited-Slip Front Differential
True 4WD drive with a limited-slip front differential and a locking rear differential help reduce wheel spin to a minimum, giving you greater control and a smoother ride on rough or muddy terrain.
Dynamic Braking
You’ll feel more secure, especially when traveling down long inclines, knowing that dynamic braking is providing additional braking power and greater driving control.

More Comfort

Hydraulic power steering eliminates steering wheel kickback increasing operator comfort
Tilt-adjustable steering wheel
Digital meter cluster to keep you informed of all critical driving conditions, including speed, hours and miles traveled, as well as an overheat alarm
Easily accessible dash-mounted parking brake
Glove box and under-seat storage compartments
Enhanced ROPS for your safety (meets the SAE J2194 and OSHA 1928 ROPS standards)

More Comfort

Hydraulic power steering eliminates steering wheel kickback increasing operator comfort
Tilt-adjustable steering wheel
Digital meter cluster to keep you informed of all critical driving conditions, including speed, hours and miles traveled, as well as an overheat alarm
Easily accessible dash-mounted parking brake
Glove box and under-seat storage compartments
Enhanced ROPS for your safety (meets the SAE J2194 and OSHA 1928 ROPS standards)

Add-Ons

V5260

60″ wide rotary broom with 18″ diameter poly brushes
50 1/2″ width @ 25° max angle
Reversible broom rotation
Hydraulic lift and angle adjustment
Recommend optional Markers (V5250)
Requires Front Quick Hitch (V5289), Electro-Hydraulic Valve Kit (V5232) & (3rd function – V5233), Auxiliary Hydraulic Pump (X900 – V5271) or (X1120/X1100 (X-Cab) – V5272), Hydraulic Oil Cooler (V5240), Hand Throttle Kit (V5245), & Front Heavy Duty Strut Kit (K7591-99180) or Front Heavy Duty Spring Kit (K7591-99190)

See your dealer for more information.

V5291

72″ wide V-Blade (straight) with moldboard height 19 1/8″ @ center, 20 1/2″ @ ends, and 3/8″ moldboard thickness
66″ V position width and 59″ scoop position width
Hydraulic lift with down pressure and float
Hydraulic angle adjustment with built-in relief valves to protect against impact
Trip cutting edges
Recommend optional Markers (V5250) and Curb Guards (V5256)
Requires Front Quick Hitch (V5289), Electro-Hydraulic Valve Kit (V5232) & (3rd function – V5233), Auxiliary Hydraulic Pump (X900 – V5271) or (X1120/X1100 (X-Cab) – V5272), & Front Heavy Duty Strut Kit (K7591-99180) or Front Heavy Duty Spring Kit (K7591-99190)

See your dealer for more information.

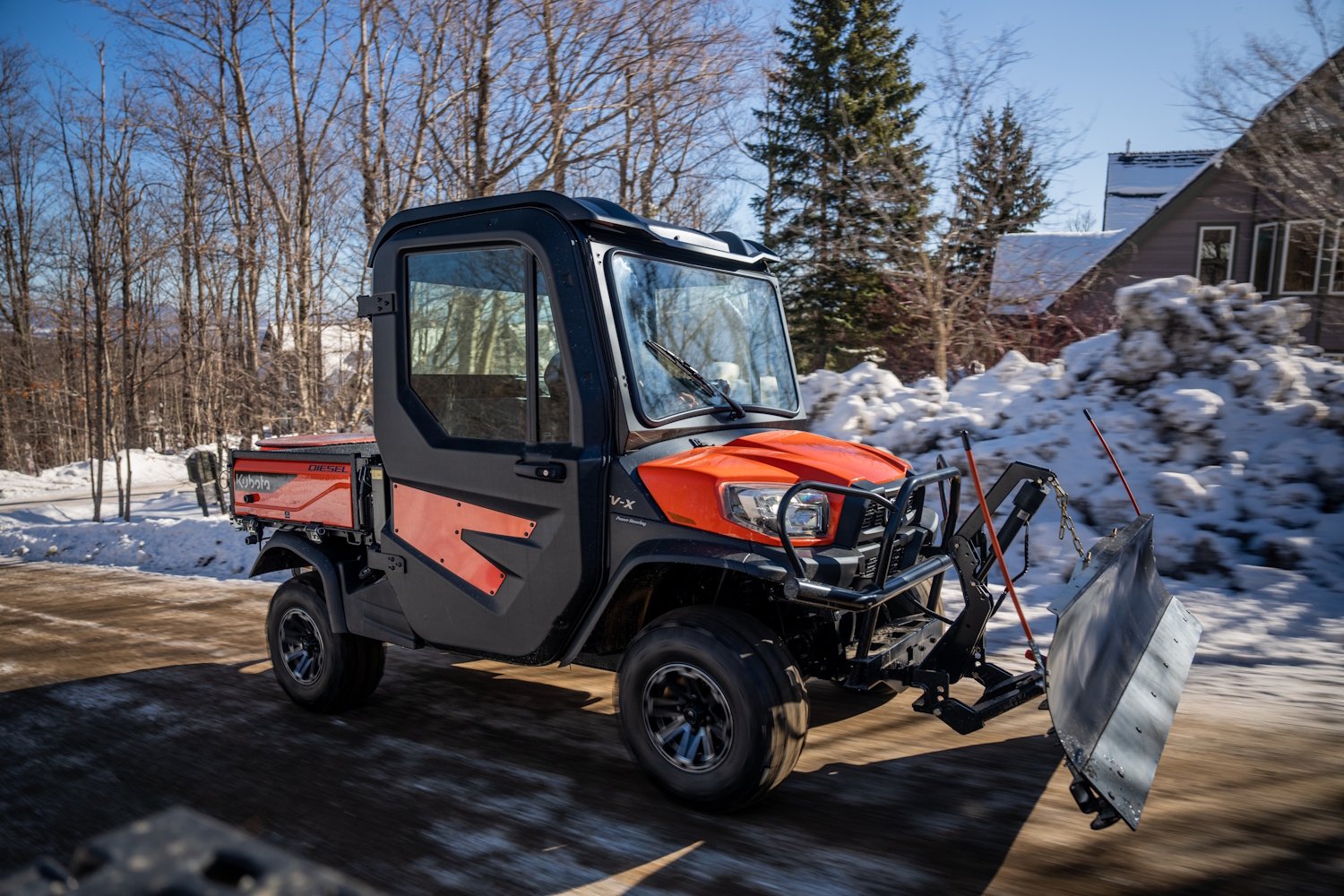

V5290

72″ wide commercial snow blade with 21.75″ moldboard height and 10 gauge moldboard thickness
62.4″ plow width @ 30° max angle
Hydraulic lift with down pressure and float
Hydraulic angle adjustment with adjustable blade trip springs
Recommended optional Markers (V5250)
Requires Front Quick Hitch (V5289), Electro-Hydraulic Valve Kit (V5232), Auxiliary Hydraulic Pump (X900 – V5271) or (X1120/X1100 (X-Cab) – V5272), & Front Heavy Duty Strut Kit (K7591-999180) or Front Heavy Duty Spring Kit (K7591-99190)

See your dealer for more information.

V5060

72″ wide heavy duty snow blade with 23.5″ moldboard height and 12 gauge moldboard thickness
64.5″ plow width @ 30° max angle
Includes self contained electro-hydraulics for lift and angle adjustment
Requires Front Heavy Duty Strut Kit (K7591-99180) or Front Heavy Duty Spring Kit (K7591-99190)

See your dealer for more information.

V5245

Required for 60″ Rotary Broom (V5260)

See your dealer for more information.

V5276

Stationary applications only, optional coupler to power aftermarket implements
Cannot be used to power hydraulic motor applications

See your dealer for more information.

V5240

Required for 60″ Rotary Broom (V5260)

See your dealer for more information.

Two Function V5232A* (RTV-X, X900, X1100 (X-Cab), X1120)

3rd Function V5233* (RTV-X, X900, X1100 (X-Cab), X1120)

Required for 72″ Commercial Straight Blade (V5290), 72″ V-Plow Blade (V5291), and 60″ Rotary Broom (V5260)

See your dealer for more information.

One Valve V5273* (RTV-X, X900, X1100 (X-Cab), X1120)
One Valve V5263* (X1130, X1140 (X-Crew))
Two Valve V5274* (RTV-X, X900, X1120, X1100 (X-Cab))

Required for Hydraulic Angle Kit (V5007) and aftermarket implements

See your dealer for more information.

D902 Engine V5271* (X900)
D1105 Engine V5272* (RTV-X, X1100 (X-Cab), X1120)
D1105 Engine V5262* (X1130, X1140 (X-Crew))

Required for Hydraulic Angle Kit (V5007), hydraulic powered implements, and aftermarket implements

See your dealer for more information.

V5007

Optional hyudraulic angle kit to upgrade 72″ General Duty Front Blade (V5008) to hydraulic angle adjustment
Requires Auxiliary Hydraulic Pump (X900 – V5271), (X1120/X1100 (X-Cab) – V5272), or (X1140 (X-Crew) – V5262) and Auxiliary Hydraulic Valve: One Valve (X900/X1120/X1100 (X-Cab) – V5273), Two Valve (X900/X1120/X1100 (X-Cab) – V5274), or One Valve (X1140 (X-Crew) – V5263)

See your dealer for more information.

77700-V5255 (V5255)

Optional front guard adapter for Front Quick Hitch (V5289) to reinstall front guard when front quick hitch implements are put away for the season

See your dealer for more information.

V5289

Required quick hitch system designed for 72″ Commercial Straight Blade (V5290), 72″ V-Plow Blade (V5291) and 60″ Rotary Broom (V5260) for easy implement changes

See your dealer for more information.

V5295A

78″ wide K-connect V-blade (straight) with moldboard height 20″ @ center, 25 3/4″ @ ends, and 0.075″ moldboard thickness
69 1/2″ V position width and 66″ scoop position width
Hydraulic lift with down pressure and float
Hydraulic angle adjustment with built-in relief valves to protect against impact
Trip cutting edges
Reinforced with 3 vertical ribs, 1 diagonal ribs, and C-channel on each wing
New curvature allows for rolling of snow eliminating the need for a deflector and includes markers and skid shoes standard
Recommend optional Curb Guards (V5281)
Requires 4 Point K-Connect (V5293) and Front Heavy Duty Strut Kit (K7591-99180) or Front Heavy Duty Spring Kit (K7591-99190)
Compatible with PTO Drive K-Connect (V5299)

See your dealer for more information.

V5294A

78″ wide K-connect snow blade with 24″ moldboard height and 0.075″ moldboard thickness
68″ plow width @ 30° max angle covers the width of the RTV-X
Hydraulic lift with down pressure and float
Hydraulic angle adjustment with two spring trip protection
Reinforced with 4 vertical ribs, 2 diagonal ribs, and C-channels
New curvature allows for rolling of snow eliminating the need for a deflector and includes markers and skid shoes standard
Recommend optional Curb Guards (V5281)
Requires 4 Point K-Connect (V5293) and Front Heavy Duty Strut Kit (K7591-99180) or Front Heavy Duty Spring Kit (K7591-99190)
Compatible with PTO Drive K-Connect (V5299)

See your dealer for more information.

V5285

Replacement skid shoes for 78″ Straight Blade (V5294A) and 78″ V-Blade (V5295A)

See your dealer for more information.

V5281

Optional curb guards to protect the corners of 78″ Straight Blade (V5294A) and 78″ V-Blade (V5295A) from incidental curb damage

See your dealer for more information.

Rubber Cutting Edge – V5287

Optional rubber cutting edge for 78″ Straight Blade (V5294A)

Plastic Cutting Edge – V5288

Optional plastic cutting edge for 78″ Straight Blade (V5294A)

Plastic Cutting Edge – V5284

Optional plastic cutting edge for 78″ V-Blade (V5295A)

See your dealer for more information.

77700-V5278 (V5278)

Optional Front guard adapter for 4 Point K-Connect (V5293) to reinstall front guard when front K-Connect implements are put away for the season

See your dealer for more information.

V5298

Add a brush bar and 2 rectangular LED worklights to the 4 Point K-Connect (V5293)
Requires 4 Point K-Connect (V5293)

See your dealer for more information.

V5293A

4 point quick hitch system with a power unit to provide an independent 3 function hydraulic system
Used to quick attached 78″ Straight Blade (V5294A) or 78″ V-Blade (V5295A)

See your dealer for more information.

V5297

Optional plastic cutting edge and skid shoes for 66″ Commercial Snowblower (V5296)

See your dealer for more information.

V5269

Optional 24″ diameter 50/50 poly and steel brush kit for 66″ Rotary Broom (V5266)

See your dealer for more information.

V5299B

Used in conjunction with 4 Point K-Connect (V5293) to operate 66″ Rotary Broom (V5266) or 66″ Commercial Snowblower (V5296)
For RTV-X1120, requires Water Pump Pulley (16241-74250) and Engine Fan Belt (1E270-97010)
Requires 4 Point K-Connect (V5293)

See your dealer for more information.

V5279

The perfect addition to your X-Series makes clean up and debris removal a breeze
Generates over 214 mph of velocity, with 225° of hydraulically driven nozzle rotation with a standard parking stand included
Estimated 30-minute installation time, so you can swap out snow removal implements and prepare for warmer weather quickly
Requires 4 Point Hitch (V5293B), PTO Kit (V5299B), and Hand Throttle Kit (V5245)
NOT compatible with 4 Point Hitch (V5293A & V5293) and PTO Kit (V5299A & V5299)

See your dealer for more information.

V5296

66″ wide PTO driven 2-stage commercial snowblower with hydraulic chute rotation and deflection
16″ fan with 4 blades
Skid shoes and drift cutters are standard
Requires 4 Point K-Connect (V5293), PTO Drive K-Connect (V5299), and Front Heavy Duty Strut Kit (K7591-99180) or Front Heavy Duty Spring Kit (K7591-99190)s

See your dealer for more information.

V5266

66″ wide PTO driven rotary broom with 24″ diameter poly brushes
59 1/2″ width @ 25° max angle
Hydraulic lift and angle adjustment with 8 1/2 degree oscillation
Floating wheels and markers standard
Requires 4 Point K-Connect (V5293), PTO Drive K-Connect (V5299), and Front Heavy Duty Strut Kit (K7591-99180) or Front Heavy Duty Spring Kit (K7591-99190)

See your dealer for more information.

60 Gallon RTV Spot Sprayer – 77700-12145

60 PSI gauge
5.0 GPM demand pump
RTV clamps
Polyethylene tank with mould-in drain with cap
25′ hose with spray gun
Deluxe pistol grip handgun sprays up to 25′ vertical and 35′ horizontal
Large 5″ fill lid with tether
8′ wiring harness with battery clips
Add a Boom – The 77700-09601

40 Gallon RTV Sprayer with Hitch Mount Boom – 77700-08964

Unique 2″ receiver mount boom provides 300° of adjustability
7 nozzle breakaway boom coverage up to 140″
Nozzles include check valve
Chemically-resistant polyethylene tank
2.2 GPM pump
60 PSI gauge
Deluxe 18″ sprayer wand
Adjustable relief with gauge

25 Gallon Sprayer – 77700-08963

3 nozzle boomless spray pattern allows for 140″ (11.6′) of coverage
Chemically-resistant polyethylene tank
2.2 GPM pump
60 PSI gauge
Deluxe 18″ sprayer wand
Adjustable relief with gauge
Multi-purpose sprayer fits most RTV’s, ATV’s & UTV’s

Sprayer Boom – 77700-09601

Sprayer boom for Kubota 40 gallon sprayer
Compatible with many other sprayers!

See your dealer for more information.

Rock Salt Spreader – V5002-A
RTV-X, X900, X1100 (X-Cab), X1120

Ideal for winter applications with 3 cubic feet capacity (240 lbs) and spreading width up to 25 ft
Electric powered motor and transmission controlled by a variable speed weatherproof controller
Heavy duty poly hopper construction
Top screen and fitted cover included

Tailgate Spreader – V5003-A
RTV-X, X900, X1100 (X-Cab), X1120

Ideal for year round use with 3 cubic feet capacity (240 lbs) and spreading width up to 20 ft
Easy-to-calibrate for various materials (e.g. seed, fertilizer, bagged ice melt, and more)
Electric powered motor and transmission controlled by a variable speed weatherproof controller
Heavy duty poly hopper construction
Top screen and fitted cover included

Cargo Box Spreader – V5005
RTV-X, X900, X1100 (X-Cab), X1120

11 cubic feet capacity (800 lbs) and spreading width up to 30 ft
Electric powered motor and transmission with a dual controller for independent material and spread width control
Heavy duty poly hopper construction
Top screen, fitted cover, and heavy duty vibrator included

Flow Control Tube – V4407
RTV-X, X900, X1100 (X-Cab), X1120

Optional stainless adjustable flow regulator helps prevent leaking issues when handling fine pellet and flake materials
Requires Cargo Box Spreader (V5005)

36″ Drop Spreader – V5004
RTV-X, X900, X1100 (X-Cab), X1120

Ideal for precise snow and ice management applications
6 cubic foot (480 lb) material capacity and 36″ drop pattern is perfect for sidewalk maintenance
Electric powered motor and vibrator with cab mounted digital, variable speed controller
Features a gateless design to help improve material efficiency and reduce turf damage
Heavy duty poly hopper construction
Top Screen and Molded Hopper Cover included

See your dealer for more information.

77700-12846

Dynamic 20W portable speaker to take the music with you
Powerful 57mm driver for high definition sound clarities
Built-in equalizer allows mode adjustment for better sound output
Built-in microphone to receive phone calls
Durable construction, impact-proof & water-resistasnt ABS body with rubber coating & IPX6 rating
Durable nylon composite clamps keep speaker secure
Designed for fast and easy attachment/removal
Clamps fit roll bars 1.625″ to 2″ diameter

See your dealer for more information.

77700-10694

Made from heavy duty, ballistic nylon
Easily and quickly attaches to your Kubota RTV
Includes strap kit to attach to your RopsRackPack® and buckles for attaching to your Ultimate Rack
Gear Bag is 18″ long x 4″ wide x 11″ tall

See your dealer for more information.

RTV ShockStrap® Load-Absorbing Ratchet Straps

9′ x 2″ 77700-10680
18′ x 2″ 77700-10681

Dependable – a ShockStrap® provides superior shock absorption without coming loose – keeps tension on the strap
Safety Strap – a backup strap in case the ShockStrap® is compromised
Durable – made from our proprietary formula that is not affected by most chemicals, sunlight, oil, salt water, fungus or moisture
Rust Resistant – hooks and buckle are yellow zinc coated, which lasts 8 to 10 times longer than chrome plating
Soft Loop – flexibility to always find a way to secure your load

See your dealer for more information.

77700-10709

Secures fire extinguishers up to 3.5″ in diameter
Universal design mounts to round tube roll cages up to 2.25″
Patented low-profile mounting
Adjustable clamps secure most fire extinguishers
Fire extinguisher not included

See your dealer for more information.

77700-08977

1-1/4″ x 12′ tow strap with loops and shackle
5,000 lbs. break strength
Forged shackle
Reinforced attachment loops

See your dealer for more information.

77700-08978

34″ x 34″ – stretches to 60″ x 60″
Heavy duty plastic hooks prevent scratching
Finger holes in hooks for safety and easy hook up
Weather Resistant
Secures odd, bulky shapes
Adjustable hooks
Fits most UTV/RTV Bed Boxes

See your dealer for more information.

HDWS Tire and Wheel Assembly – K7591-19312 (ARTV5203)
X900, X1120, X1100 (X-Cab), X1140 (X-Crew)

ATV Tire & Wheel Assembly – Left K7591-19112 (ARTV5201L) | Right K7591-19162 (ARTV5201R)
X900, X1120, X1100 (X-Cab), X1140 (X-Crew)

TURF Tire & Wheel Assembly – K7591-19613 (ARTV5205)
X900, X1120, X1100 (X-Cab)

HDMP Tire Assembly – Alloy Wheel Assy: K7121-19820 | Steel Wheel Assy: K7121-19300
RTV-X (X-Cab and X-Crew)

Tire & Alloy Wheel Assembly
X900, X1120, X1100 (X-Cab), X1140 (X-Crew)

Black ATV Left: K7591-99850 (ARTV5212L)
Black ATV Right: K7591-99860 (ARTV5212R)
Black HDWS: K7591-99800 (ARTV5214)
Silver ATV Left: K7591-99830 (ARTV5211L)
Silver ATV Right: K7591-99840 (ARTV5211R)
Silver HDWS: K7591-99790 (ARTV5213)

See your dealer for more information.

V5237 Turn Signal/Hazard Light Kit (ROPS only)

See your dealer for more information.

See your dealer for more information.

See your dealer for more information.

Front Wheels – V5225
Rear Wheels – V5226

See your dealer for more information.

Front – V5238
Rear – V5239

See your dealer for more information.

See your dealer for more information.

Pick a canopy
- Metal FOPS Canopy (Black – VC5044)
- Plastic Canopy – VC5043
Pick a windshield
- Tempered Glass – VC5025
- Laminated Glass – VC5020
- Hard-Coated Polycarbonate – VC5023
Pick a seat cab enclosure
- Steel Cab Enclosure (includes door and rear panel) – VC5045
Add mid panel to enclose seat configuration (optional)
- Mid Panel – Steel with Sliding Windows (VC5046)
- Mid Panel – Vinyl (VC5047)
Add accessories
- Mirrors – External Deluxe – VC5076
- Heater Kit – VC5083A
- Windshield Wiper Kit – VC5030
- Interior Dome Light – VC5053
- LED Work Lights
  - Front Lights – VC5050
  - Rear Light – VC5051A
- Strobe Light – VC5056
- Strobe Four-Way Flasher Lights – VC5057A
Stand Alone Options
- Acrylic Windshield
  - Clear – V5227
  - Tinted – V5228

See your dealer for more information.

IP68 waterproofing system standard
Redesigned & improved brake system
Improved and redesigned clutch system
Engineered system which outperforms the competition
Limited lifetime mechanical & 3 year electrical warranty
4-Seater winches for RTV-X1140 only

See your dealer for more information.

Protect your tail light from damaging debris by installing this Tail Lamp Guard Kit

See your dealer for more information.

Reduce potential damage to the rear CV Joint with this CV Joint Guard

See your dealer for more information.

Help protect your front CV Joint from rocks and stumps with this CV Joint Guard

See your dealer for more information.

Includes painted switch panel for up to five additional accessory switches
Panel plugs for un-used positions
Six position fuse block with vinyl dust cover for circuit and fuse protectio

See your dealer for more information.

77700-VC5076 Side Mirror Kit - Cab (Pair)

Increases operator visibility
Cab mirrors sold in a pair (left & right)
ROPS mirror sold individually)

See your dealer for more information.

77700-VC5051A Rear LED Work Light Kit (1)

Six high intensity LEDs on each light
Illuminated, high quality rocker switch
Sold individually
Only compatible with the “VC” cab components
Requires Wire Harness (Multiple – 77700-VC5080) or (Single – 77700-VC5081)

See your dealer for more information.

Six high intensity LEDs on each light
Illuminated, high quality rocker switch
Sold in a pair (left & right)
Only compatible with the “VC” cab components
Requires Wire Harness (Multiple – 77700-VC5080) or (Single – 77700-VC5081)

See your dealer for more information.

77700-VC5020 Laminated Glass Windshield (AS1)

Steel framed, laminated glass windshield to provide a front barrier from wind, dust, and rain
Designed to hold together when shattered and prevents glass from breaking into large sharp pieces
Features latches to allow airflow through the cabin
Compatible with Wiper Kit (77700-VC5030)

See your dealer for more information.

Metal canopies are FOPS certified to provide additional protection while keeping the operator and passenger out of the elements
Not compatible with Poly Windshield (clear – K7591-99290) or (tinted – K7591-99260)

See your dealer for more information.

V5008

72″ wide general purpose snow blade with 19″ moldboard height and 12 gauge moldboard thickness
64.5″ plow width @ 30° max angle
Electric lift with manual angle adjustment
Requires Front Heavy Duty Strut Kit (K7591-99180) and General Purpose Front Guard (Black – K7591-97900)

See your dealer for more information.

RTV-X

Build Your RTV-X

RTV-X

How to Use Your RTV-X

Alloy Wheels (optional)

Alloy Wheels (optional)

Built Tough

Built Tough

Capability

Capability

Exceptional Ride

Exceptional Ride

More Comfort

More Comfort

Add-Ons

Know Your RTV-X

General guidance about servicing your Kubota and helping operate at its maximum potential.
