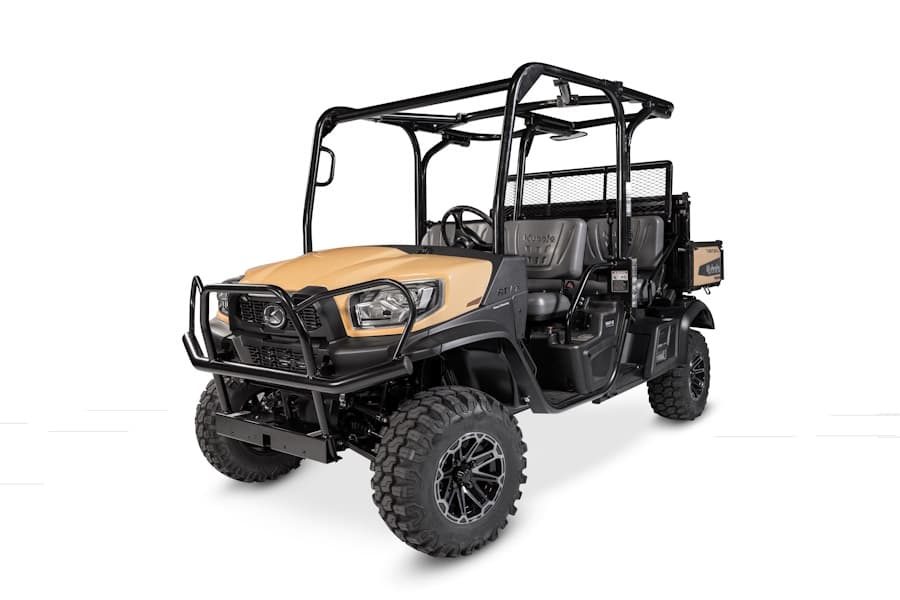

RTV-X CREW / Optional Roof, Windshield, Winch & LED Work Lights
RTV-X CREW
MSRP as low as $22,199.00§
This model is engineered for versatility, effortlessly shifting from carrying cargo in its hydraulic dumping bed to accommodating friends and family with an additional row of seats. It comes equipped with a range of practical features and is driven by a reliable 23.3 HP Kubota diesel engine. Additionally, it includes a standard two-year or 1,000-hour warranty. Choose from colors like Orange, Realtree AP camouflage, and Desert Sand. It stands as North America’s top-selling diesel UTV*.
*Based on Power Products Marketing North American 2024 sales data for the pure utility vehicle (PUV) segment.
Build Your RTV-X CREW
Special Offers
Implement Stand Alone Financing
Implement Stand Alone Financing
Farmer Veteran Coalition (FVC)
Customer instant rebate for Farmer Veteran Coalition members.

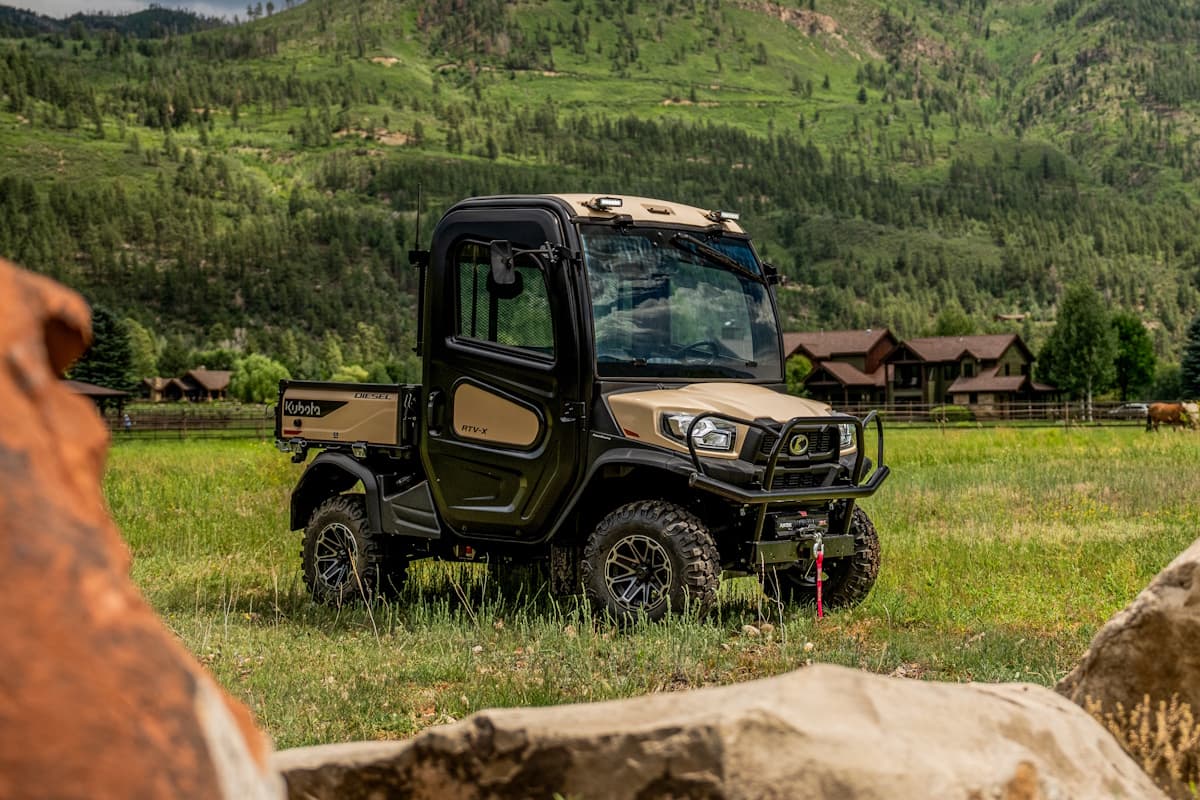

RTV-X SERIES
2.99% A.P.R. for up to 36 Months!
How to Use Your RTV-X CREW

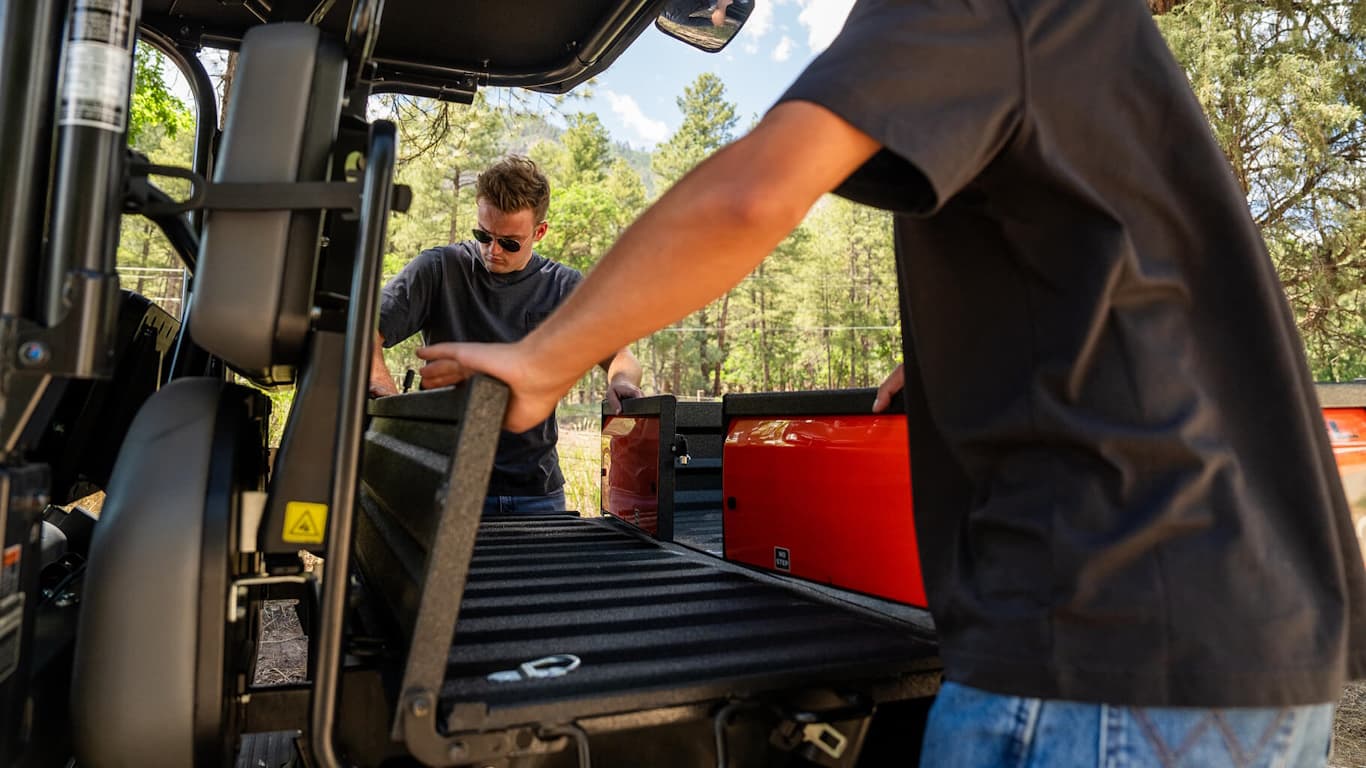

K-Vertible Cargo Bed
The K-Vertible cargo bed offers unparalleled versatility, transforming in less than a minute from a two-seater with high capacity to a roomy four-seater, accommodating your entire team. Maximize your capabilities with this exceptional utility vehicle.

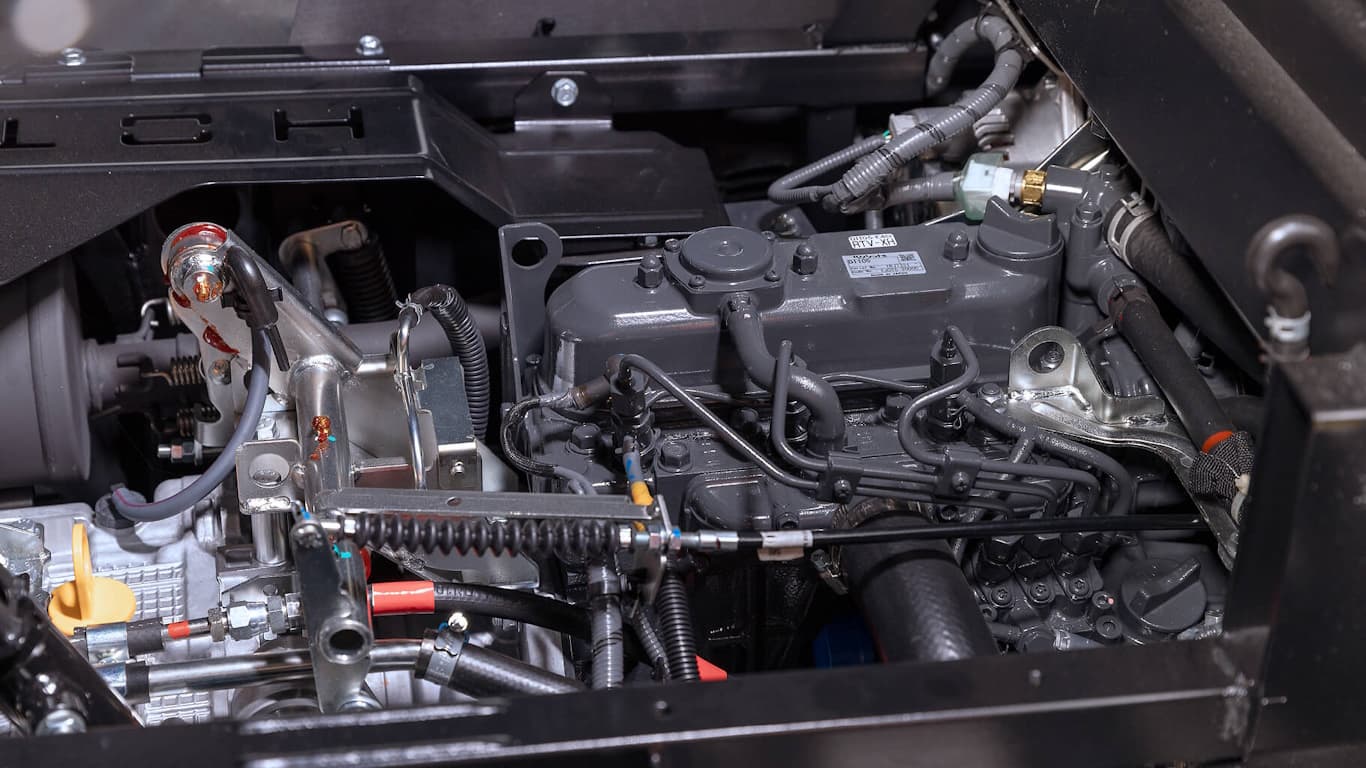

Powerful and Reliable Kubota Diesel Engine
The RTV-X CREW wields the strength to do any job, powered by a 3-cylinder Kubota diesel engine outputting 23.3 HP and 51.4 ft-lbs. of torque. Enjoy a smooth, comfortable ride with the unrivalled strength and reliability you expect from Kubota.

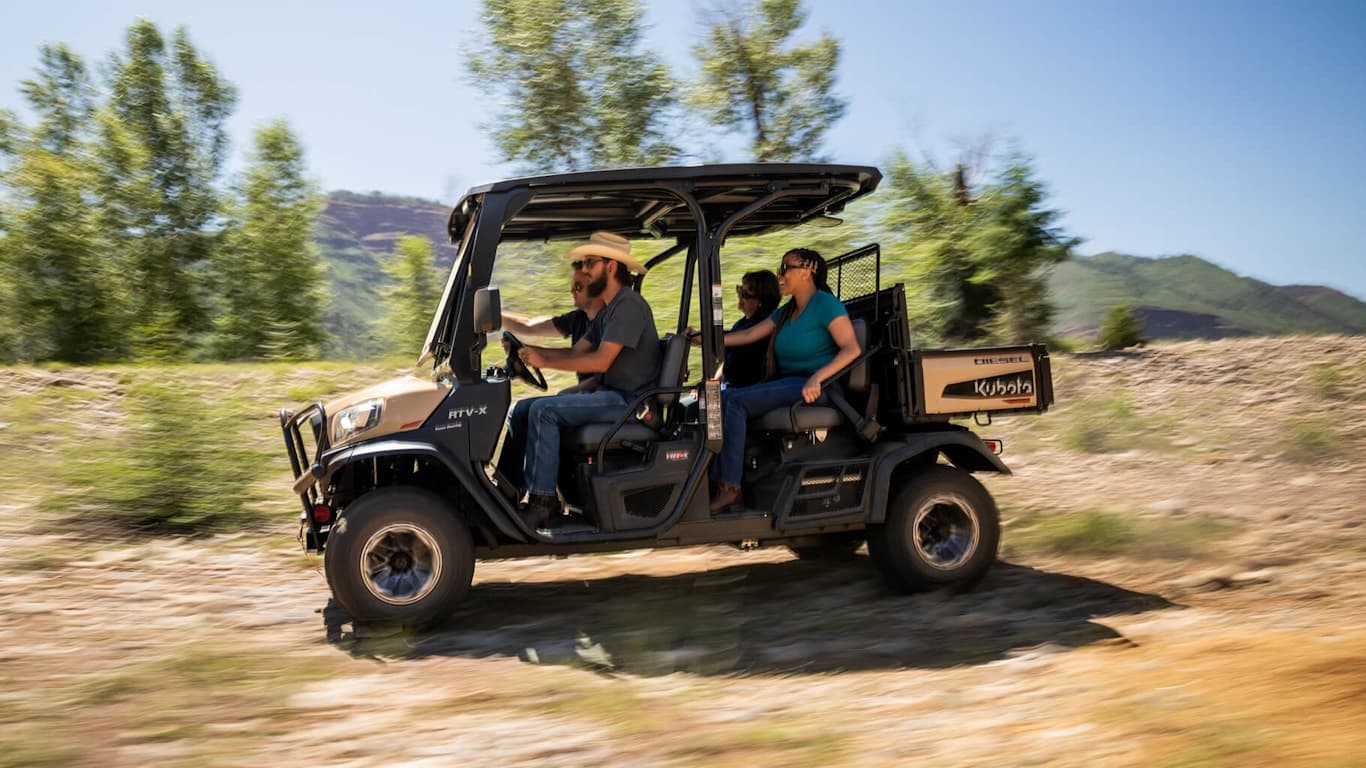

Pure Utility Performance
Haul your load with confidence, knowing the Extra Duty IRS (Independent Rear Suspension) on RTV-X CREW is strong enough to carry it and stable enough to provide a smooth ride, even when fully loaded. Use the 2 inch hitch receiver on the front or back to tow up to 1,300 pounds and haul up to 1,102 pounds in the cargo box.
Ruggedly Redesigned Exterior
The exterior design of the RTV-X CREW has been revamped to feature LED low and high beam headlights, enhancing visibility in low light conditions. You can select your preferred color from three options: Orange, Camo, or the newly introduced Desert Sand.

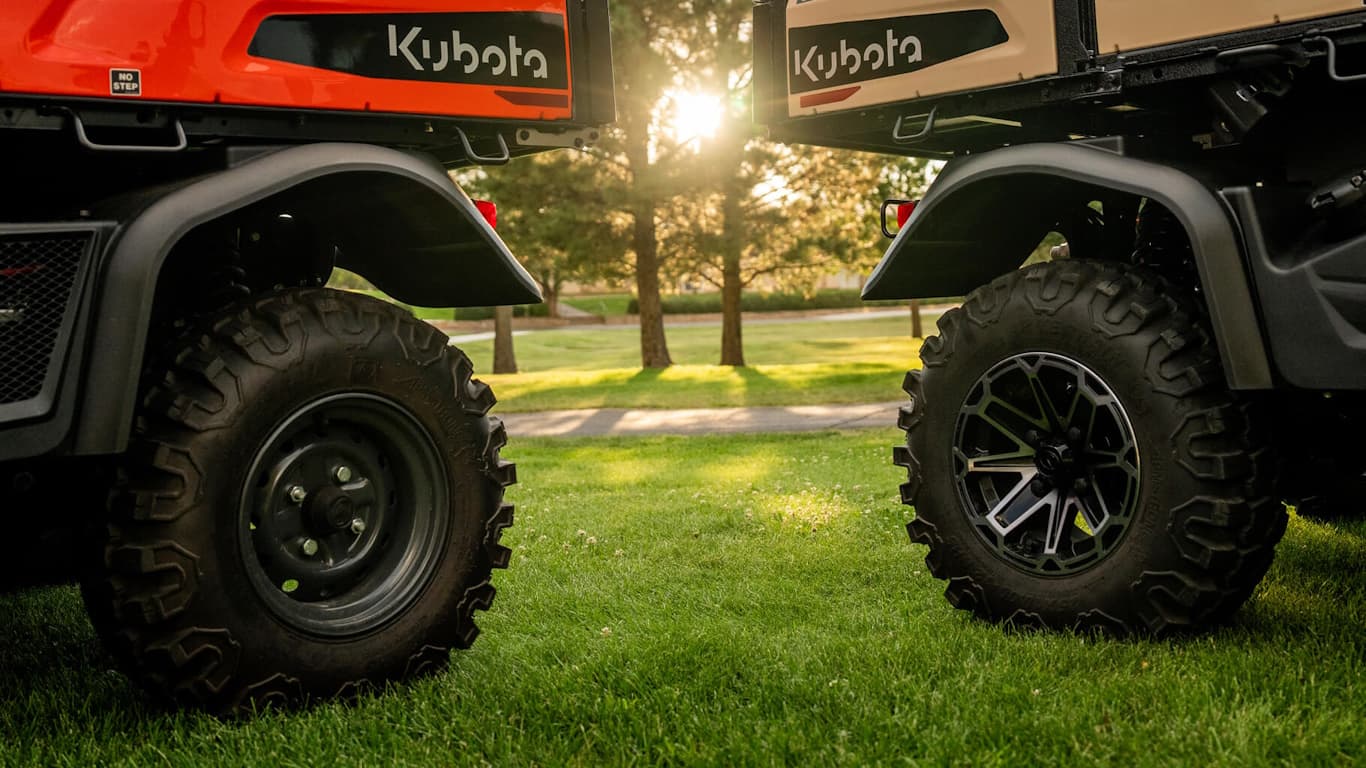

Strong, Durable HDMP and Alloy Wheels
Don’t let any terrain hold you back, thanks to the new heavy-duty multi-purpose tires. As good on loose soil and mud as it is on solid ground, these tires provide essential traction - plus they’re gentle on turf. Elevate the appearance of your RTV-X CREW with the optional black alloy wheels on premium models.

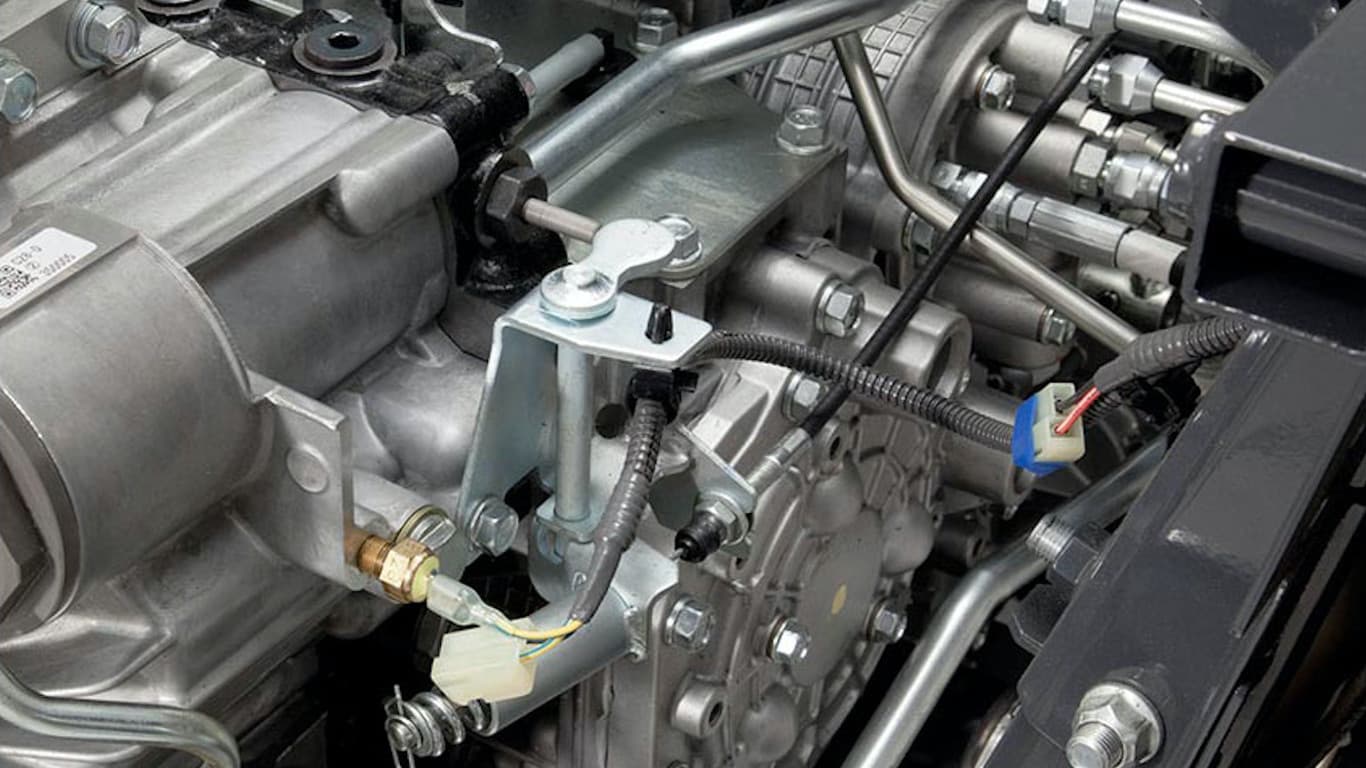

VHT-X Transmission
The VHT-X transmission from Kubota ensures dependable performance across diverse terrains, delivering seamless and robust acceleration. It excels in low-speed operations, offering excellent throttle control, traction, and maneuverability, whether loaded or unloaded. Notably, it eliminates concerns over belts or clutches during demanding tasks.
Add-Ons
V5260
- 60″ wide rotary broom with 18″ diameter poly brushes
- 50 1/2″ width @ 25° max angle
- Reversible broom rotation
- Hydraulic lift and angle adjustment
- Recommend optional Markers (V5250)
- Requires Front Quick Hitch (V5289), Electro-Hydraulic Valve Kit (V5232) & (3rd function – V5233), Auxiliary Hydraulic Pump (X900 – V5271) or (X1120/X1100 (X-Cab) – V5272), Hydraulic Oil Cooler (V5240), Hand Throttle Kit (V5245), & Front Heavy Duty Strut Kit (K7591-99180) or Front Heavy Duty Spring Kit (K7591-99190)
V5291
- 72″ wide V-Blade (straight) with moldboard height 19 1/8″ @ center, 20 1/2″ @ ends, and 3/8″ moldboard thickness
- 66″ V position width and 59″ scoop position width
- Hydraulic lift with down pressure and float
- Hydraulic angle adjustment with built-in relief valves to protect against impact
- Trip cutting edges
- Recommend optional Markers (V5250) and Curb Guards (V5256)
- Requires Front Quick Hitch (V5289), Electro-Hydraulic Valve Kit (V5232) & (3rd function – V5233), Auxiliary Hydraulic Pump (X900 – V5271) or (X1120/X1100 (X-Cab) – V5272), & Front Heavy Duty Strut Kit (K7591-99180) or Front Heavy Duty Spring Kit (K7591-99190)
V5290
- 72″ wide commercial snow blade with 21.75″ moldboard height and 10 gauge moldboard thickness
- 62.4″ plow width @ 30° max angle
- Hydraulic lift with down pressure and float
- Hydraulic angle adjustment with adjustable blade trip springs
- Recommended optional Markers (V5250)
- Requires Front Quick Hitch (V5289), Electro-Hydraulic Valve Kit (V5232), Auxiliary Hydraulic Pump (X900 – V5271) or (X1120/X1100 (X-Cab) – V5272), & Front Heavy Duty Strut Kit (K7591-999180) or Front Heavy Duty Spring Kit (K7591-99190)
V5060
- 72″ wide heavy duty snow blade with 23.5″ moldboard height and 12 gauge moldboard thickness
- 64.5″ plow width @ 30° max angle
- Includes self contained electro-hydraulics for lift and angle adjustment
- Requires Front Heavy Duty Strut Kit (K7591-99180) or Front Heavy Duty Spring Kit (K7591-99190)
V5245
- Required for 60″ Rotary Broom (V5260)
V5276
- Stationary applications only, optional coupler to power aftermarket implements
- Cannot be used to power hydraulic motor applications
One Valve V5273* (RTV-X, X900, X1100 (X-Cab), X1120)
One Valve V5263* (X1130, X1140 (X-Crew))
Two Valve V5274* (RTV-X, X900, X1120, X1100 (X-Cab))
- Required for Hydraulic Angle Kit (V5007) and aftermarket implements
D902 Engine V5271* (X900)
D1105 Engine V5272* (RTV-X, X1100 (X-Cab), X1120)
D1105 Engine V5262* (X1130, X1140 (X-Crew))
- Required for Hydraulic Angle Kit (V5007), hydraulic powered implements, and aftermarket implements
V5007
- Optional hyudraulic angle kit to upgrade 72″ General Duty Front Blade (V5008) to hydraulic angle adjustment
- Requires Auxiliary Hydraulic Pump (X900 – V5271), (X1120/X1100 (X-Cab) – V5272), or (X1140 (X-Crew) – V5262) and Auxiliary Hydraulic Valve: One Valve (X900/X1120/X1100 (X-Cab) – V5273), Two Valve (X900/X1120/X1100 (X-Cab) – V5274), or One Valve (X1140 (X-Crew) – V5263)
V5295A
- 78″ wide K-connect V-blade (straight) with moldboard height 20″ @ center, 25 3/4″ @ ends, and 0.075″ moldboard thickness
- 69 1/2″ V position width and 66″ scoop position width
- Hydraulic lift with down pressure and float
- Hydraulic angle adjustment with built-in relief valves to protect against impact
- Trip cutting edges
- Reinforced with 3 vertical ribs, 1 diagonal ribs, and C-channel on each wing
- New curvature allows for rolling of snow eliminating the need for a deflector and includes markers and skid shoes standard
- Recommend optional Curb Guards (V5281)
- Requires 4 Point K-Connect (V5293) and Front Heavy Duty Strut Kit (K7591-99180) or Front Heavy Duty Spring Kit (K7591-99190)
- Compatible with PTO Drive K-Connect (V5299)
V5294A
- 78″ wide K-connect snow blade with 24″ moldboard height and 0.075″ moldboard thickness
- 68″ plow width @ 30° max angle covers the width of the RTV-X
- Hydraulic lift with down pressure and float
- Hydraulic angle adjustment with two spring trip protection
- Reinforced with 4 vertical ribs, 2 diagonal ribs, and C-channels
- New curvature allows for rolling of snow eliminating the need for a deflector and includes markers and skid shoes standard
- Recommend optional Curb Guards (V5281)
- Requires 4 Point K-Connect (V5293) and Front Heavy Duty Strut Kit (K7591-99180) or Front Heavy Duty Spring Kit (K7591-99190)
- Compatible with PTO Drive K-Connect (V5299)
V5285
- Replacement skid shoes for 78″ Straight Blade (V5294A) and 78″ V-Blade (V5295A)
V5281
- Optional curb guards to protect the corners of 78″ Straight Blade (V5294A) and 78″ V-Blade (V5295A) from incidental curb damage
Rubber Cutting Edge – V5287
- Optional rubber cutting edge for 78″ Straight Blade (V5294A)
Plastic Cutting Edge – V5288
- Optional plastic cutting edge for 78″ Straight Blade (V5294A)
Plastic Cutting Edge – V5284
- Optional plastic cutting edge for 78″ V-Blade (V5295A)
77700-V5278 (V5278)
- Optional Front guard adapter for 4 Point K-Connect (V5293) to reinstall front guard when front K-Connect implements are put away for the season
V5298
- Add a brush bar and 2 rectangular LED worklights to the 4 Point K-Connect (V5293)
- Requires 4 Point K-Connect (V5293)
V5293A
- 4 point quick hitch system with a power unit to provide an independent 3 function hydraulic system
- Used to quick attached 78″ Straight Blade (V5294A) or 78″ V-Blade (V5295A)
60 Gallon RTV Spot Sprayer – 77700-12145
- 60 PSI gauge
- 5.0 GPM demand pump
- RTV clamps
- Polyethylene tank with mould-in drain with cap
- 25′ hose with spray gun
- Deluxe pistol grip handgun sprays up to 25′ vertical and 35′ horizontal
- Large 5″ fill lid with tether
- 8′ wiring harness with battery clips
- Add a Boom – The 77700-09601

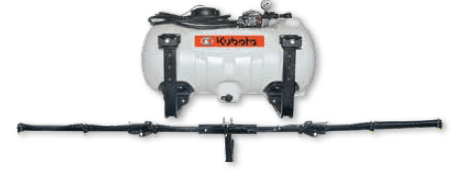

40 Gallon RTV Sprayer with Hitch Mount Boom – 77700-08964
- Unique 2″ receiver mount boom provides 300° of adjustability
- 7 nozzle breakaway boom coverage up to 140″
- Nozzles include check valve
- Chemically-resistant polyethylene tank
- 2.2 GPM pump
- 60 PSI gauge
- Deluxe 18″ sprayer wand
- Adjustable relief with gauge
25 Gallon Sprayer – 77700-08963
- 3 nozzle boomless spray pattern allows for 140″ (11.6′) of coverage
- Chemically-resistant polyethylene tank
- 2.2 GPM pump
- 60 PSI gauge
- Deluxe 18″ sprayer wand
- Adjustable relief with gauge
- Multi-purpose sprayer fits most RTV’s, ATV’s & UTV’s
Sprayer Boom – 77700-09601
- Sprayer boom for Kubota 40 gallon sprayer
- Compatible with many other sprayers!
77700-12846
- Dynamic 20W portable speaker to take the music with you
- Powerful 57mm driver for high definition sound clarities
- Built-in equalizer allows mode adjustment for better sound output
- Built-in microphone to receive phone calls
- Durable construction, impact-proof & water-resistasnt ABS body with rubber coating & IPX6 rating
- Durable nylon composite clamps keep speaker secure
- Designed for fast and easy attachment/removal
- Clamps fit roll bars 1.625″ to 2″ diameter
77700-10694
- Made from heavy duty, ballistic nylon
- Easily and quickly attaches to your Kubota RTV
- Includes strap kit to attach to your RopsRackPack® and buckles for attaching to your Ultimate Rack
- Gear Bag is 18″ long x 4″ wide x 11″ tall
9′ x 2″ 77700-10680
18′ x 2″ 77700-10681
- Dependable – a ShockStrap® provides superior shock absorption without coming loose – keeps tension on the strap
- Safety Strap – a backup strap in case the ShockStrap® is compromised
- Durable – made from our proprietary formula that is not affected by most chemicals, sunlight, oil, salt water, fungus or moisture
- Rust Resistant – hooks and buckle are yellow zinc coated, which lasts 8 to 10 times longer than chrome plating
- Soft Loop – flexibility to always find a way to secure your load
77700-10709
- Secures fire extinguishers up to 3.5″ in diameter
- Universal design mounts to round tube roll cages up to 2.25″
- Patented low-profile mounting
- Adjustable clamps secure most fire extinguishers
- Fire extinguisher not included
77700-08977
- 1-1/4″ x 12′ tow strap with loops and shackle
- 5,000 lbs. break strength
- Forged shackle
- Reinforced attachment loops
77700-08978
- 34″ x 34″ – stretches to 60″ x 60″
- Heavy duty plastic hooks prevent scratching
- Finger holes in hooks for safety and easy hook up
- Weather Resistant
- Secures odd, bulky shapes
- Adjustable hooks
- Fits most UTV/RTV Bed Boxes
HDWS Tire and Wheel Assembly – K7591-19312 (ARTV5203)
X900, X1120, X1100 (X-Cab), X1140 (X-Crew)
ATV Tire & Wheel Assembly – Left K7591-19112 (ARTV5201L) | Right K7591-19162 (ARTV5201R)
X900, X1120, X1100 (X-Cab), X1140 (X-Crew)
TURF Tire & Wheel Assembly – K7591-19613 (ARTV5205)
X900, X1120, X1100 (X-Cab)
HDMP Tire Assembly – Alloy Wheel Assy: K7121-19820 | Steel Wheel Assy: K7121-19300
RTV-X (X-Cab and X-Crew)

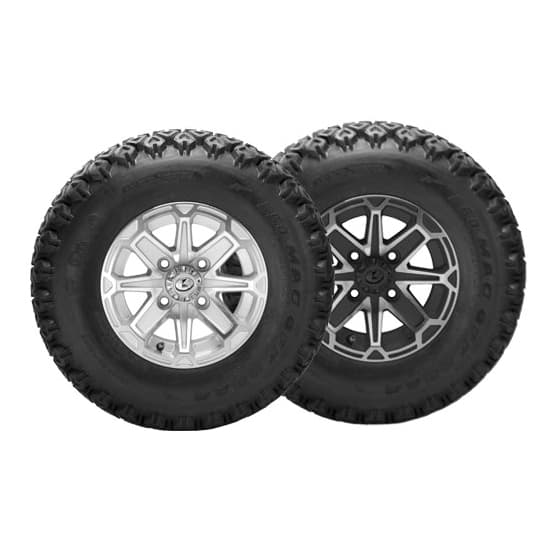

Tire & Alloy Wheel Assembly
X900, X1120, X1100 (X-Cab), X1140 (X-Crew)
- Black ATV Left: K7591-99850 (ARTV5212L)
- Black ATV Right: K7591-99860 (ARTV5212R)
- Black HDWS: K7591-99800 (ARTV5214)
- Silver ATV Left: K7591-99830 (ARTV5211L)
- Silver ATV Right: K7591-99840 (ARTV5211R)
- Silver HDWS: K7591-99790 (ARTV5213)

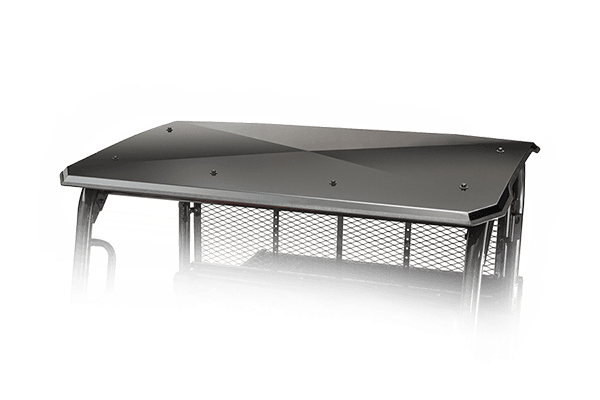

- Metal canopies are FOPS certified to provide additional protection while keeping the operator and passenger out of the elements
- Not compatible with Poly Windshield (clear – K7591-99290) or (tinted – K7591-99260)
V5008
- 72″ wide general purpose snow blade with 19″ moldboard height and 12 gauge moldboard thickness
- 64.5″ plow width @ 30° max angle
- Electric lift with manual angle adjustment
- Requires Front Heavy Duty Strut Kit (K7591-99180) and General Purpose Front Guard (Black – K7591-97900)
