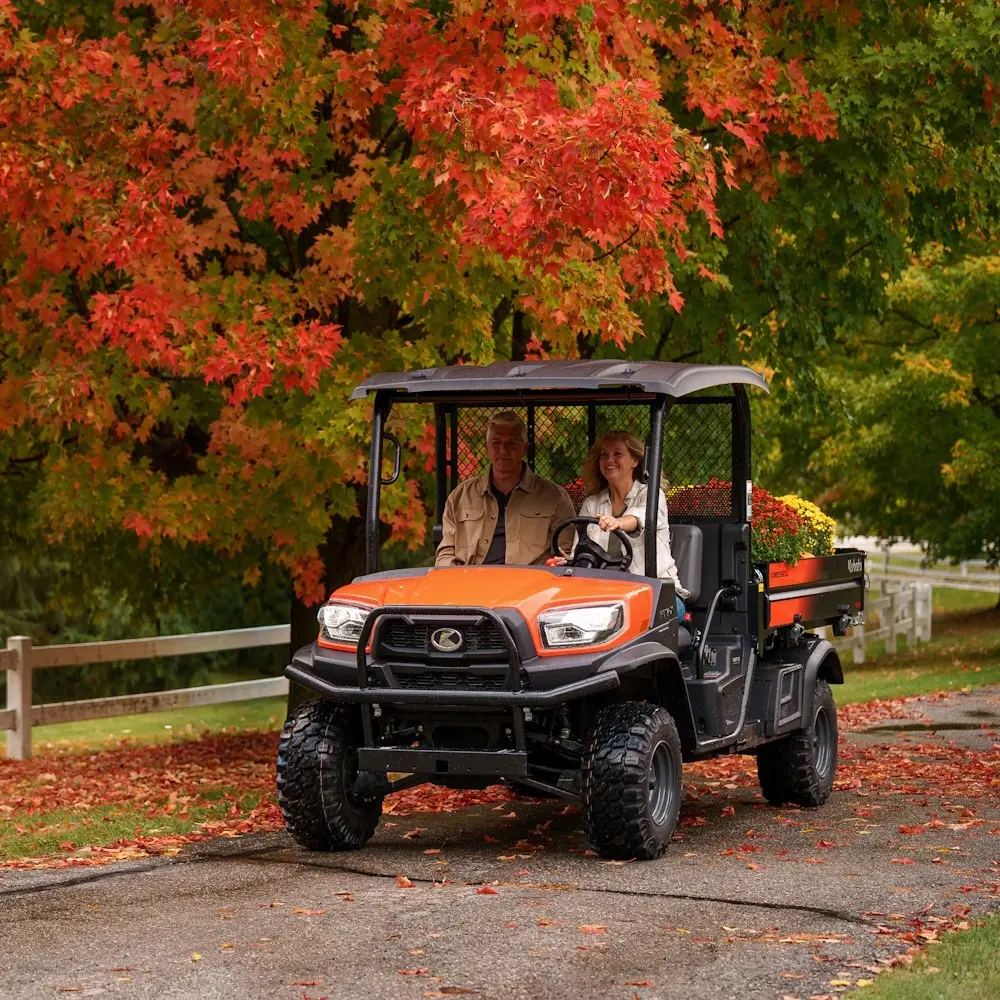

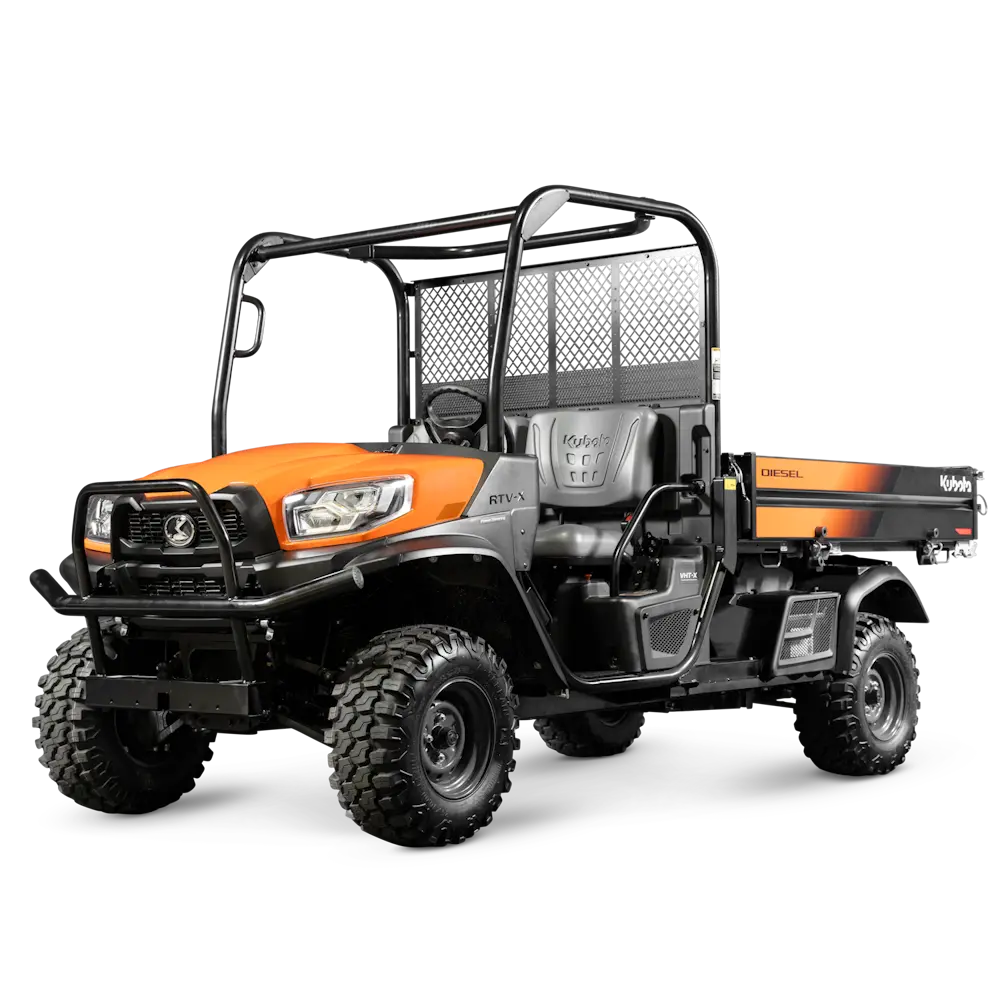

RTV-X LONG BED

1. Pick a canopy
   • Metal FOPS Canopy (Black – VC5044)
   • Plastic Canopy – VC5043
2. Pick a windshield
   • Tempered Glass – VC5025
   • Laminated Glass – VC5020
   • Sport Roof – 77700-VP0800A
3. Cab enclosure
   • Metal Door Set – VC5090
   • Glass Rear Panel – VC5040
4. Add mid panel to enclose seat configuration (optional)
   • Mid Panel – Steel with Sliding Windows (VC5046)
   • Mid Panel – Vinyl (VC5047)

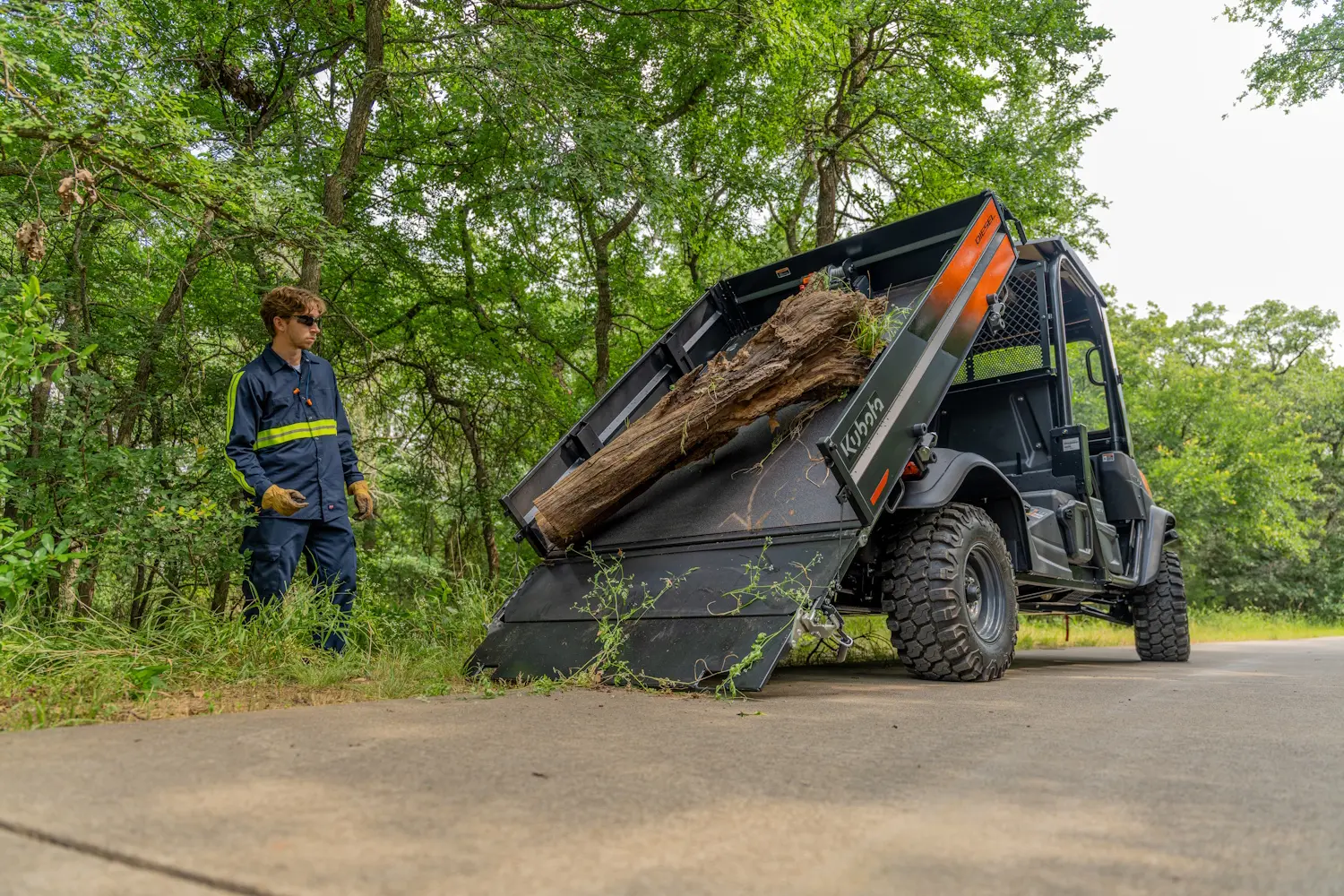

K7921-99590

• Allows the tailgate to rest against the ground when the bed is fully raised
• Folds out of the way when not in use

K7921-99580

• Comes with a wireless winch controller
• Has a 750lb capacity

K7921-99570

• Two 6″ LED lights

K7921-99560

• Designed to mount underneath the cargo bed
• Includes 2 plastic lockable storage boxes (one for each side)s

V5260

• 60″ wide rotary broom with 18″ diameter poly brushes
• 50 1/2″ width @ 25° max angle
• Reversible broom rotation
• Hydraulic lift and angle adjustment
• Recommend optional Markers (V5250)
• Requires Front Quick Hitch (V5289), Electro-Hydraulic Valve Kit (V5232) & (3rd function – V5233), Auxiliary Hydraulic Pump (X900 – V5271) or (X1120/X1100 (X-Cab) – V5272), Hydraulic Oil Cooler (V5240), Hand Throttle Kit (V5245), & Front Heavy Duty Strut Kit (K7591-99180) or Front Heavy Duty Spring Kit (K7591-99190)

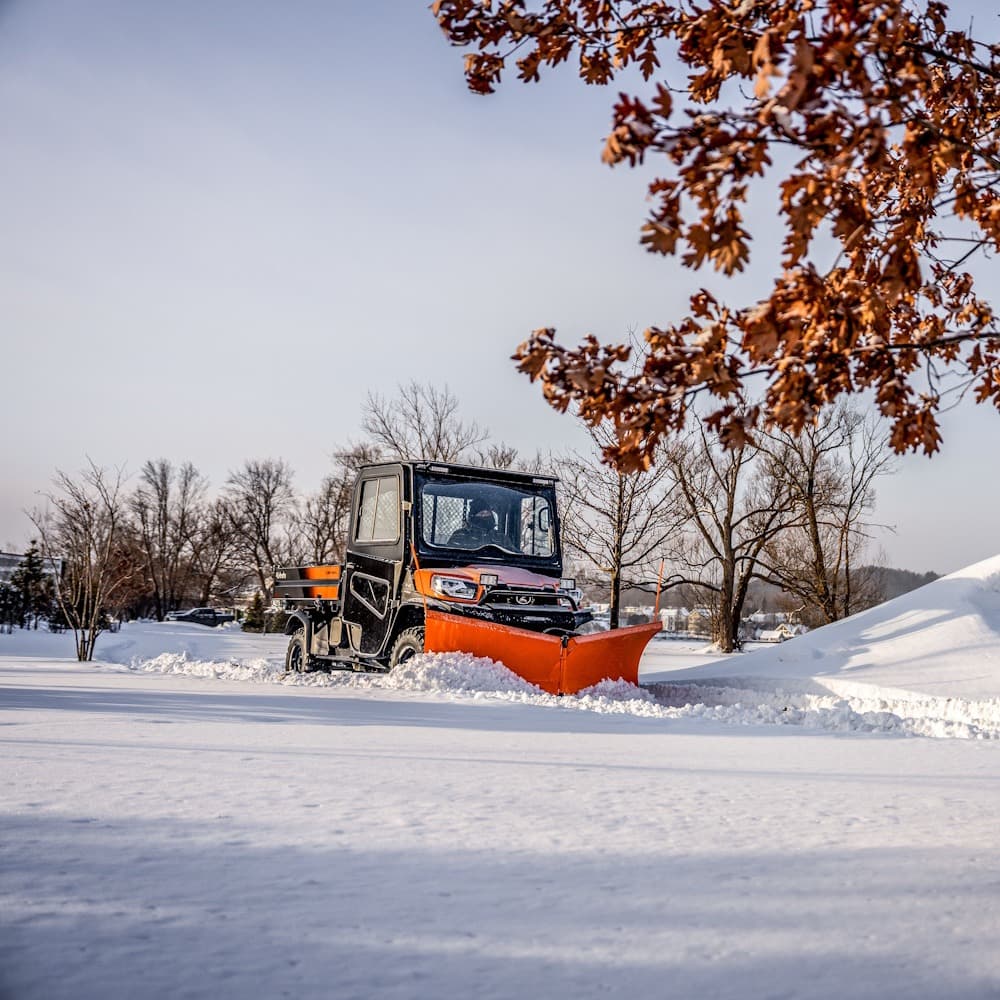

V5291

• 72″ wide V-Blade (straight) with moldboard height 19 1/8″ @ center, 20 1/2″ @ ends, and 3/8″ moldboard thickness
• 66″ V position width and 59″ scoop position width
• Hydraulic lift with down pressure and float
• Hydraulic angle adjustment with built-in relief valves to protect against impact
• Trip cutting edges
• Recommend optional Markers (V5250) and Curb Guards (V5256)
• Requires Front Quick Hitch (V5289), Electro-Hydraulic Valve Kit (V5232) & (3rd function – V5233), Auxiliary Hydraulic Pump (X900 – V5271) or (X1120/X1100 (X-Cab) – V5272), & Front Heavy Duty Strut Kit (K7591-99180) or Front Heavy Duty Spring Kit (K7591-99190)

V5290

• 72″ wide commercial snow blade with 21.75″ moldboard height and 10 gauge moldboard thickness
• 62.4″ plow width @ 30° max angle
• Hydraulic lift with down pressure and float
• Hydraulic angle adjustment with adjustable blade trip springs
• Recommended optional Markers (V5250)
• Requires Front Quick Hitch (V5289), Electro-Hydraulic Valve Kit (V5232), Auxiliary Hydraulic Pump (X900 – V5271) or (X1120/X1100 (X-Cab) – V5272), & Front Heavy Duty Strut Kit (K7591-999180) or Front Heavy Duty Spring Kit (K7591-99190)

V5060

• 72″ wide heavy duty snow blade with 23.5″ moldboard height and 12 gauge moldboard thickness
• 64.5″ plow width @ 30° max angle
• Includes self contained electro-hydraulics for lift and angle adjustment
• Requires Front Heavy Duty Strut Kit (K7591-99180) or Front Heavy Duty Spring Kit (K7591-99190)

V5245

• Required for 60″ Rotary Broom (V5260)

V5276

• Stationary applications only, optional coupler to power aftermarket implements
• Cannot be used to power hydraulic motor applications

One Valve V5273* (RTV-X, X900, X1100 (X-Cab), X1120)
One Valve V5263* (X1130, X1140 (X-Crew))
Two Valve V5274* (RTV-X, X900, X1120, X1100 (X-Cab))

• Required for Hydraulic Angle Kit (V5007) and aftermarket implements

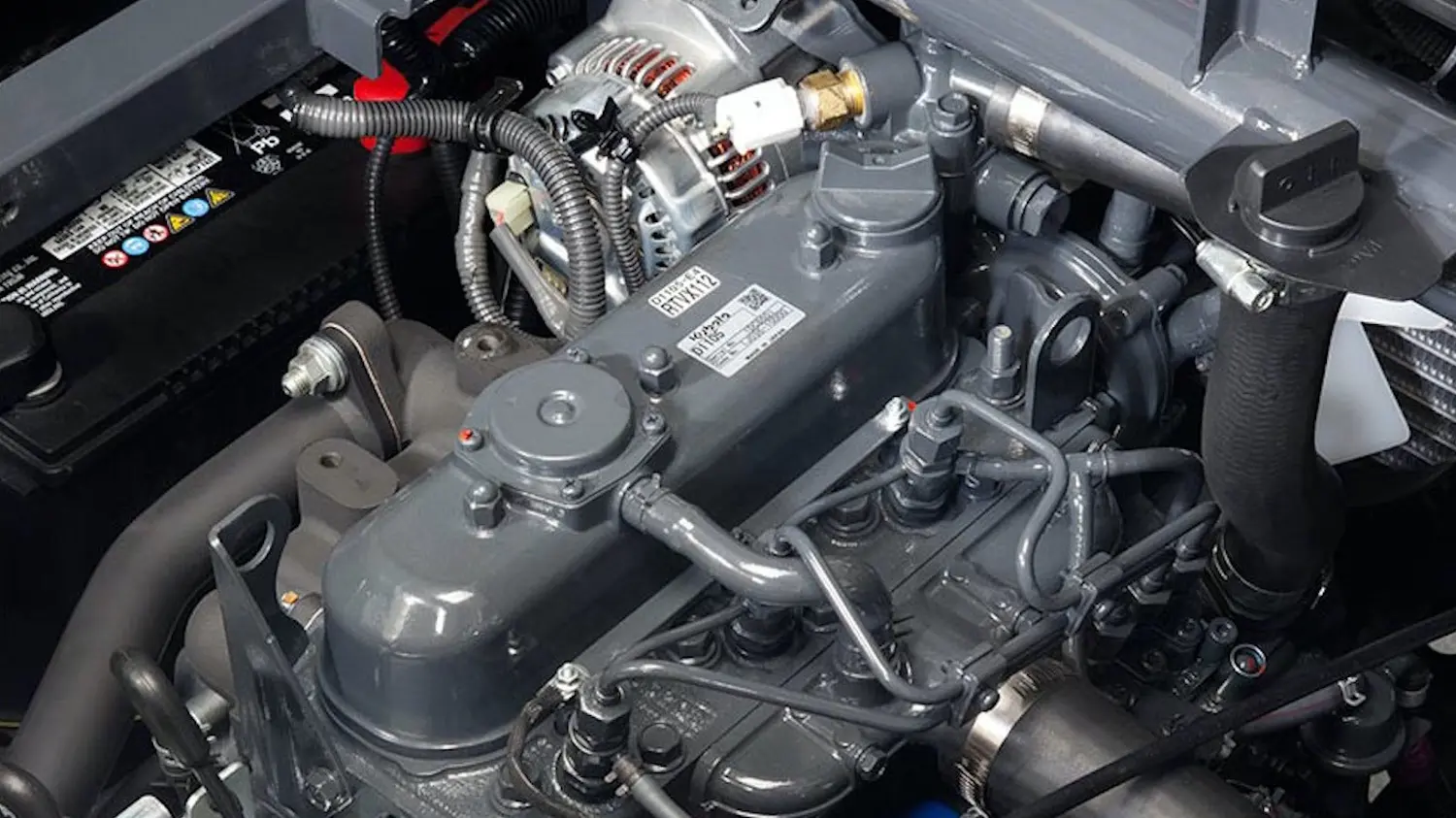

D902 Engine V5271* (X900)
D1105 Engine V5272* (RTV-X, X1100 (X-Cab), X1120)
D1105 Engine V5262* (X1130, X1140 (X-Crew))

• Required for Hydraulic Angle Kit (V5007), hydraulic powered implements, and aftermarket implements

V5007

• Optional hyudraulic angle kit to upgrade 72″ General Duty Front Blade (V5008) to hydraulic angle adjustment
• Requires Auxiliary Hydraulic Pump (X900 – V5271), (X1120/X1100 (X-Cab) – V5272), or (X1140 (X-Crew) – V5262) and Auxiliary Hydraulic Valve: One Valve (X900/X1120/X1100 (X-Cab) – V5273), Two Valve (X900/X1120/X1100 (X-Cab) – V5274), or One Valve (X1140 (X-Crew) – V5263)

77700-V5255 (V5255)

• Optional front guard adapter for Front Quick Hitch (V5289) to reinstall front guard when front quick hitch implements are put away for the season

V5289

• Required quick hitch system designed for 72″ Commercial Straight Blade (V5290), 72″ V-Plow Blade (V5291) and 60″ Rotary Broom (V5260) for easy implement changes

V5295A

• 78″ wide K-connect V-blade (straight) with moldboard height 20″ @ center, 25 3/4″ @ ends, and 0.075″ moldboard thickness
• 69 1/2″ V position width and 66″ scoop position width
• Hydraulic lift with down pressure and float
• Hydraulic angle adjustment with built-in relief valves to protect against impact
• Trip cutting edges
• Reinforced with 3 vertical ribs, 1 diagonal ribs, and C-channel on each wing
• New curvature allows for rolling of snow eliminating the need for a deflector and includes markers and skid shoes standard
• Recommend optional Curb Guards (V5281)
• Requires 4 Point K-Connect (V5293) and Front Heavy Duty Strut Kit (K7591-99180) or Front Heavy Duty Spring Kit (K7591-99190)
• Compatible with PTO Drive K-Connect (V5299)

V5294A

• 78″ wide K-connect snow blade with 24″ moldboard height and 0.075″ moldboard thickness
• 68″ plow width @ 30° max angle covers the width of the RTV-X
• Hydraulic lift with down pressure and float
• Hydraulic angle adjustment with two spring trip protection
• Reinforced with 4 vertical ribs, 2 diagonal ribs, and C-channels
• New curvature allows for rolling of snow eliminating the need for a deflector and includes markers and skid shoes standard
• Recommend optional Curb Guards (V5281)
• Requires 4 Point K-Connect (V5293) and Front Heavy Duty Strut Kit (K7591-99180) or Front Heavy Duty Spring Kit (K7591-99190)
• Compatible with PTO Drive K-Connect (V5299)

V5285

• Replacement skid shoes for 78″ Straight Blade (V5294A) and 78″ V-Blade (V5295A)

V5281

• Optional curb guards to protect the corners of 78″ Straight Blade (V5294A) and 78″ V-Blade (V5295A) from incidental curb damage

Rubber Cutting Edge – V5287

• Optional rubber cutting edge for 78″ Straight Blade (V5294A)

Plastic Cutting Edge – V5288

• Optional plastic cutting edge for 78″ Straight Blade (V5294A)

Plastic Cutting Edge – V5284

• Optional plastic cutting edge for 78″ V-Blade (V5295A)

77700-V5278 (V5278)

• Optional Front guard adapter for 4 Point K-Connect (V5293) to reinstall front guard when front K-Connect implements are put away for the season

V5298

• Add a brush bar and 2 rectangular LED worklights to the 4 Point K-Connect (V5293)
• Requires 4 Point K-Connect (V5293)

V5293A

• 4 point quick hitch system with a power unit to provide an independent 3 function hydraulic system
• Used to quick attached 78″ Straight Blade (V5294A) or 78″ V-Blade (V5295A)

60 Gallon RTV Spot Sprayer – 77700-12145

• 60 PSI gauge
• 5.0 GPM demand pump
• RTV clamps
• Polyethylene tank with mould-in drain with cap
• 25′ hose with spray gun
• Deluxe pistol grip handgun sprays up to 25′ vertical and 35′ horizontal
• Large 5″ fill lid with tether
• 8′ wiring harness with battery clips
• Add a Boom – The 77700-09601

40 Gallon RTV Sprayer with Hitch Mount Boom – 77700-08964

• Unique 2″ receiver mount boom provides 300° of adjustability
• 7 nozzle breakaway boom coverage up to 140″
• Nozzles include check valve
• Chemically-resistant polyethylene tank
• 2.2 GPM pump
• 60 PSI gauge
• Deluxe 18″ sprayer wand
• Adjustable relief with gauge

25 Gallon Sprayer – 77700-08963

• 3 nozzle boomless spray pattern allows for 140″ (11.6′) of coverage
• Chemically-resistant polyethylene tank
• 2.2 GPM pump
• 60 PSI gauge
• Deluxe 18″ sprayer wand
• Adjustable relief with gauge
• Multi-purpose sprayer fits most RTV’s, ATV’s & UTV’s

Sprayer Boom – 77700-09601

• Sprayer boom for Kubota 40 gallon sprayer
• Compatible with many other sprayers!

77700-12846

• Dynamic 20W portable speaker to take the music with you
• Powerful 57mm driver for high definition sound clarities
• Built-in equalizer allows mode adjustment for better sound output
• Built-in microphone to receive phone calls
• Durable construction, impact-proof & water-resistasnt ABS body with rubber coating & IPX6 rating
• Durable nylon composite clamps keep speaker secure
• Designed for fast and easy attachment/removal
• Clamps fit roll bars 1.625″ to 2″ diameter

77700-10694

• Made from heavy duty, ballistic nylon
• Easily and quickly attaches to your Kubota RTV
• Includes strap kit to attach to your RopsRackPack® and buckles for attaching to your Ultimate Rack
• Gear Bag is 18″ long x 4″ wide x 11″ tall

9′ x 2″ 77700-10680
18′ x 2″ 77700-10681

• Dependable – a ShockStrap® provides superior shock absorption without coming loose – keeps tension on the strap
• Safety Strap – a backup strap in case the ShockStrap® is compromised
• Durable – made from our proprietary formula that is not affected by most chemicals, sunlight, oil, salt water, fungus or moisture
• Rust Resistant – hooks and buckle are yellow zinc coated, which lasts 8 to 10 times longer than chrome plating
• Soft Loop – flexibility to always find a way to secure your load

77700-10709

• Secures fire extinguishers up to 3.5″ in diameter
• Universal design mounts to round tube roll cages up to 2.25″
• Patented low-profile mounting
• Adjustable clamps secure most fire extinguishers
• Fire extinguisher not included

77700-08977

• 1-1/4″ x 12′ tow strap with loops and shackle
• 5,000 lbs. break strength
• Forged shackle
• Reinforced attachment loops

77700-08978

• 34″ x 34″ – stretches to 60″ x 60″
• Heavy duty plastic hooks prevent scratching
• Finger holes in hooks for safety and easy hook up
• Weather Resistant
• Secures odd, bulky shapes
• Adjustable hooks
• Fits most UTV/RTV Bed Boxes

HDWS Tire and Wheel Assembly – K7591-19312 (ARTV5203)
X900, X1120, X1100 (X-Cab), X1140 (X-Crew)

ATV Tire & Wheel Assembly – Left K7591-19112 (ARTV5201L) | Right K7591-19162 (ARTV5201R)
X900, X1120, X1100 (X-Cab), X1140 (X-Crew)

TURF Tire & Wheel Assembly – K7591-19613 (ARTV5205)
X900, X1120, X1100 (X-Cab)

HDMP Tire Assembly – Alloy Wheel Assy: K7121-19820 | Steel Wheel Assy: K7121-19300
RTV-X (X-Cab and X-Crew)

Tire & Alloy Wheel Assembly
X900, X1120, X1100 (X-Cab), X1140 (X-Crew)

• Black ATV Left: K7591-99850 (ARTV5212L)
• Black ATV Right: K7591-99860 (ARTV5212R)
• Black HDWS: K7591-99800 (ARTV5214)
• Silver ATV Left: K7591-99830 (ARTV5211L)
• Silver ATV Right: K7591-99840 (ARTV5211R)
• Silver HDWS: K7591-99790 (ARTV5213)

Front Wheels – V5225
Rear Wheels – V5226

Front – V5238
Rear – V5239

• IP68 waterproofing system standard
• Redesigned & improved brake system
• Improved and redesigned clutch system
• Engineered system which outperforms the competition
• Limited lifetime mechanical & 3 year electrical warranty
• 4-Seater winches for RTV-X1140 only

• Protect your tail light from damaging debris by installing this Tail Lamp Guard Kit

• Reduce potential damage to the rear CV Joint with this CV Joint Guard

• Help protect your front CV Joint from rocks and stumps with this CV Joint Guard

• Includes painted switch panel for up to five additional accessory switches
• Panel plugs for un-used positions
• Six position fuse block with vinyl dust cover for circuit and fuse protectio

• Increases operator visibility
• Cab mirrors sold in a pair (left & right)
• ROPS mirror sold individually)

• Six high intensity LEDs on each light
• Illuminated, high quality rocker switch
• Sold individually
• Only compatible with the “VC” cab components
• Requires Wire Harness (Multiple – 77700-VC5080) or (Single – 77700-VC5081)

• Six high intensity LEDs on each light
• Illuminated, high quality rocker switch
• Sold in a pair (left & right)
• Only compatible with the “VC” cab components
• Requires Wire Harness (Multiple – 77700-VC5080) or (Single – 77700-VC5081)

• Steel framed, laminated glass windshield to provide a front barrier from wind, dust, and rain
• Designed to hold together when shattered and prevents glass from breaking into large sharp pieces
• Features latches to allow airflow through the cabin
• Compatible with Wiper Kit (77700-VC5030)

• Metal canopies are FOPS certified to provide additional protection while keeping the operator and passenger out of the elements
• Not compatible with Poly Windshield (clear – K7591-99290) or (tinted – K7591-99260)

V5008

• 72″ wide general purpose snow blade with 19″ moldboard height and 12 gauge moldboard thickness
• 64.5″ plow width @ 30° max angle
• Electric lift with manual angle adjustment
• Requires Front Heavy Duty Strut Kit (K7591-99180) and General Purpose Front Guard (Black – K7591-97900)
