M62

M62

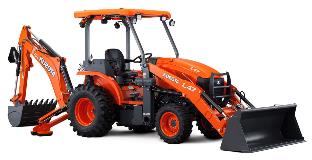

Engineered to save you time and effort on every job. Packed full of upgraded features, the M62 comes equipped with a 63 HP Kubota Tier 4 Final diesel engine, Kubota front loader with 3,960 lbs. of lift capacity and powerful Kubota backhoe with 169.8 in. max digging depth. It's one powerful combination ideal for a wide range of landscaping, construction and contracting jobs.

Features



Headlights/Work Lights

We've installed headlights and work lights to the canopy and ROPS respectively. The height of the headlights provides greater ground coverage during night work. The rear-mounted work lights shine brightly for backhoe or 3-point hitch work.


3-Point Hitch

To give you the ability to take on bigger jobs, the lifting capacity will allow you to attach a wider variety of implements and larger implements, making you more productive.


Integrated Main Frame

The reinforced integrated main frame on the TLB series is performance matched to the loader and backhoe. This means that the structural integrity of the tractor is uncompromisingly sound and built to take on the stresses of repetitive loader and backhoe work.


Engine

Tackle the toughest jobs with the confidence of Kubota’s high power, high torque rise, low noise, low vibration and cleaner Tier 4 emissions. Easy to start on cold mornings, this high output, liquid-cooled engine will prove both dependable and durable for years to come.


Independent PTO

The independent PTO keeps stopping to a minimum. With this handy feature, you can stay productive by engaging and disengaging the rear PTO without ever having to stop the tractor.


Four Wheel Drive

Combined with the differential lock for the front axle, the standard 4WD ensures virtually unstoppable performance under difficult conditions or on varying terrain.


Slanted Hood Design

The slanted boom and hood of the Kubota TLB improves visibility over the hood. This helps you change attachments and get back to work quickly; it also allows increased productivity in tight areas.

Most Popular Implements



Front Loader (TL1800)

• 10'6" lifting height
• 3,960 lbs. lifting capacity
• Hydraulic circuit-switching lever
• Throttle-up switch
• Mechanical 2-lever quick coupler
• Hydraulic 2-lever quick coupler (optional)
• Slanted boom design
• Brace-less frame
• Auto leveling valve
• Boom stopper (meets OSHA1926.600)
• Bucket level indicator
• 3rd function valve (optional)
• Protected hoses

Backhoe (BT1400)

• 14' digging depth
• 6,572 lbs. of bucket breakout force
• Quick hitch (optional)
• Flip-over stabilizer pad
• Quick-mount attach/detach
• Backhoe crawling mode
• Auxiliary hydraulic control valve and hydraulic thumb
• Construction-grade hydraulic cylinders
• Enclosed hydraulic hoses
• Stabilizer guard
• Reversible seat
• Curved backhoe boom

Box Scrapers

Land Pride Box Scrapers are ideal in ripping, leveling, finish grading, and back filling applications at outdoor arenas and building sites, or for maintenance operations on farms and ranches, as well as dirt and gravel lanes or roadways.

Land Pride Performance Matched Attachments/Implements



Grading Scrapers

Land Pride Grading Scrapers perform maintenance on gravel surfaces, eliminating potholes, washboards, and even creating and maintaining a crown with ease. Applications range from landscaping, farms and ranches, hunting camps, large estates, sod farms, and even construction sites depending on model selection.

Land Pride Performance Matched Attachments/Implements



Rotary Tillers

Land Pride Rotary Tillers till soil for seedbed or planting preparation and have uses in residential landscaping and gardening, nurseries, farms, municipalities, golf courses and commercial applications depending on model selection.

Land Pride Performance Matched Attachments/Implements



Rotary Cutters

Land Pride Rotary Cutters clear grass, weeds, and varying sizes of brush depending on model selection. Applications include  rural acreage, open spaces, row crops, roadside maintenance, and general farm maintenance.

Land Pride Performance Matched Attachments/Implements



Grooming Mowers

Land Pride Grooming Mowers provide excellent cut quality on well maintained lawn and turf grasses Applications range from homeowners, parks, and golf courses up to heavy commercial use depending on model selection.

Land Pride Performance Matched Attachments/Implements



Quick-Hitches

Land Pride Quick-Hitches allow you to quickly and easily hook and unhook 3-point implements, some without ever leaving the tractor seat.

Land Pride Performance Matched Attachments/Implements



Rear Blades

Land Pride Rear Blades are excellent for leveling, finish grading, backfilling, and removing snow. Applications range from construction, landscaping, farms, feedlots, arenas, and home sites depending on model selection.

Land Pride Performance Matched Attachments/Implements



Disc Harrows

Land Pride Disc Harrows open and break up the soil surface to help prepare the soil seedbed for planting. They have uses in landscaping, nurseries,  farms, food plots, construction, and arenas. Model selection is dependent on application.

Land Pride Performance Matched Attachments/Implements



Drag Harrows

Land Pride's Pull-type Drag Scrapers are ideal for moving large quantities of dirt and aggregate, leveling, and finish grading. Applications range from feedlots, outdoor arenas, building sites, farm maintenance, and dirt construction.

Land Pride Performance Matched Attachments/Implements



Landscape Rakes

Land Pride Landscape Rakes are perfect for preparing a site for seeding, spreading rock, moving debris, or general maintenance around farms, parks and beaches.

Land Pride Performance Matched Attachments/Implements



Post Hole Diggers

Land Pride Post Hole Diggers aide in digging a variety of holes – from posts to footings to trees. They are well suited for landscapers, rental yards, contractors, farmers, and homeowners, depending on model selection.

Land Pride Performance Matched Attachments/Implements



Ballast Box

Kubota's Ballast Boxes are designed to help maintain the weight ratio between the front and rear axles for front loader or front hitch-mounted applications. Proper ballasting provides better tire traction, which means a smoother ride while maintaining power and braking efficiency during heavier applications.

Rear Snow Blower

Kubota's Rear Mounted Snow Blowers are designed with quality and ease of use in mind. Our commercial snow blowers provide efficient productivity to make short work of your snow removal needs.

Land Pride Performance Matched Attachments/Implements

Land Pride Performance Matched Attachments/Implements


Specifications


M62_specs Download Specs
