M Narrow Series

Specialty

MSRP As Low As§
$47,200.00
0 0 48/60 Offer Badge
MODELS: M4N-071, M5N-091, M5N-111

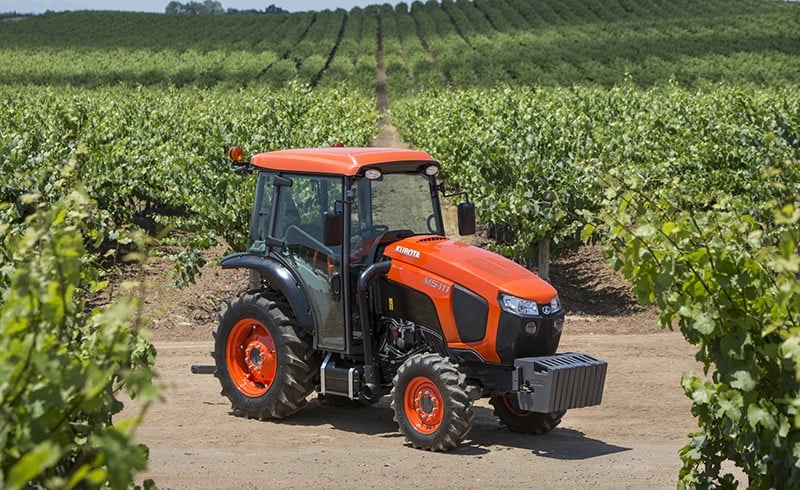

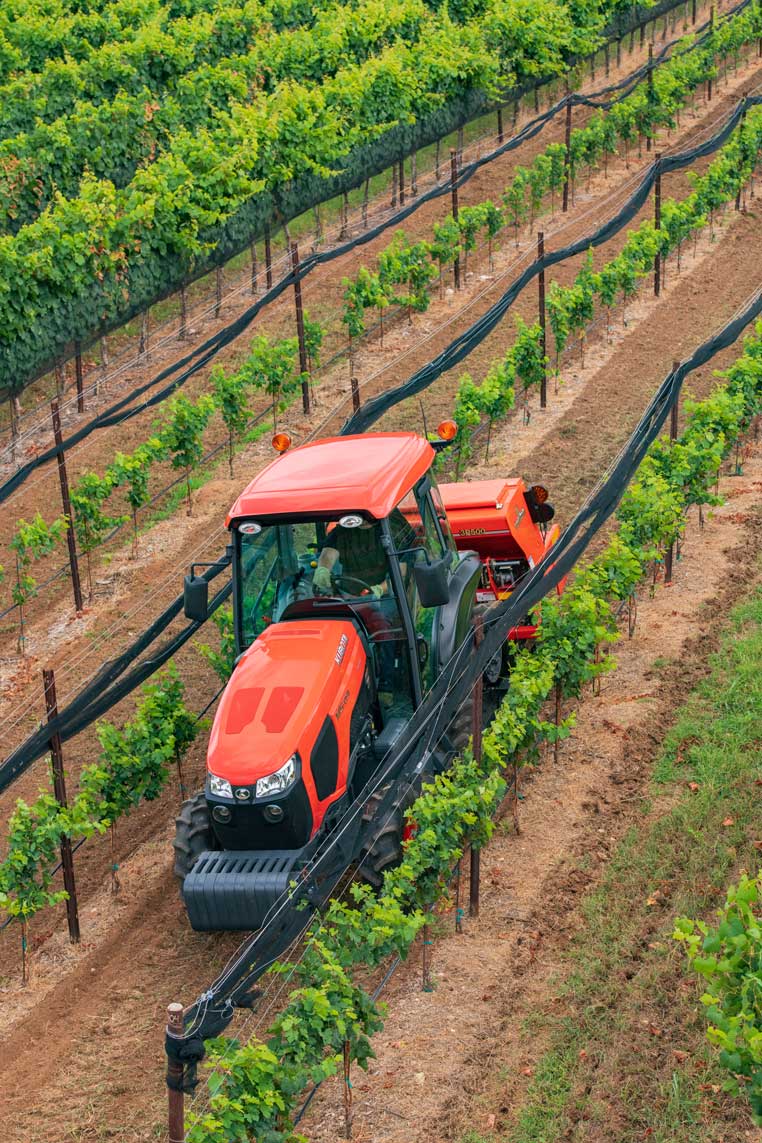

The Kubota M Series Narrow tractors are now even better than before, offering up to 108 engine HP, greatly enhanced ergonomics and many value-adding features. Kubota engineered the M4N/M5N specifically for work in vineyards, orchards or anywhere else that might require a narrow tractor that features M Series power. With an intelligently revamped operator station and improved hydraulic capacity, M Narrow delivers on Kubota’s proven versatility, dependability and strength.

Features & Details

0516_M5N_111_Narrow_Details_6900

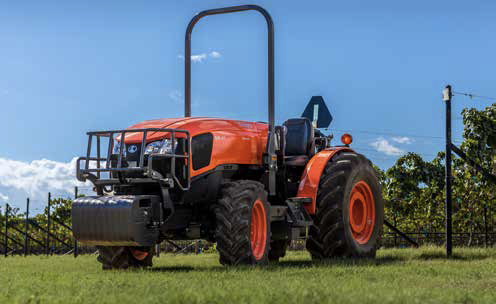

Transmission

High productivity requires versatility, such as traveling at low or sustained speeds. This tractor's transmission has 12F x 12R speed (24F x 24R is available on M5N only), with six speeds in two ranges, making sure the right gear for the job is always available. The shuttle shift is electric over hydraulic, making direction changes a breeze. These tractors also have economy 540/540E PTO as standard equipment to save fuel and reduce noise when light duty jobs are being performed.

0516_M5N_111_Narrow_Details_7230

Bi-Speed Turning

Kubota exclusive Bi-Speed turning is standard. When Bi-Speed is engaged, the front tires will rotate faster than the rear tires, pulling the front of the tractor around keeping a tight turning radius.

0516_M5N_111_Narrow_Details_6897

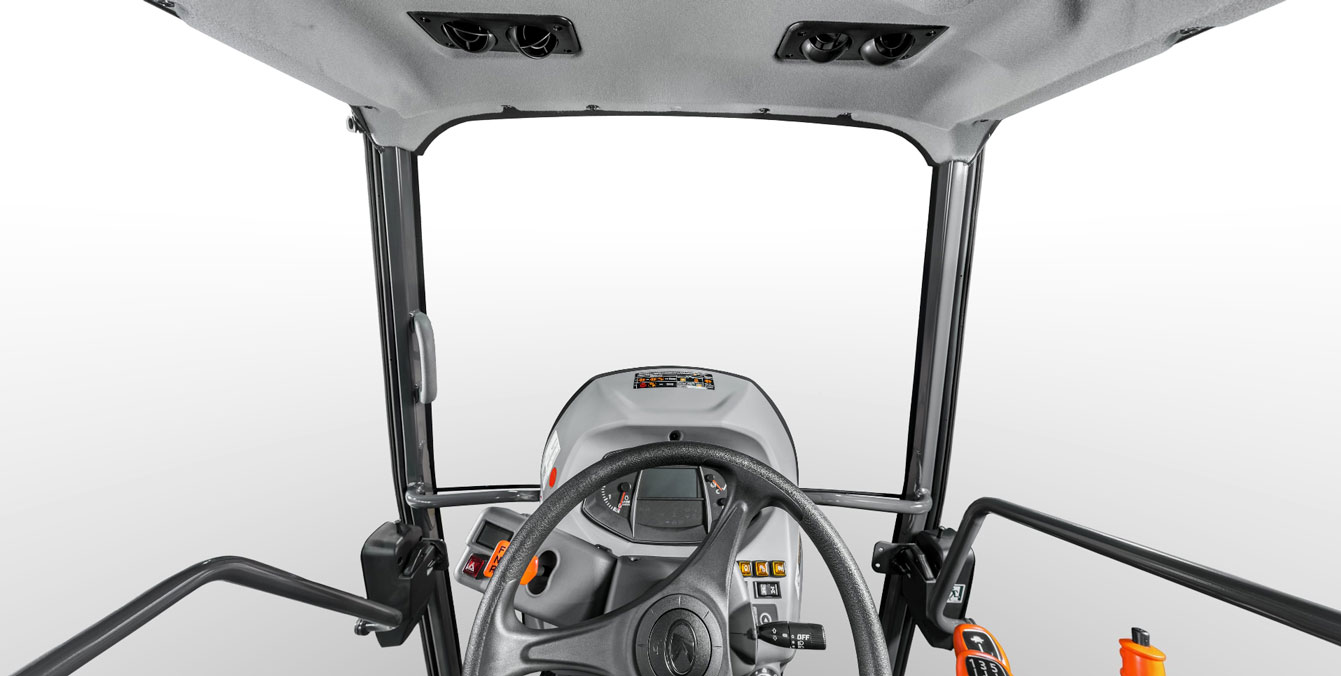

Redesigned Cab

To promote operator efficiency, the dash has been updated and contains a multi-function, multi-view intellipanel. All main controls are on the right hand side of the operator, while the steering wheel has 40 degrees tilt. Dual side mirrors and an easy access fuse box are standard.

0516_M5N_111_Narrow_Details_6910

Improved Hydraulics

The M Series Narrow tractors have more standard rear remote valves than before, now offering 2 valves as standard. With 18.1 GPM flow (16.7 GPM for M4N) and optional third, fourth or fifth remotes (all valves being independent flow control valves), the tractor is ready to accept implements requiring multiple valves.

MNarrowEngine

Kubota Diesel Engines

Proven, Powerful and Reliable

The M Series Narrow tractors are powered by the very popular V3800 series Kubota Diesel engine, which is a 3.8 liter, turbocharged, Tier 4 final engine. Packed with up to 108 engine HP, the M Series Narrow tractors are ready work.

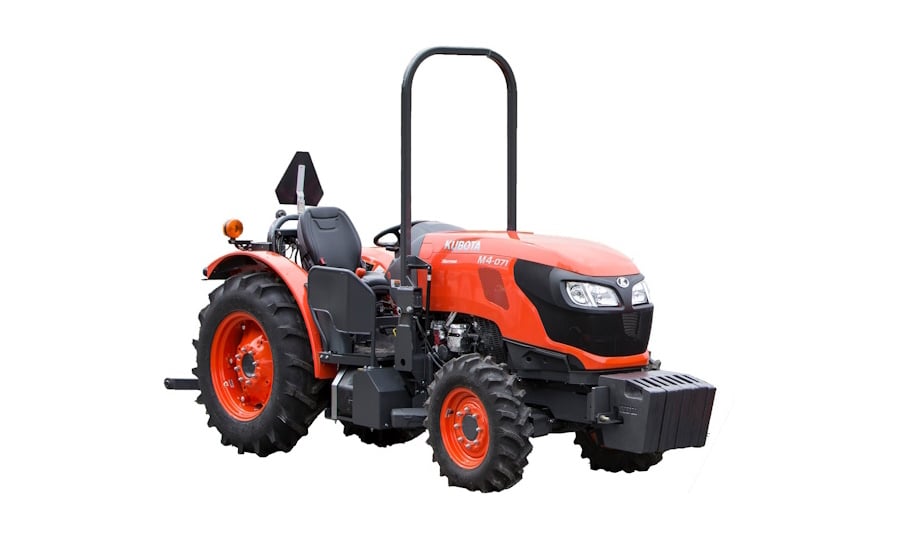

M4N-071: 72.6 HP*, 61.0 PTO HP**

M5N-091: 95 Rated HP*, 78.0 PTO HP**

M5N-111: 108 Rated HP*, 91.0 PTO HP**

*Engine HP @ 2400 rpm (According to 97/68EC)
**PTO Power @ rated engine rpm (Manufacturer's Estimate)


SPECS & COMPARE

M Narrow Series

70.4 - 100.7 HP. Narrow enough to work between vines – powerful enough to be M Series.

MSRP AS LOW AS§ $47,200.00
  • Engine Manufacturer
    Kubota
  • Engine
    V3800CR - TIER4
  • EPA Emission Level
    Tier 4 Final
  • Gross Engine HP
    73-107 (54.1-79.7 kw)
  • PTO HP
    61-89 (45.5-66.4)
  • Rated Engine Speeds (rpm)
    ROPS: 2,400, CAB: 2,600
  • Aspiration
    Turbocharged
  • Displacement cu. in. (cc)
    230 (3.8)
  • Injection Type
    Common Rail, Direct Injection
  • Cylinders
    4
  • Alternator Amps
    ROPS: 80, CAB: 80, OPT: 130
  • Exhaust Pipe
    STD: Vertical Exhaust/Down Pipe, OPT: Down Pipe.
  • Exhaust After Treatment
    DPF, SCR, DEF
  • Fuel Tank Capacity gal. (liters)
    20 (76)
  • DEF Tank Capacity gal. (l)
    3.2 (12.3)
  • Transmission
    STD: 12F X 12R, OPT:24F X 24R
  • Left-Hand Shuttle Lever
    Standard
  • Hydraulic Shuttle
    Standard
  • Fully Synchronized Main Shift
    Standard
  • Creep Speed
    Dealer Installed Option
  • Final Drive
    Inboard Planetary
  • Clutch Type
    Wet Clutch
  • Brakes
    Hydraulic Wet Disc
  • Rear Differential Lock
    Mechanical
  • Front Differential Lock
    Limited Sip
  • Front 4WD Axle
    Bevel Gear
  • Speeds at RPM
    STD: 540 @ 2,385/540E @ 1,735
  • Engagement Method
    Electrohydraulic
  • Hydraulics System
    Open Center / Independent
  • Main Pump Flow gpm (l/m)
    ROPS: 16.7 (63), CAB: 18.1 (68.5)
  • Power Steering Flow gpm (l/m)
    ROPS:6.3 (23.8), CAB: 6.8 (25.7)
  • Total Flow gpm (l/m)
    "ROPS: 23 (87.6) CAB: 23 (87.2) / 24.9 (94)"
  • Control Type
    Position / Draft
  • Draft Control Type
    Mechanical
  • Draft Control Sensing
    Top Link
  • Hydraulic Remote Valves
    STD: 2, OPT: 2 / 3 / 4 / 5
  • Three Point Hitch Type
    CAT II
  • Telescoping Link Ends
    Standard / Fixed
  • Lift Capacity lbs. (kg)
    24" Behind Lft Pts., SAE lbs. (kg): 5,181 (2,350) / STD: 3,858 (1,750), OPT: 4,795 (2,175)
  • Wheelbase in. (mm)
    83.9 (2,130)
  • Overall Height in. (mm)
    90.2 (2,290)
  • Turning Radius w/o Brake ft. (m)
    2WD: 12.1 (3.7), 4WD: 12.5 (3.8)
  • Weight lbs. (kg)
    4WD ROPS: 5,049 (2,290), 4WD CAB: 5,291 (2,400) / 5,357 (2,430)
  • Front / 2WD
    N/A
  • Rear / 2WD
    N/A
  • Front / 4WD
    8.0 - 16 R1
  • Rear / 4WD
    12.4 - 24 R1
  • Build
  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •
§The Manufacturer's Suggested Retail Price excludes tax, dealer fees, and optional equipment. The equipment shown is for illustrative purposes only and may not be base equipment.
