Standard L01 Series

Compact

MSRP As Low As§
$13,652.00
149 Offer Badge
MODELS: L2501F/DT/HST, L3301F/DT/HST, L3901F/DT/HST, L4701F/DT/HST
Meet your new favorite piece of equipment: For decades, Kubota's Standard L01 Series has provided the durability and versatility needed to tackle any job for small property owners at an affordable price. The Standard L01 Series continues to carry on this reputation and takes power and reliability to new heights. Designed with you in mind, the Standard L01 Series is built to last to give you the quality and longevity you deserve.

Features & Details

meet-the-standard-l01-series

Meet the Standard L01 Series

For decades, the Standard L series has been known for its affordability, durability, ease of use, and versatility. Today, the L01 series continues this reputation by providing the same high quality performance in a wide offering of affordable models.

L2501 Front

#1 Selling Compact Tractor Brand*

There’s a reason why Kubota has been the top selling compact tractor brand for over a decade.*  Kubota’s quality, and the Standard L01 series reputation is known in all circles, whether it be homeowners, rental yards, or contractors.

*Based on EDA tractor sales data of under 40 horsepower models from 2009 to 2019.

L01 Series Lineup

Multiple Model Options to Fit Your Needs

Kubota understands that not every customer’s needs are the same. With that in mind, Kubota offers multiple options for customers throughout the Standard L01 Series lineup.

  • 2 or 4 Wheel Drive Front Axles – Since not everyone needs or wants a 4WD tractor, Kubota offers you the choice of either one.
  • Gear-Drive or HST Transmission - Having two transmission options allows you to make the choice for what really suits you better, whether it be an economical, comfort, or performance need.
  • Four Horsepower Models - Ranging from 24.8 to 47.3 gross horsepower, Kubota’s Standard L01 series offers four affordable horsepower models to choose from based on your application and implement requirements.
1213_L3301F_Engine_2168

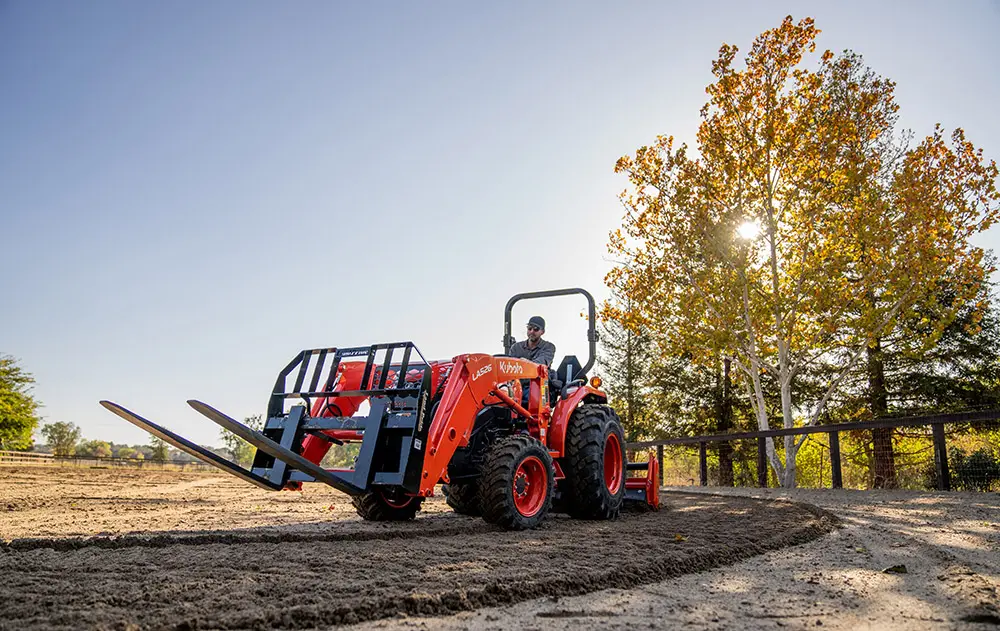

Kubota Diesel Engine

Because of our reputation for reliability and performance, Kubota is the #1 manufacturer in the world for under 100 HP non-automotive, multi-cylinder diesel engines.*  The Standard L01 Series is equipped with the Kubota-built diesel engine. Features include:

  • Powerful Performance - Kubota diesel engines are known to maximize engine performance.
  • The Standard L01 series offers 4 horsepower options, ranging from 24.8 to 47.3 HP, to fit a wide variety of performance needs.
  • Tier 4 Final Emission Compliance - The technology behind Kubota diesel engines comply with emission standards. Our L3301, L3901, and L4701 are equipped with a Common-Rail System (CRS) with electronic controlled fuel injection.
  • Smooth, Quiet Operation - Kubota Diesel Engines are designed to reduce noise and vibration which provides better comfort when operating.
  • Fuel Efficiency - Kubota diesel engines are designed not only to maximize performance, but also efficiency and with a large fuel tank and a clean burning engine, the Standard L01 series provides increased fuel efficiency to keep you operating longer.

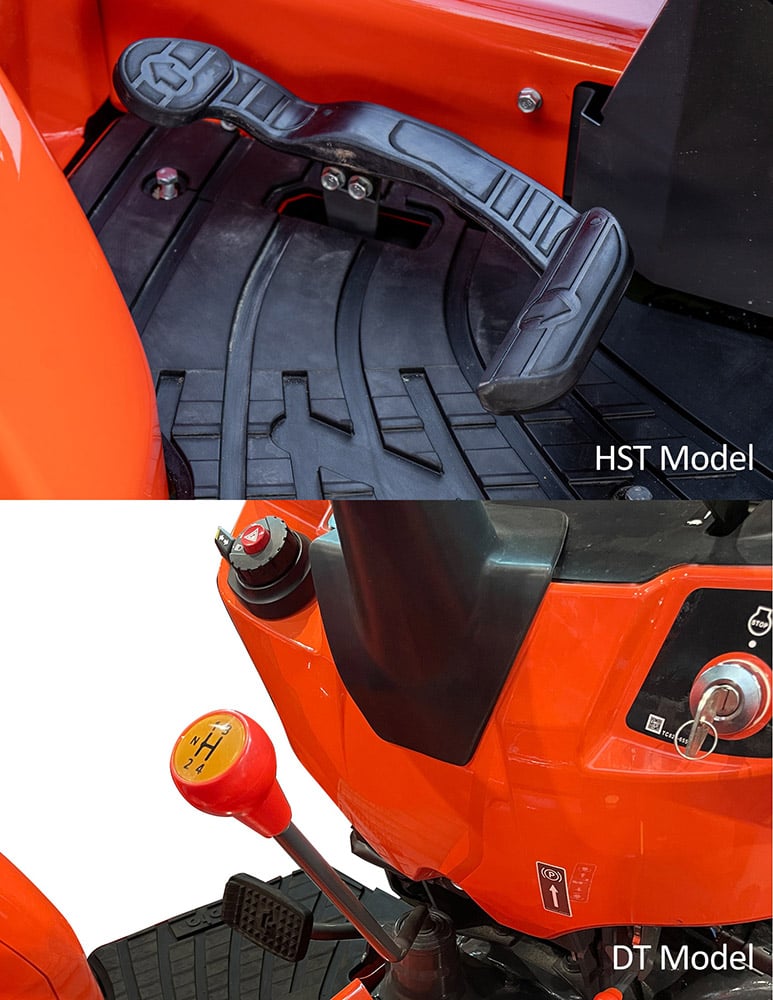

L01 Transmission

Kubota Transmission Options

Kubota prides itself in designing and manufacturing the Standard L01 Series powertrain so that you can be reassured in the quality of the product. The Standard L01 Series offers two Kubota-built transmission options in all four of the horsepower models.

  • 3-Range HST – Kubota Standard L01 Series HST models have a 3-range (Low-Medium-High) transmission, making it easier for any operator to find the right mix of speed and torque for more precise control.
    • HST Treadle Pedal – HST models come with the Kubota Treadle Pedal, which is easy to use with no confusion on which pedal you are pushing, making every job faster and safer.
    • Cruise Control - Allows for a set, constant speed. This feature is standard on the L4701 and optional on the L2501, L3301 and L3901.
  • Gear-Drive Transmission - Kubota’s gear-drive transmission is available in both 2WD and 4WD models. The advantage of a gear-drive transmission can be both economical and to maximize power, especially in heavy-duty applications.
    • The L2501 gear-drive transmission has 8 forward and 4 reverse (8x4) speeds, with 2 ranges in forward (low-high).
    • L3301/L3901/L4701 Gear-Drive Transmissions has 8 forward and 8 reverse (8x8) speeds, with 2 ranges in forward (low-high).
1213_L3901DT_Front3_4L_2199

Kubota-Built Steel Chassis and Cast-Iron Front Axle

  • Kubota Designed, Kubota Built – From front to rear, the Kubota Standard L01 series is designed and built by Kubota for you. You won’t find a “Kubota” re-branded tractor built by others, only Kubota quality through and through.
  • Heavy Duty Construction – All Standard L01 series are equipped with a heavy duty front axle, cast steel transmission and rear end, as well as steel hood and fenders, making them built to last.
L3301 Overhead

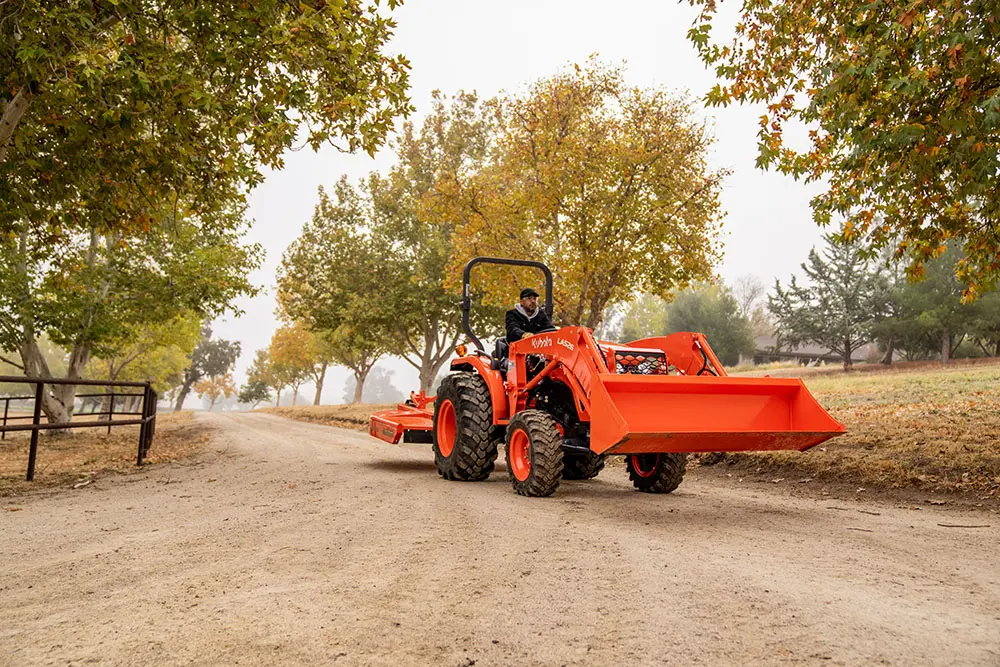

Operator Comfort - L2501, L3301, and L3901 models

Simplicity and comfort are key, especially during long hours of operation. The Standard L01 series is designed to be easy to use with an ergonomic control layout while also providing the comfort needed. Standard features include:

  • Wide, Spacious Semi-flat Operator Platform
  • Suspension Seat
  • Transmission-driven or Live PTO Engagement (depending on model) -  simple, easy-to-use design
  • Easy to Read Dash Panel – Features large gauges showing RPM, engine temperature and fuel level
  • Rear Differential Lock
  • Position Control - Smoother 3-Point Hitch raising and lowering
  • Cup Holder
  • Tool Box
  • Foldable ROPS – ROPS for maximum protection, foldable for maximum convenience
L4701HST Overhead

Operator Comfort - L4701 models

Simplicity and comfort are key, especially during long hours of operation. The L01 series is designed to be easy to use with an ergonomic control layout while also providing the comfort needed. Standard features include:

  • Wide, Spacious Flat Operator Platform
  • Suspension Seat
  • Electro-Hydraulic Independent PTO Engagement Switch
  • Easy to Read Dash Panel – Features large gauges showing RPM, engine temperature and fuel level
  • Rear Differential Lock
  • Position Control - Smoother 3-Point Hitch raising and lowering
  • Cup Holder
  • Tool Box
  • Foldable ROPS – ROPS for maximum protection, foldable for maximum convenience
0813_L3901_PalletForks_0599

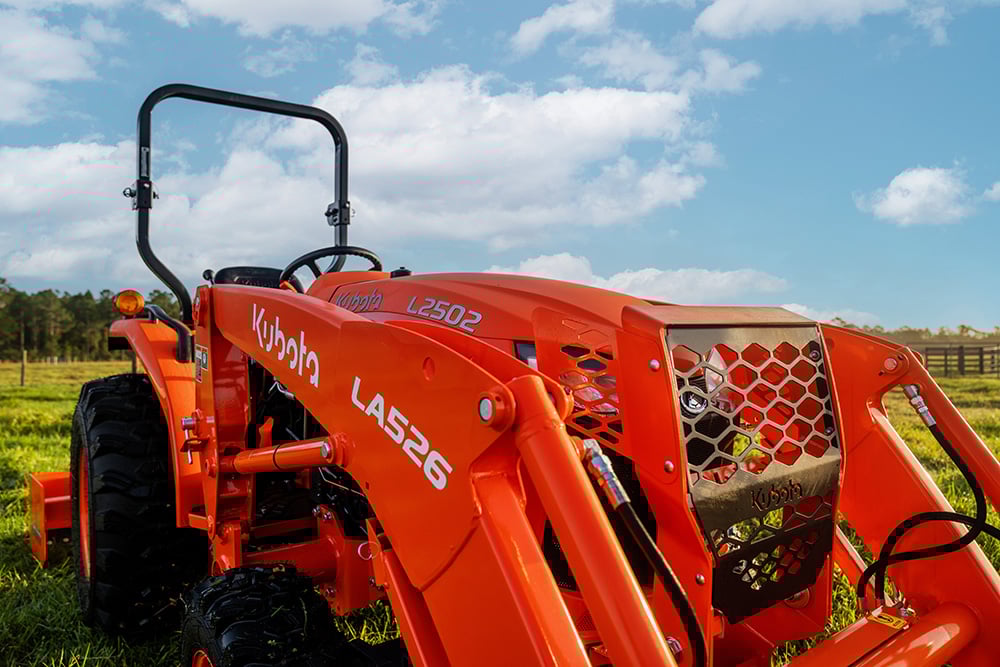

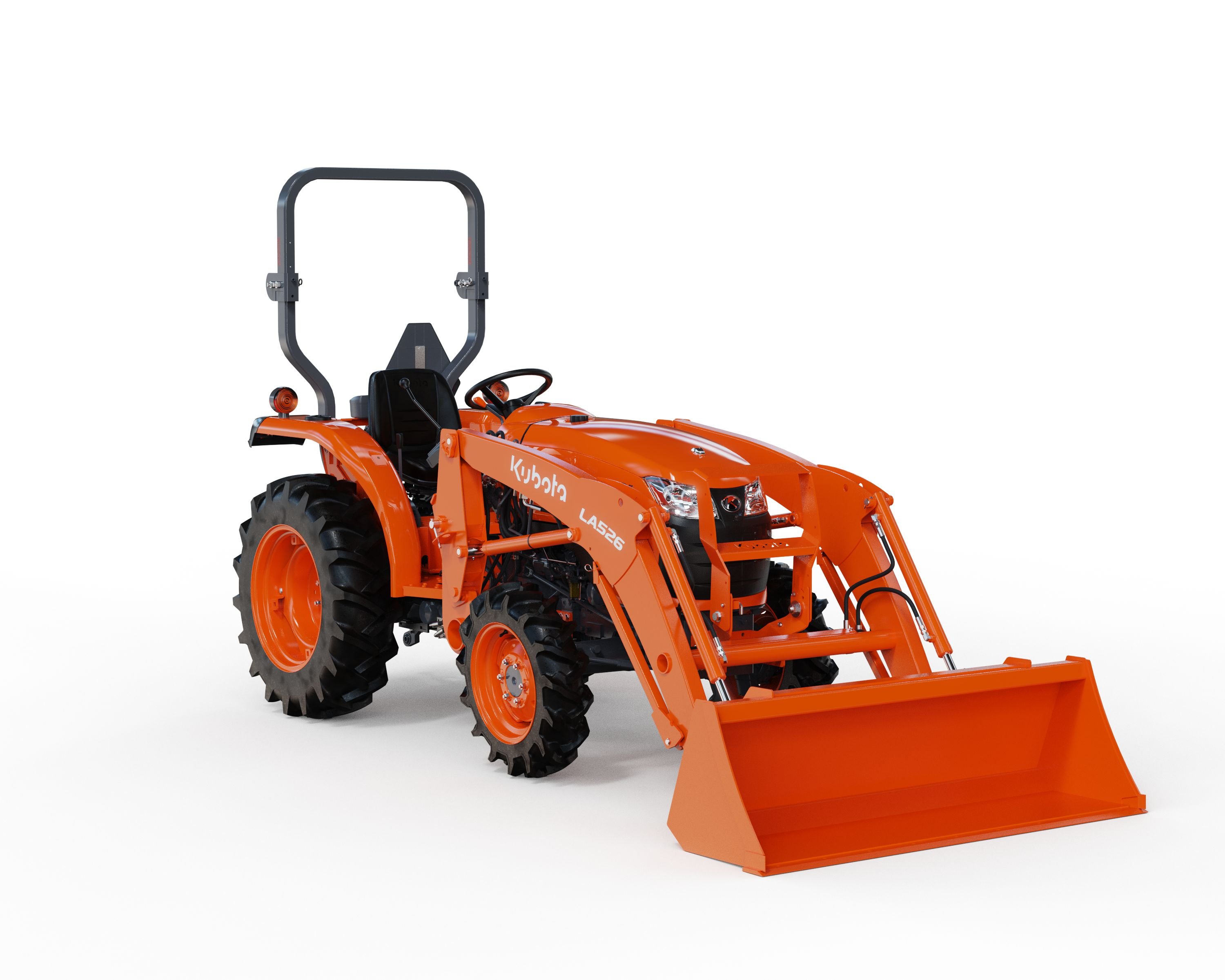

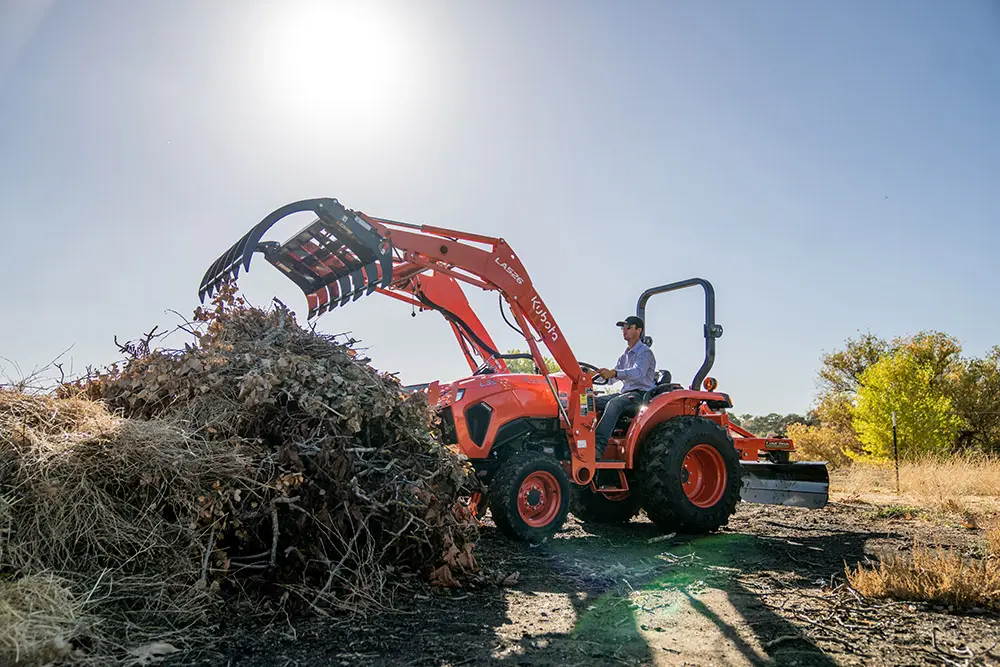

Performance-Matched Kubota-Built Front Loader

Kubota’s front loaders are built by Kubota and specifically designed to maximize the performance of the front loader and tractor. Features include:

  • Kubota-built LA525 front loader: designed for the L2501, L3301 and L3901, this loader has a maximum lift capacity of 1,082 pounds at the pin and a maximum lift height of 94.3 inches at the pin.
  • Kubota-built LA765 front loader: designed for the L4701, this loader has a maximum lift capacity of 1,684 pounds at the pin and a maximum lift height of 105.2 inches at the pin.
  • 2-Lever Quick Coupler – A 2-Lever Quick coupler allows for quick and easy attachment changing, such as buckets, pallet forks, bale spears or any number of other front loader attachments, thus improving productivity. The LA525 offers two loader packages, one with standard 2-lever quick coupler and one without this feature. The LA765 comes standard with the 2-lever quick coupler feature.
  • Top Quality Loader Valve – Both LA525 and LA765 feature a loader valve design with simultaneous boom and bucket operation and a regenerative circuit. These features increase speed and dump times to maximize productivity.
  • Easy-to-Remove – Both LA525 and LA765 can quickly and easily be removed from the tractor without tools or need for buying additional “parking” kits, making it more versatile and easier to use.
1013_L4701_HST_BackHoe_9871---cropped

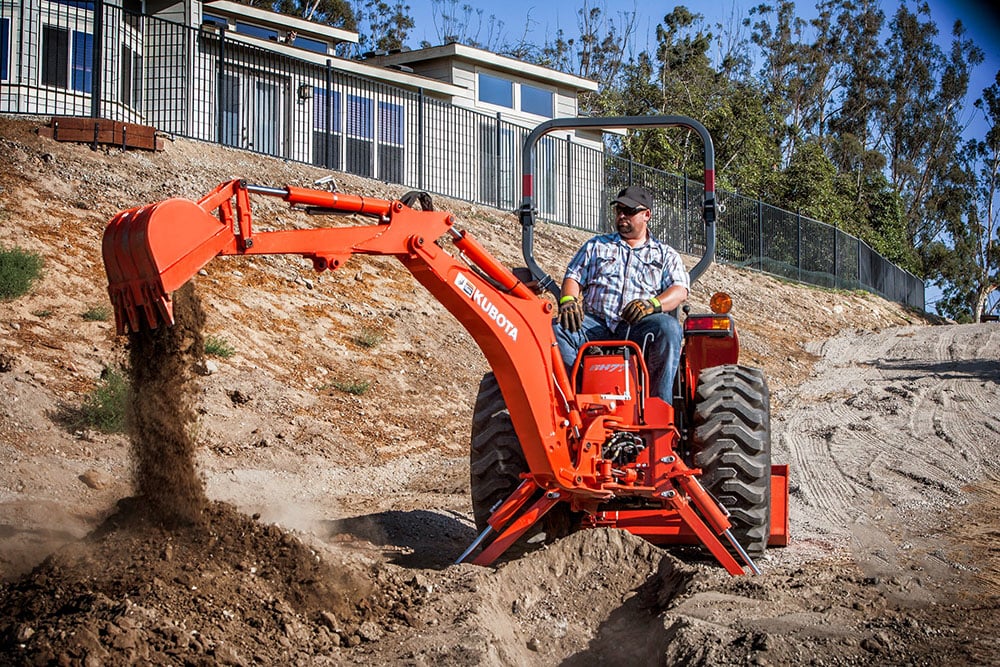

Performance-Matched Kubota-Built Backhoe

Performance matched backhoes are built by Kubota and specifically designed to match the performance of the tractor. Backhoes are great for digging applications such as trenching or landscaping.

  • Ease of Use – Designed with plenty of dig depth and reach, smooth hydraulics, and a spacious operator platform, you will find the BH77 and BH92 not only easy to use, but a pleasure to work with.
  • Standard Cushioning Valve - Equipped standard with cushioning valves on each cylinder to prevent impact shock when the dipper reaches the end of the cylinder stroke.
  • Optional Mechanical or Hydraulic Thumb - Adding a thumb increases versatility and makes lifting objects even easier. This feature is available in either the economical mechanical or the efficient hydraulic version (Hydraulic thumb only available on BH92).
  • Easy To Remove – The Kubota BH77 and BH92 are easily removed without the use of tools, which will make full use of efficiency.
1213_L4701HST_3PtHitch_2342

Heavy Duty 3-Point Hitch

With a heavy-duty 3-Point Hitch, Kubota’s Standard L01 Series takes on tough applications with a pulling performance you can count on. The Standard L01 Series is equipped with a large capacity hydraulic cylinder and pump which allows for a powerful lifting capacity for a wider variety of implements. Other features include:

  • Position Control - All Standard L01 Series models come standard with position control which allows for smooth, precise raising and lowering of the 3-point hitch to reach and lock in a desired minimum height.
  • Telescoping Stabilizers - Standard for L4701 and optional for L2501, L3301 and L3901, telescoping stabilizers make attaching and adjusting implements quicker and easier than traditional check chains.
  • Land Pride Quick Hitch - Kubota’s Standard L01 Series can be equipped with Land Pride’s quick hitch. This feature greatly improves ease of switching out rear implements and reducing the time it takes to do so. If you plan on having more than one rear 3-point implement, the Quick Hitch is the ultimate time saving, fatigue reducing accessory that you will come to love and appreciate.

*Image shown is L4701 Model

20191108_KubotaT_1148

Built for the Long Haul

The Value of the Standard L01 Series

Affordability doesn't just refer to the purchase of the tractor upfront, it's meant for the long haul. Kubota is known for its reliability, quality and durability and the Standard L01 series is built to withstand all of the heavy loads and potential wear and tear over the years. The Standard L01 series is designed to minimize maintenance with its durable steel chassis, world renowned Kubota diesel engine, protected hydraulic hoses, and pairing to performance-matched implements.

L3301 Open Bonnet

Hassle-Free Maintenance

Along with a durable chassis and easily accessible routinely checked items, the Standard L01 Series’ routine maintenance is simple.

  • One-Piece Full Open Metal Hood - Using a gas strut hood opener assist, the one piece hood opens fully with no tools required.
  • Access to Commonly Checked Components - Not only does the full open hood give you easy access, but Kubota also strategically designs and places more commonly checked items into accessible spots. Items such as the battery, air filter or radiator screen are positioned at the front for quick, simplified access.

SPECS & COMPARE

Standard L01 Series

24.8 - 47.3 HP. Our top selling series.

MSRP AS LOW AS§ $13,652.00
  • Engine
    Direct injection, vertical, water-cooled 4-cycle diesel
  • PTO HP
    19.0 - 39.3
  • Gross Engine HP
    24.1 - 47.3
  • Rated Engine Speeds (rpm)
    2200-2700
  • Bore x Stroke in. (mm)
    3.4 × 3.6-4.0 (87 × 92.4-102.4)
  • Displacement cu. in. (cc)
    100.47 (1647) - 148.5 (2434)
  • Cylinders
    3-4
  • Fuel Tank Capacity gal. (liters)
    10.0 (38.0) - 13.5 (51)
  • Rear PTO type
    Transmission driven with overrunning clutch/Live-continuous running/Live - with overrunning clutch/Live independent hydraulic PTO with PTO brake, wet clutch
  • PTO/Engine speedsystem
    540/1910-2640
  • Pump Capacity gpm (l/min)
    5.15 (19.5) - 8.4 (31.7)
  • Lift Capacity lbs. (kg)
    1082 - 1684
  • 3-Point Hitch
    Category I
  • Hydraulics System
    Pressure kgf/cm2 (MPa): 165 (16.2) - 180 (17.7)
  • Transmission Type
    Gear Driven or Hydrostatic (HST)
  • Steering
    Integral type power steering / Hydrostatic power steering
  • Brakes
    Wet disc type / Mechanical, wet disc type
  • Clutch
    Dry type dual stage/No Clutch/Dry single
  • Standard Tire Size
    5.00-15/11.2-24 - 8.3-16/14.9-24
  • Max Traveling Speed mph (km/h)
    1.1-1.4 (1.7-2.2) - 13.2-15.8 (21.2-25.4)
  • Max Traveling Speed - Reverse mph (km/h)
    1.1-1.3 (1.7-2.1) - 13.1-14.2 (21.1-22.9)
  • Overall Length in. (mm)
    106.3 (2700) - 122.8 (3120)
  • Overall Width in. (mm)
    55.1 (1400) - 62.4 (1585)
  • Wheelbase in. (cm)
    63.3 (1610) - 72.8 (1850)
  • Ground Clearance in. (mm)
    13.4 (340) - 15.2 (385)
  • Turning Radius with Brake ft. (m)
    7.9 (2.4) - 8.9 (2.7)
  • Weight lbs. (kg)
    2425 - 3307
  • Build
  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •
§The Manufacturer's Suggested Retail Price excludes tax, dealer fees, and optional equipment. The equipment shown is for illustrative purposes only and may not be base equipment.

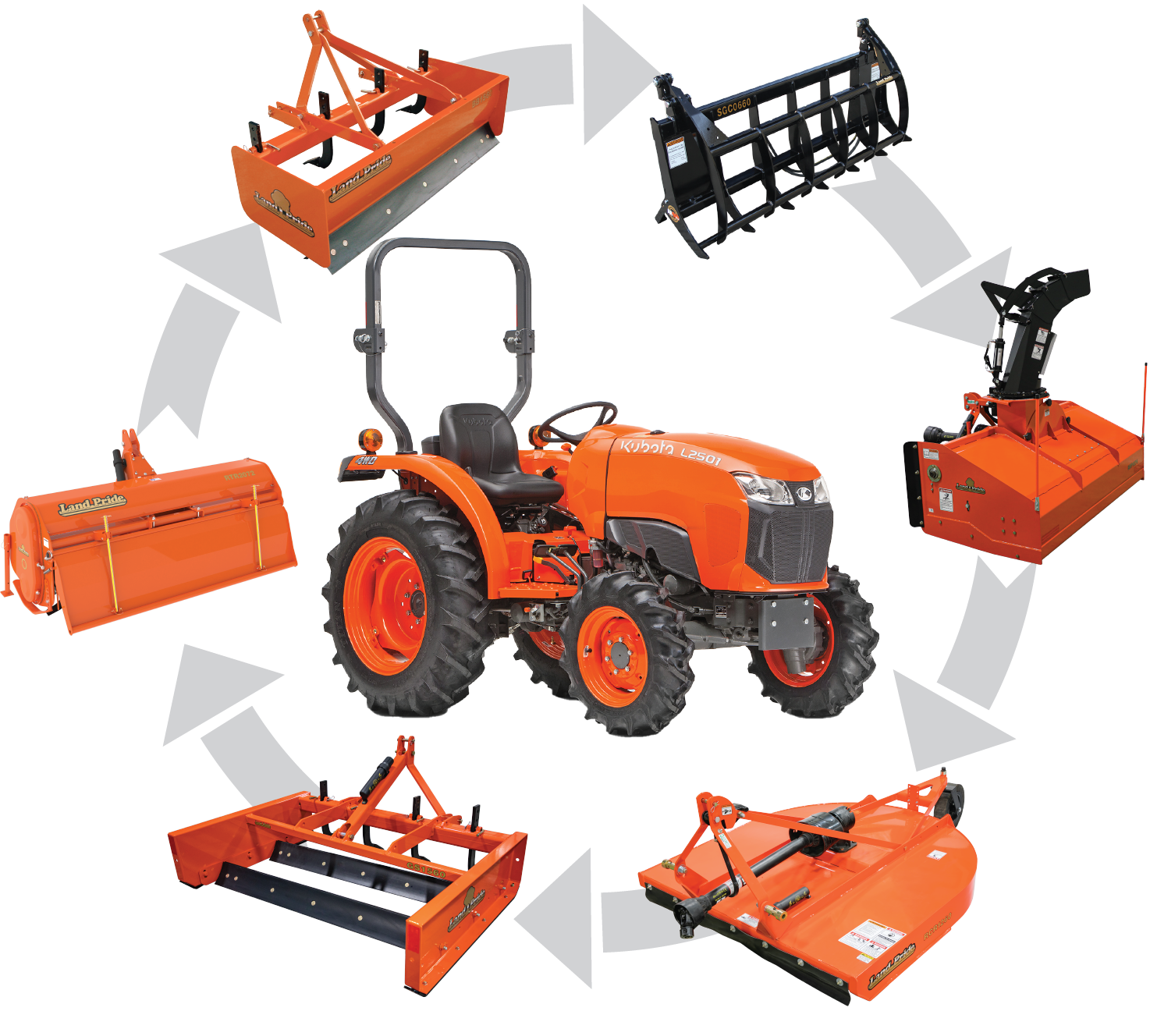

Choose Your Implements

  • L01 Front Loader
    Front Loader

    Front Loader

    Kubota’s front loaders are built by Kubota and specifically designed to maximize the performance of the front loader and tractor. Features include:

    • Kubota-built LA525 front loader: designed for the L2501, L3301 and L3901, this loader has a maximum lift capacity of 1,082 pounds at the pin and a maximum lift height of 94.3 inches at the pin.
    • Kubota-built LA765 front loader: designed for the L4701, this loader has a maximum lift capacity of 1,684 pounds at the pin and a maximum lift height of 105.2 inches at the pin.
    • 2-Lever Quick Coupler – A 2-Lever Quick coupler allows for quick and easy attachment changing, such as buckets, pallet forks, bale spears or any number of other front loader attachments, thus improving productivity. The LA525 offers two loader packages, one with standard 2-lever quick coupler and one without this feature. The LA765 comes standard with the 2-lever quick coupler feature.
    • Top Quality Loader Valve – Both LA525 and LA765 feature a loader valve design with simultaneous boom and bucket operation and a regenerative circuit. These features increase speed and dump times to maximize productivity.
    • Easy-to-Remove – Both LA525 and LA765 can quickly and easily be removed from the tractor without tools or need for buying additional “parking” kits, making it more versatile and easier to use.
  • L01 Backhoe Attachment
    Backhoe

    Backhoe

    Performance matched backhoes are built by Kubota and specifically designed to match the performance of the tractor. Backhoes are great for digging applications such as trenching or landscaping.

    • Ease of Use – Designed with plenty of dig depth and reach, smooth hydraulics, and a spacious operator platform, you will find the BH77 and BH92 not only easy to use, but a pleasure to work with.
    • Standard Cushioning Valve - Equipped standard with cushioning valves on each cylinder to prevent impact shock when the dipper reaches the end of the cylinder stroke.
    • Optional Mechanical or Hydraulic Thumb - Adding a thumb increases versatility and makes lifting objects even easier. This feature is available in either the economical mechanical or the efficient hydraulic version (Hydraulic thumb only available on BH92).
    • Easy To Remove – The Kubota BH77 and BH92 are easily removed without the use of tools, which will make full use of efficiency.
  • qh30_main
    Quick-Hitches

    Quick-Hitches

    Land Pride Quick-Hitches allow you to quickly and easily hook and unhook 3-point implements, some without ever leaving the tractor seat.

    Land Pride Performance Matched Attachments/Implements


  • bb15_main

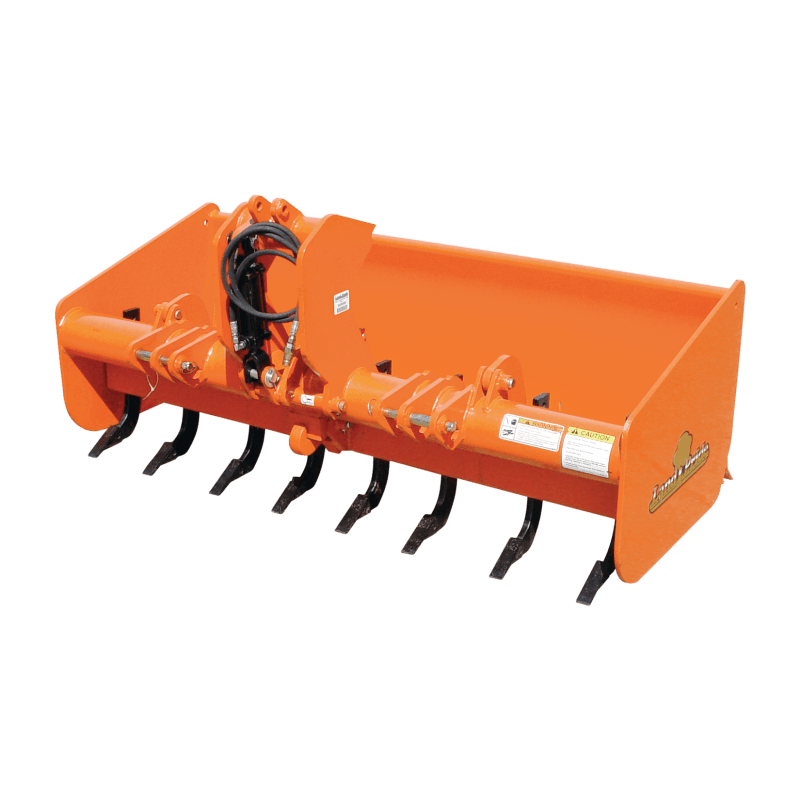

    Box Scrapers

    Box Scrapers

    Land Pride Box Scrapers are ideal in ripping, leveling, finish grading, and back filling applications at outdoor arenas and building sites, or for maintenance operations on farms and ranches, as well as dirt and gravel lanes or roadways.

    Land Pride Performance Matched Attachments/Implements


  • gs05_main
    Grading Scrapers

    Grading Scrapers

    Land Pride Grading Scrapers perform maintenance on gravel surfaces, eliminating potholes, washboards, and even creating and maintaining a crown with ease. Applications range from landscaping, farms and ranches, hunting camps, large estates, sod farms, and even construction sites depending on model selection.

    Land Pride Performance Matched Attachments/Implements


  • rta12_main

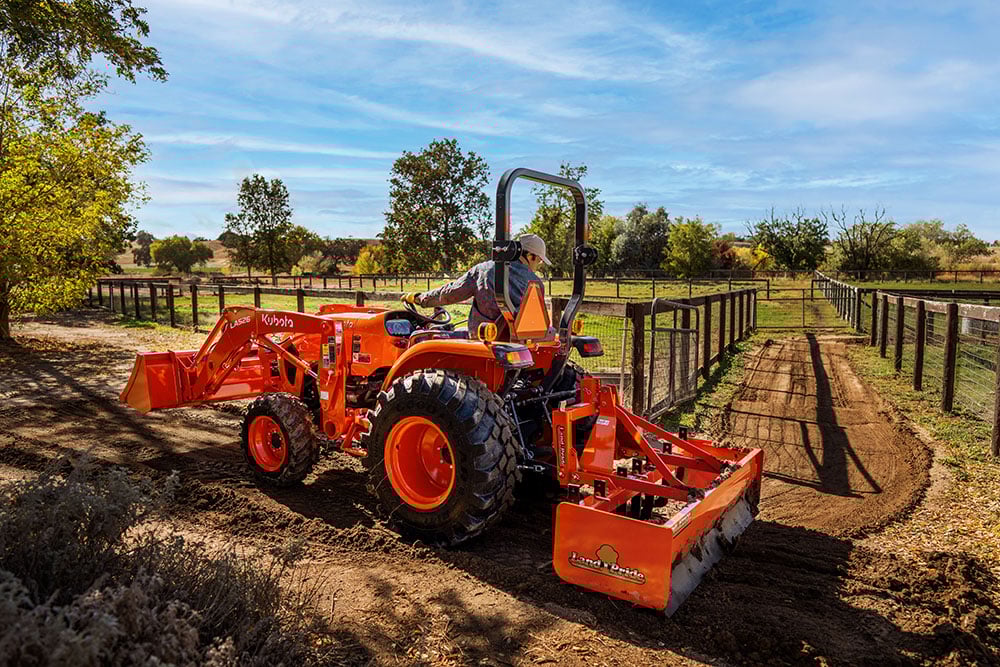

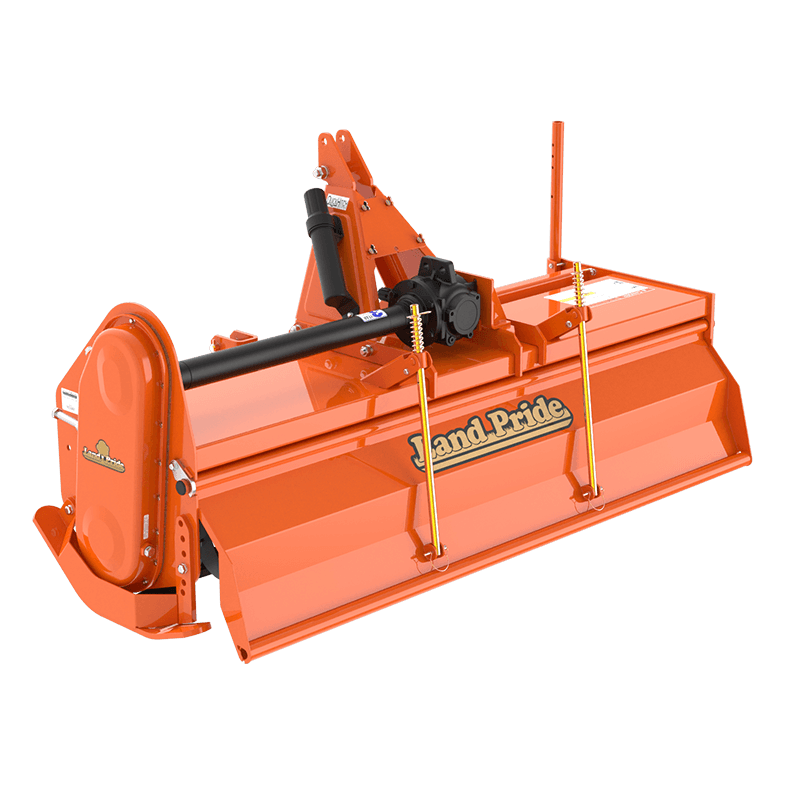

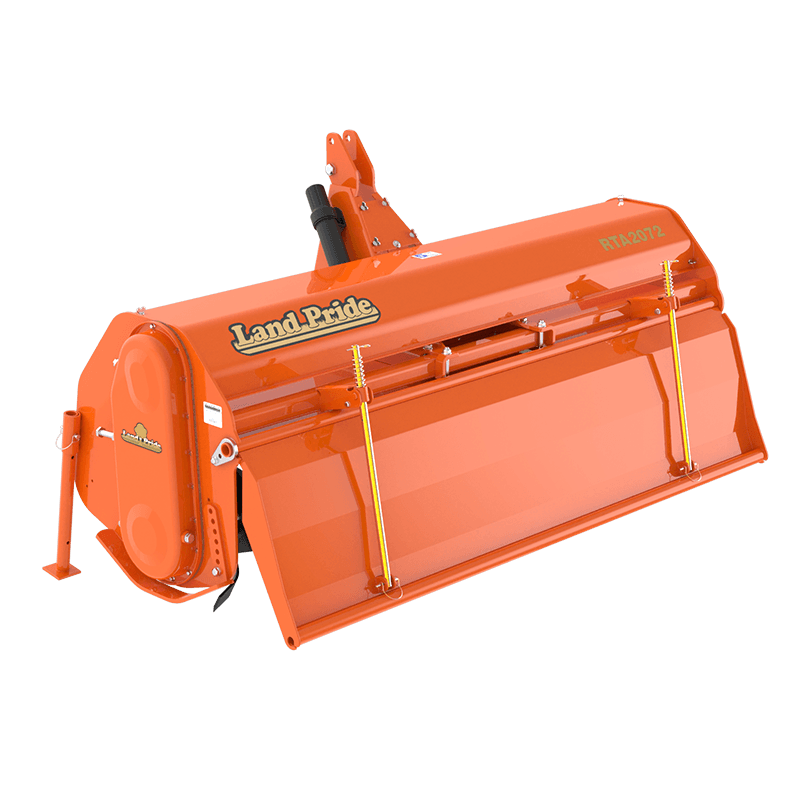

    Rotary Tillers

    Rotary Tillers

    Land Pride Rotary Tillers till soil for seedbed or planting preparation and have uses in residential landscaping and gardening, nurseries, farms, municipalities, golf courses and commercial applications depending on model selection.

    Land Pride Performance Matched Attachments/Implements



Choose Your Attachments

  • Bucket Attachment L01

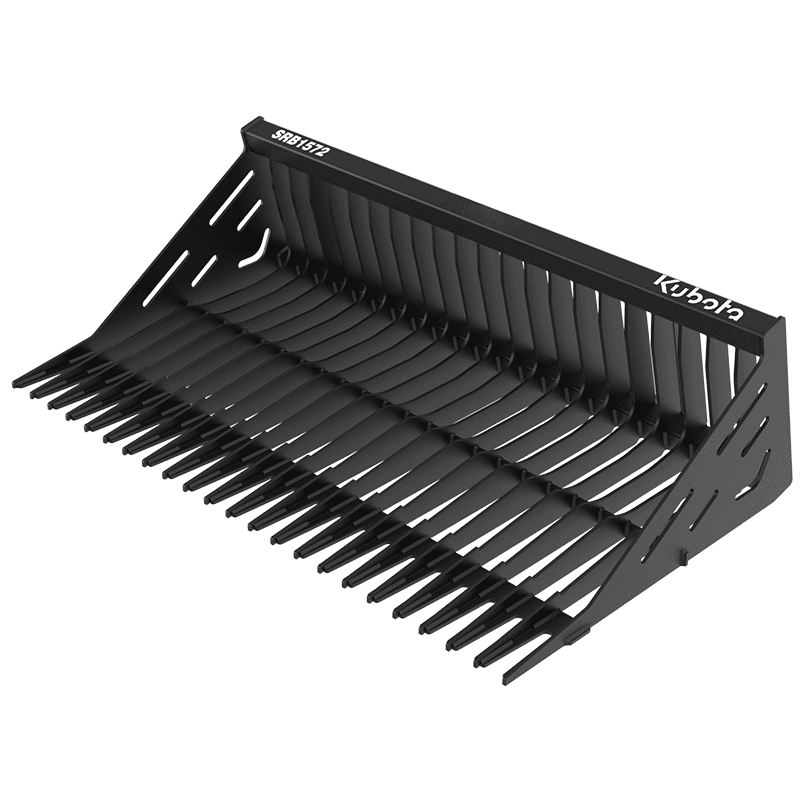

    Loader Buckets

    Loader Buckets

    Kubota offers a wide span of material bucket options depending on the material handling needs to fit a wide variety of applications.
  • Land Pride Pallet Fork
    Pallet Forks

    Pallet Forks

    Kubota and Land Pride’s Pallet Forks make transporting the pallets of various types of material quick and easy
  • Land Pride Grapple Bucket SGC0660
    Grapple Buckets

    Grapple Buckets

    Land Pride’s Performance-Matched Front Loader Grapple Buckets allow for easy grabbing and hauling of material like logs, hay, debris and much more.

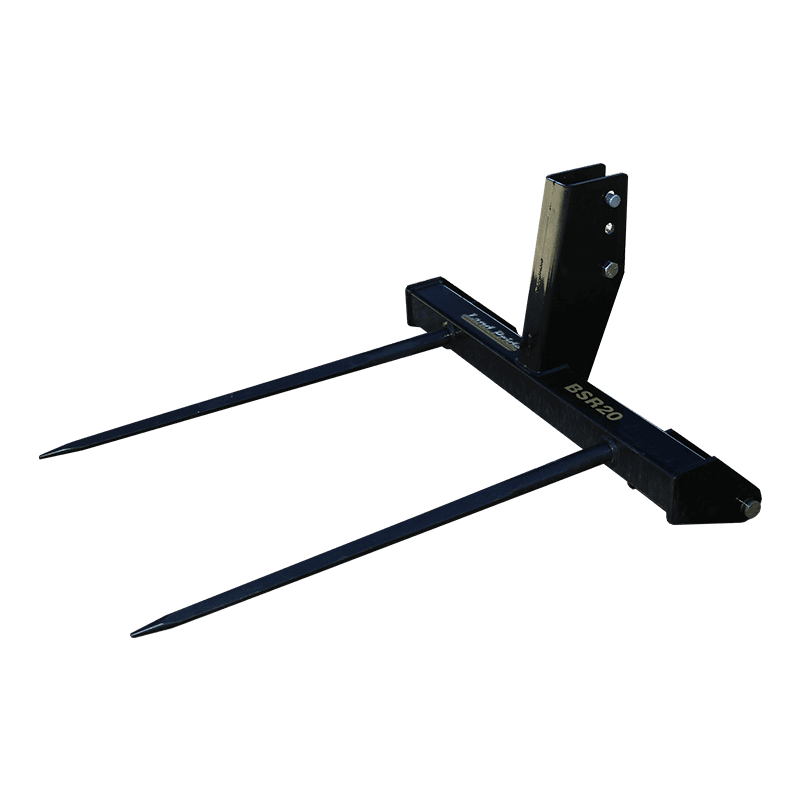

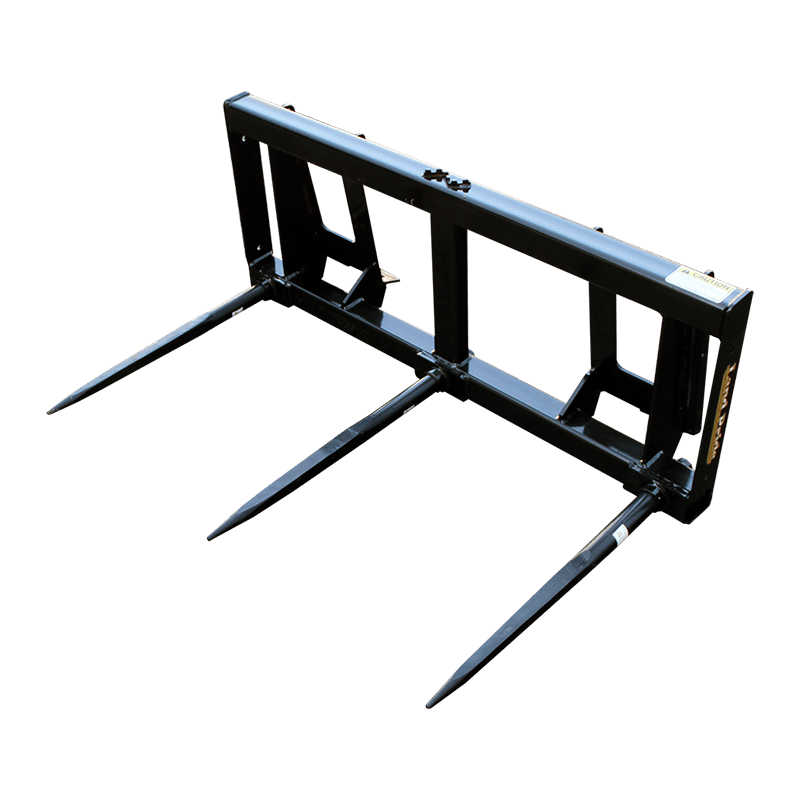

  • Land Pride Bale Spear BS20

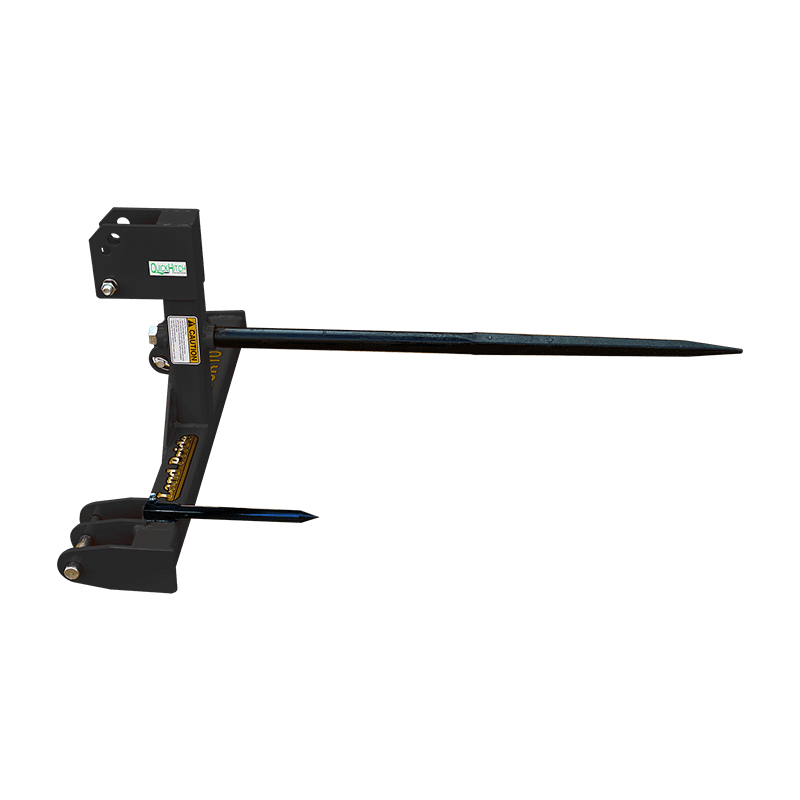

    Bale Spears
