F2510

Front Mount Mowers

MSRP As Low As§
$24,199.00
(IMAGES MAY REFLECT A HIGHER MSRP)

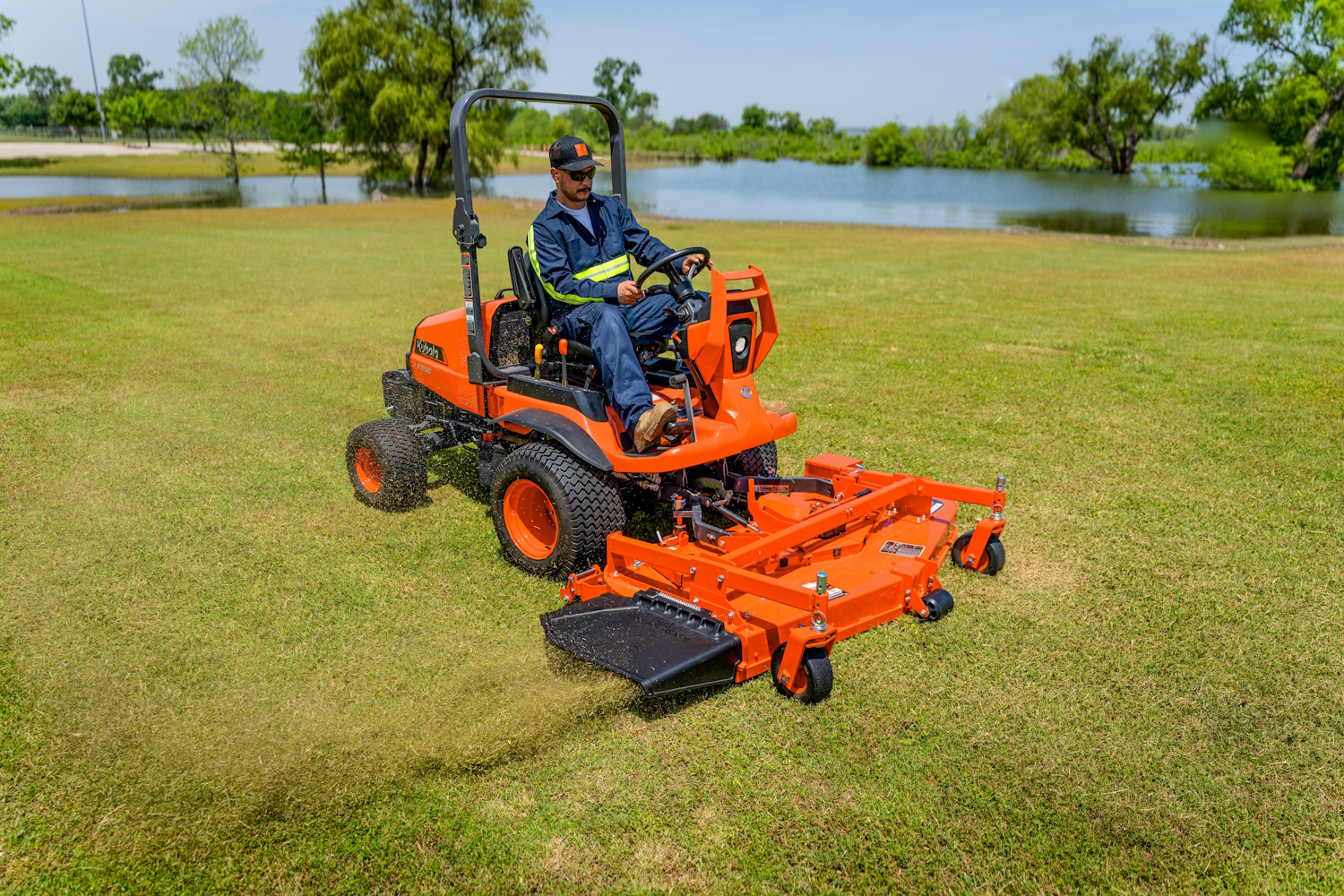

Built with power, precision and efficiency in mind, the Kubota F2510E and F2510 elevates your capability and ensures a clean-cut every time you take it out for a spin. With a 23.3 horsepower, diesel engine, the F2510 puts power where you want it, when you need it. Keep your business working year round with an aray of attachments like Snow Blowers, and Rotary Sweepers. A large fuel tank, hydrostatic transmission and proven, Kubota-built mowing deck will have you making short work of whatever comes your way. Read Disclaimer

Special Offers

F SERIES MOWERS
1.99% A.P.R. for up to 48 Months or Save $700 on your new F Series Mower!
Details
Farmer Veteran Coalition Rebate
Customer instant rebate for Farmer Veteran Coalition members.
Details
2025 EQUINE PURCHASE PROGRAM
Save with your 2025 Equine Membership* on Compact/Utility AG Tractors, Turf and RTV Products!
Details
Implement Stand Alone Financing
Stand Alone Financing Installment Program
Details

Features

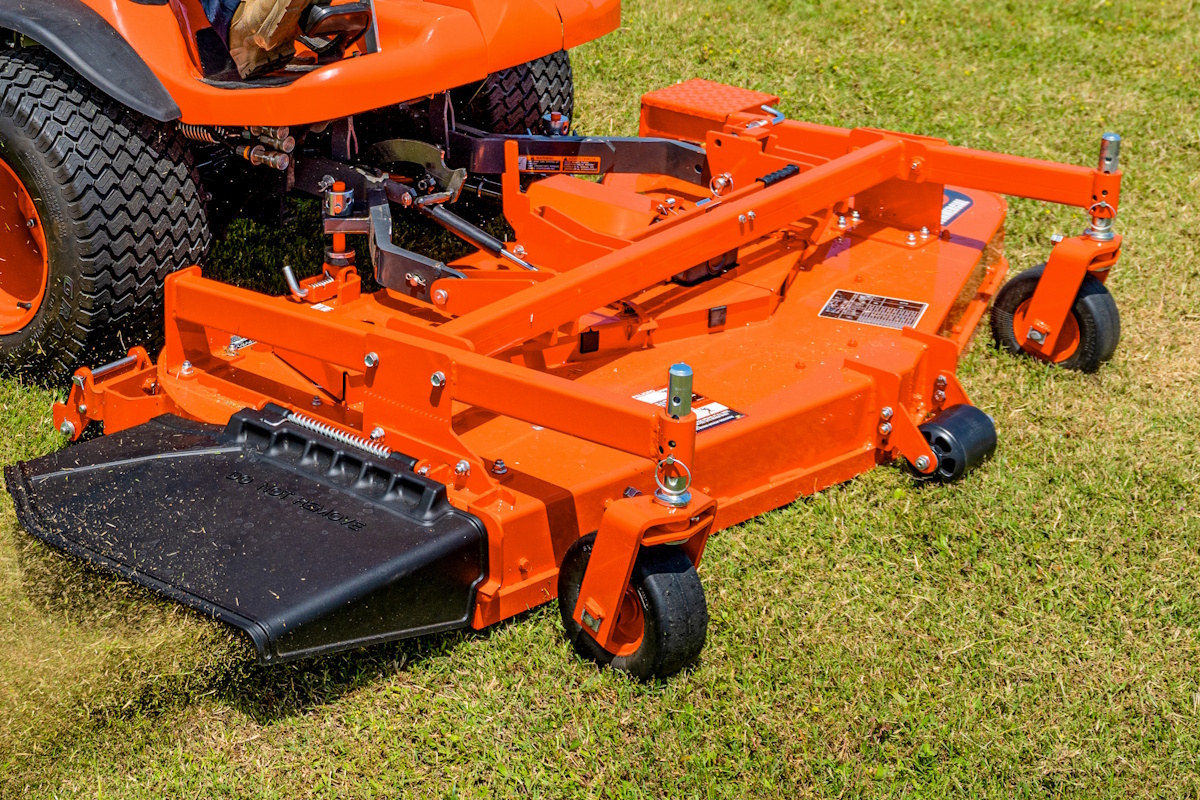

Professional Mower Deck

The Pro-Commercial mower deck features:

  • An inner baffle to prevent cut grass from discharging to the front
  • A larger discharge chute to improve discharge performance
  • Less power is needed to run the mower
  • Swivel anti-scalp wheels
  • 6.0” deep mower deck
  • Fabricated steel deck for years of reliable cutting performance with minimal maintenance.
  • Optional mulching kit
  • Optional rear discharge mower – 60" and 72" are available
 Side Discharge Rear Discharge
60” 72” 100” 60” 72”
F3990 X X X X X
F2690 X X - X X
F2690E X X - X X

Digital Panel

The LCD digital panel provides vital information about the F-Series mower at a glance, including DPF related information (F3710 only), engine speed, remaining fuel, water temperature and hour meter. The F3710’s digital panel features a battery level display to prevent unexpected downtime, as well as a white backlight for improved visibility.

Operator Comfort

A deluxe high-back seat with four separate adjustments, all to provide operators with a custom fit and optimal comfort. Easy operation is promoted through high/low speed lever and deck-lifting lever are positioned beside the operator's seat. Relocated parking brake position allows you to easily apply the parking brake with less effort.

High Lift Capacity

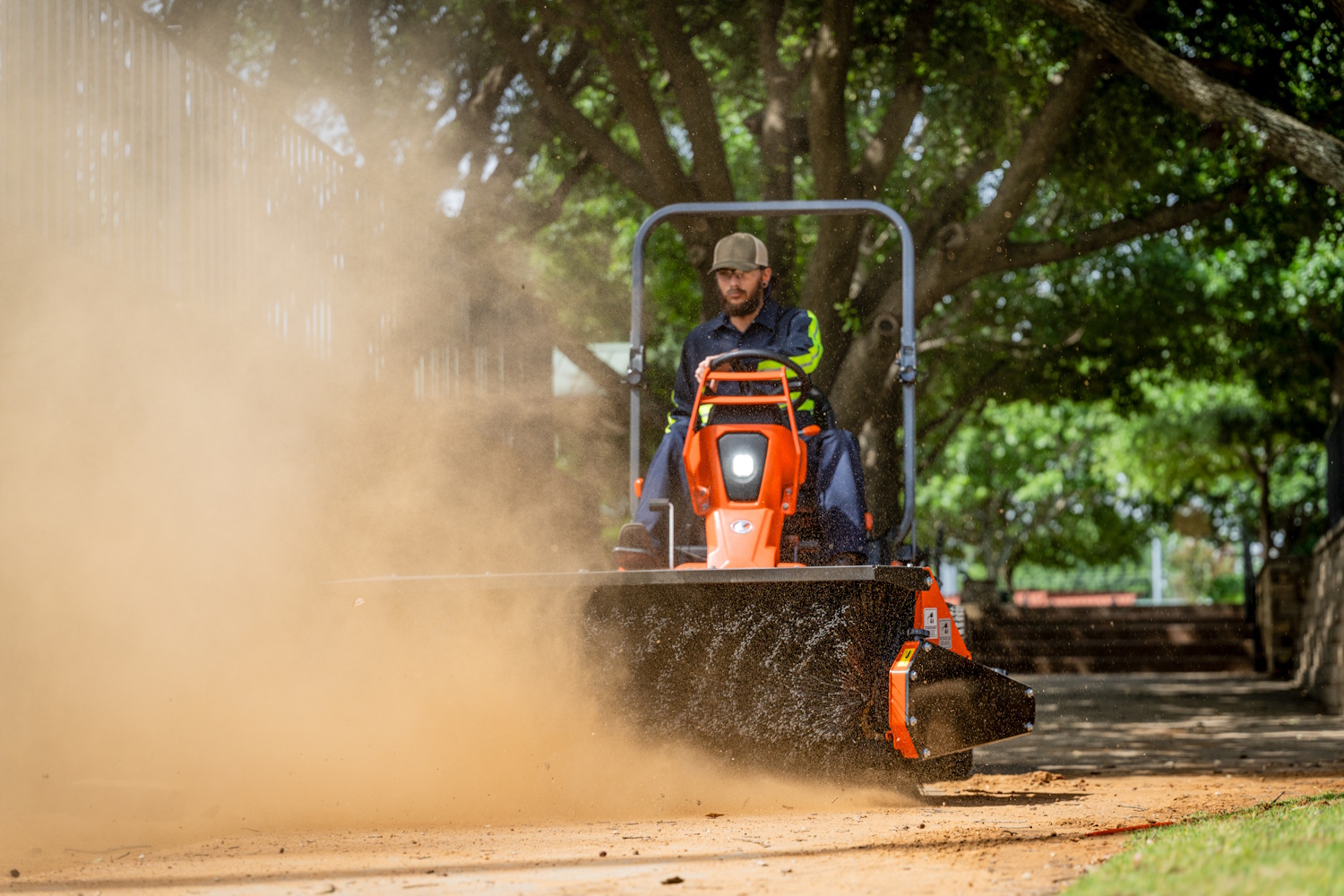

A high lifting capacity gives the F Series the versatility to handle an array of implements, including a grass catcher, snow blower, rotary sweeper, debris blower

PTO Shaft Drive

Shaft drive means no belts or pulleys – just smooth and direct power transfer from the engine to the deck and other PTO-driven attachments. Shaft drive also requires less maintenance and provides greater dependability.

F90_Tilt_Mower_Deck

90 Degree Tilt Mower Deck

The mower deck tilts a full 90 degrees, providing unobstructed access to the blades and deck underside for easier cleaning and maintenance.

F90_Easy_Maintenance

Easy Maintenance

Downtime is unproductive time, so the F Series is designed for quick and simple maintenance.

  • Quick-release engine cover
  • 90 degree tilt mower deck
  • Dual-element air cleaner
  • Integrated radiator screen
F90_Multi-Belt_Pulley

Multi-V-Belt and Steel Pulleys

In addition to providing greater wear resistance, the heavy-duty cast-iron pulleys and a multi-V-belt drive system effectively distribute and reduce tension while transmitting power to the mower blades. The multi-V-belt won’t twist or slip, thus reducing the chance of damage to the mower. You get more performance and power – and fewer problems.

Hydrostatic Transmission (HST)

A single HST pedal lets you easily change the direction as well as control the speed (4WD: 12.5 mph max. forward speed, 6.8 mph in reverse 2WD: 12.0 mph max. forward speed, 6.6 mph in reverse ), keeping your hands free for steering and implement control for increased productivity.

Large Capacity Fuel Tank

A large, 16.1 gallon fuel tank not only keeps you working longer between fuel stops, it also reduces the number of fueling stops needed to complete long jobs. That means more time working and less time fueling up.

Professional Mower Deck

The Pro-Commercial mower deck features:

  • An inner baffle to prevent cut grass from discharging to the front
  • A larger discharge chute to improve discharge performance
  • Less power is needed to run the mower
  • Swivel anti-scalp wheels
  • 6.0” deep mower deck
  • Fabricated steel deck for years of reliable cutting performance with minimal maintenance.
  • Optional mulching kit
  • Optional rear discharge mower – 60" and 72" are available
 Side Discharge Rear Discharge
60” 72” 100” 60” 72”
F3990 X X X X X
F2690 X X - X X
F2690E X X - X X

Digital Panel

The LCD digital panel provides vital information about the F-Series mower at a glance, including DPF related information (F3710 only), engine speed, remaining fuel, water temperature and hour meter. The F3710’s digital panel features a battery level display to prevent unexpected downtime, as well as a white backlight for improved visibility.

Operator Comfort

A deluxe high-back seat with four separate adjustments, all to provide operators with a custom fit and optimal comfort. Easy operation is promoted through high/low speed lever and deck-lifting lever are positioned beside the operator's seat. Relocated parking brake position allows you to easily apply the parking brake with less effort.

High Lift Capacity

A high lifting capacity gives the F Series the versatility to handle an array of implements, including a grass catcher, snow blower, rotary sweeper, debris blower

PTO Shaft Drive

Shaft drive means no belts or pulleys – just smooth and direct power transfer from the engine to the deck and other PTO-driven attachments. Shaft drive also requires less maintenance and provides greater dependability.

F90_Tilt_Mower_Deck

90 Degree Tilt Mower Deck

The mower deck tilts a full 90 degrees, providing unobstructed access to the blades and deck underside for easier cleaning and maintenance.

F90_Easy_Maintenance

Easy Maintenance

Downtime is unproductive time, so the F Series is designed for quick and simple maintenance.

  • Quick-release engine cover
  • 90 degree tilt mower deck
  • Dual-element air cleaner
  • Integrated radiator screen
F90_Multi-Belt_Pulley

Multi-V-Belt and Steel Pulleys

In addition to providing greater wear resistance, the heavy-duty cast-iron pulleys and a multi-V-belt drive system effectively distribute and reduce tension while transmitting power to the mower blades. The multi-V-belt won’t twist or slip, thus reducing the chance of damage to the mower. You get more performance and power – and fewer problems.

Hydrostatic Transmission (HST)

A single HST pedal lets you easily change the direction as well as control the speed (4WD: 12.5 mph max. forward speed, 6.8 mph in reverse 2WD: 12.0 mph max. forward speed, 6.6 mph in reverse ), keeping your hands free for steering and implement control for increased productivity.

Large Capacity Fuel Tank

A large, 16.1 gallon fuel tank not only keeps you working longer between fuel stops, it also reduces the number of fueling stops needed to complete long jobs. That means more time working and less time fueling up.


Specs & Compare

Compare Kubota Models
F2510
23.3 HP
MSRP AS LOW AS§
$24,199.00
  • Deck Size
    60" and 72" Side and Rear Discharge
  • Engine
    D1105-E4-FM-4U
  • HP
    23.3
  • Transmission
    HST
  • Deck Drive
    Shaft
  • Fuel Capacity
    16.1 gal
  • Traveling Speed
    F 12 - 12.4 / R 6.6 - 6.8 mph
  • Rear Tire
    16 x 6.5-8 / 18 x 9.5-8
  • Front Tire
    23 x 10.5-12 / 24 x 12-12
  • Build
  •

  •

  •

  •

  •

  •

  •

  •

  •

§The Manufacturer's Suggested Retail Price excludes tax, dealer fees, and optional equipment. The equipment shown is for illustrative purposes only and may not be base equipment.
