R430

Wheel Loaders

For Competitive Pricing
Refer to Dealer
0 0 60 Offer Badge

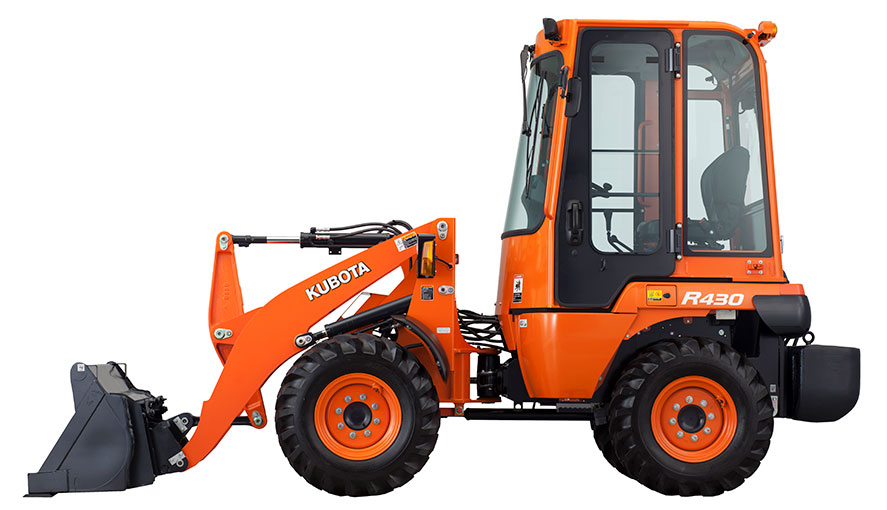

Compact design with impressive power allows the R430 to get the work done where larger loaders can't  fit. The R430 also delivers big on comfort in every season with an available enclosed cab featuring heat and A/C.

Features & Details

IMG_9005

Powerful Kubota Engine

The R430 boasts a gross rating of 47.6 HP (SAE J 1995) that provides the extra muscle needed for all of the chores that the loader is capable of performing.
IMG_9092

Comfortable Work Station

Comfort and convenience are the keys to operator efficiency. The working station is mounted on rubber ISO mounts to minimize sounds and vibrations. Increase your comfort level in all seasons with an enclosed heated and A/C cooled cab.

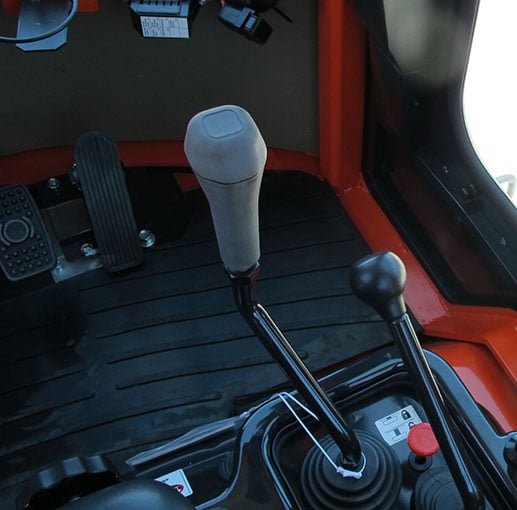

r430 transmission

Load Sensing Transmission

As the travel and loading conditions change, the R430's transmission automatically shifts to compensate to provide maximum torque and speed for efficient ground speed operation. The manual switch can be operated with a convenient button located on the loader control level.

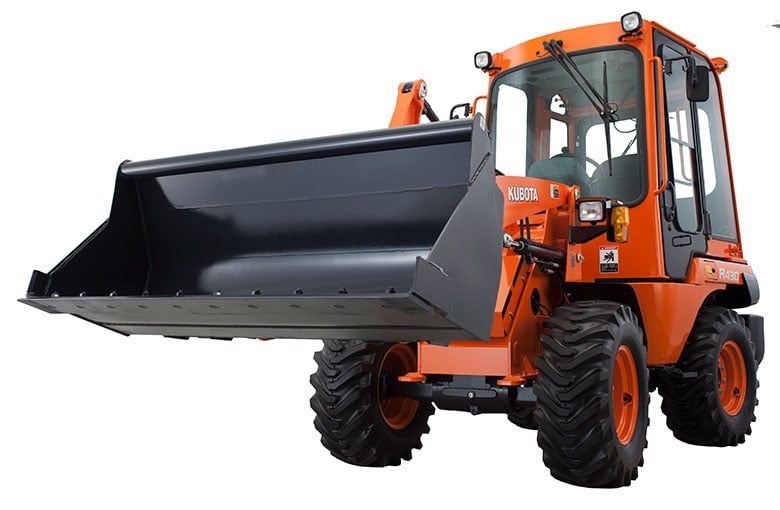

IMG_8950

Limited Slip Differential

Mud, sand, snow are no problem for the R430's front limited slip axle. If a front wheel slips, the power is transferred to the opposite wheel to restore traction.
IMG_9160

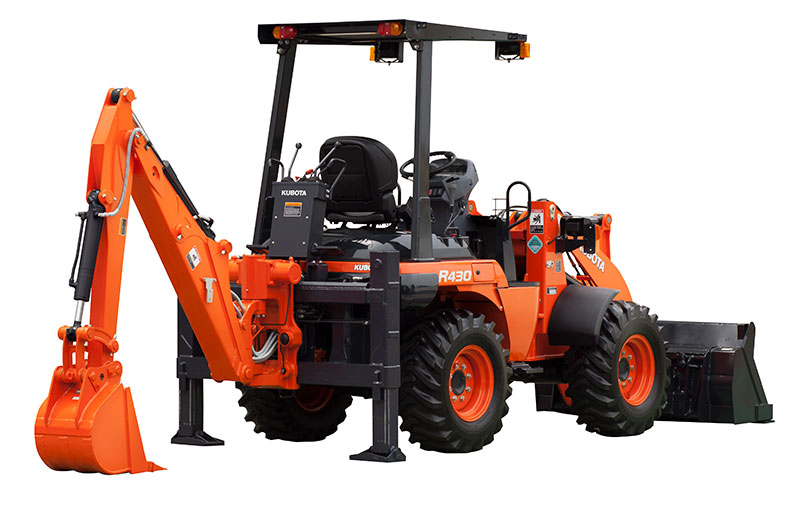

Rear Backhoe

The R430 takes versatility to a new level in compact wheel loaders with an optional backhoe attachment. The RBK4009SA backhoe allows the operator to dig a trench up to seven feet deep and 24 inches wide.

SPECS & COMPARE: Kubota Models

R430

47.6 HP. Compact design with impressive power.

SEE DEALERSHIP FOR PRICE
  • Engine
    D1830-CR-TIE4-WL5
  • Emission Certification
    Tier 4
  • Output (SAE J1995 gross) HP (kW)/rpm
    47.6 (35.5) / 2600
  • Output (SAE J1349 net) HP (kW)/rpm
    44.5 (33.2) / 2600
  • Displacement (cu. in.)
    11 (1826)
  • Transmission Type
    Hydrostatic transmission
  • Overall Length
    14' 4" (4355)
  • Overall Height
    8' 3" (2515)
  • Overall Width
    4' 12" (1520)
  • Ground Clearance (in.)
    11" (280)
  • Auxiliary Hydraulics Flow Rate (GPM)
    11.1 (42.1)
  • Auxiliary Hydraulic Pressure (psi)
    2697 (18.6)
  • Standard Tire Size
    12.5/70-16-8PR
  • Traveling Speed: High (mph)
    12.4 (20.0)
  • Traveling Speed: Low (mph)
    3.0 (4.8)
  • Traction Force (lbs.)
    5485 (24.4)
  • Front/Rear Axle Traction Lock
    Limited slip differential
  • Articulation Angle (deg.)
    40 (each direction)
  • Angle of Rear Frame Oscillation (deg.)
    ±8
  • Loader Clearance Circle ft.in. (mm)
    Loader Clearance Circle ft.in. (mm) 12' 1" (3695)
  • Turning Radius Track Circle ft.in. (mm)
    10' 1" (3085)
  • Brakes (Service)
    Enclosed wet disc
  • Tipping Load (Straight)
    5335 (2420)/5743 (2605) / 3494 (1585)/3770 (1710)
  • Tipping Load (Full Turn)
    4596 (2085)/4949 (2245) / 3009 (1365)/3251 (1475)
  • Rated Operating Capacity (ROC)
    2298 (1042)/2474 (1122) / 1504 (682)/1625 (737)
  • Standard Bucket Capacity (yd3)
    0.5
  • Bucket Breakout Force (lbs.)
    5215 (23.2)
  • Lifting Capacity at Ground Level lbs. (kN)
    3687 (16.4)
  • Loader Raise / Lower Time (sec.)
    4.4 / 3.3
  • Fuel Tank (gal.)
    14.3 (54)
  • Hydraulic System (gal.)
    15.3 (58)
  • Hydraulic Reservoir (gal.)
    11.1 (42)
  • Operating Weight lbs. (kg)
    7758 (3519) / 8232 (3734)
  • Hinge Pin Height
    9'2"
  • Dump Height at Fully Raised Position
    7'2"
  • Maximum Dump Angle
    44 degrees
  • Reach Fully Raised at Maximum Dump Angle
    2'9"
  • Steering Angle
    40 degrees
  • Frame Oscillation Angle
    8 degrees
  • Build
  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •
