U27-4

Compact Excavators

For Competitive Pricing
Refer to Dealer

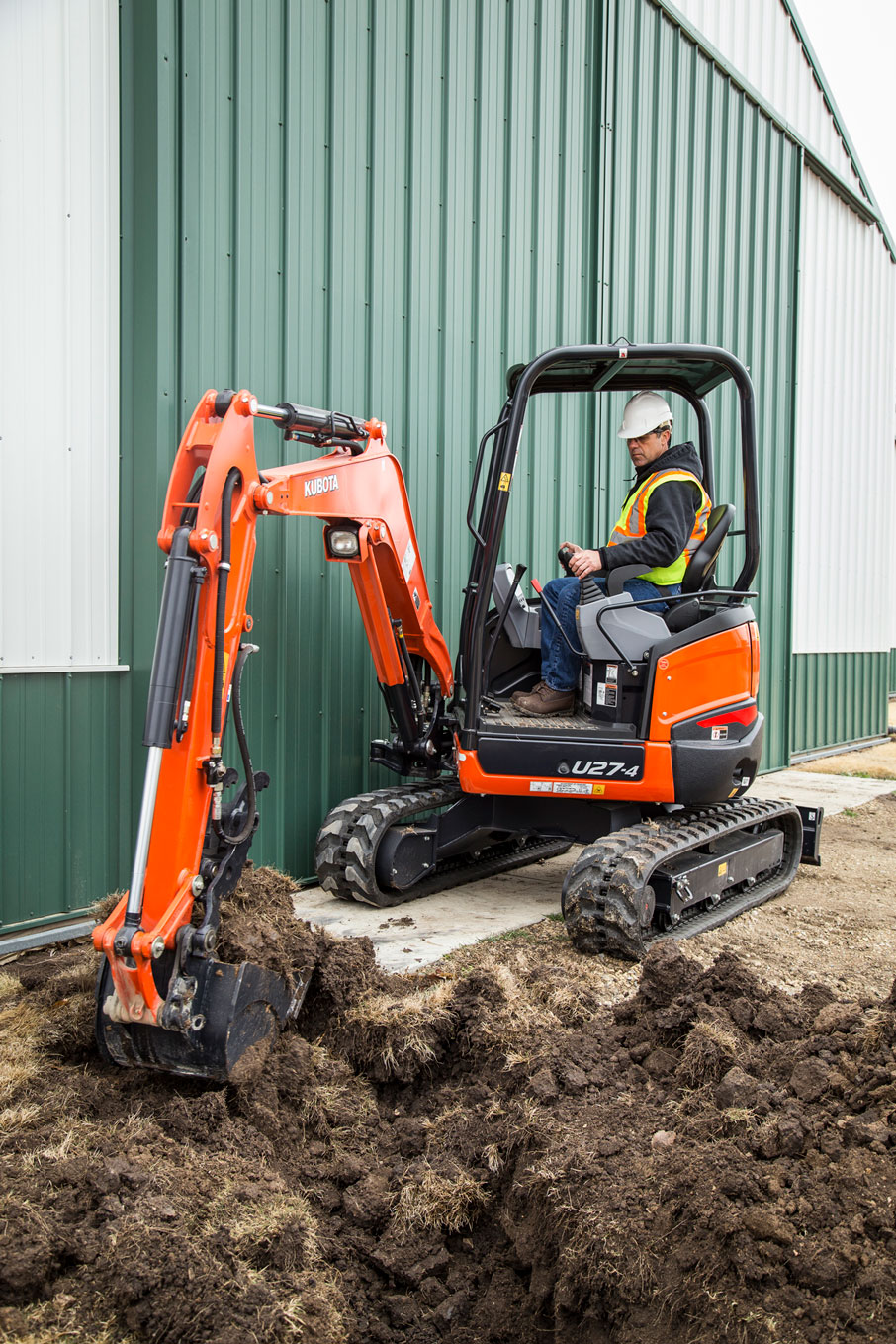

Versatility comes naturally to the Kubota U27-4, designed to assist you in a wide variety of tasks on the jobsite. With front pin bushing and a centralized swivel bearing lubrication, you’ll operate the excavator’s arm with ease and use its advanced hydraulics. Ergonomic placement of controls keeps things simple for the operator and with 20.8 horsepower available, you’re going to be taking on plenty of jobs behind the controls.  Kubota is the world’s #1 selling compact excavator for 19 years.*

*According to 2022 data from Off-Highway Research including all Kubota Group brand sales.

Read Disclaimer

Features & Details

Clean Running Kubota Tier 4 Engine

Kubota excavators are all powered by Kubota Tier 4 emission engines. The modern engine design maximizes digging and lifting performance, delivers minimized noise and vibration and meets the latest engine emission regulation.

Two Speed Travel

All Kubota excavators have a two speed drive that allows for efficient machine maneuverability and backfill operations.

Changeable Control Pattern

Convenient Two-pattern Selection System (TPSS) allows you to change between ISO and SAE operating patterns with a quick flip of the TPSS switch – without tools or leaving your seat.

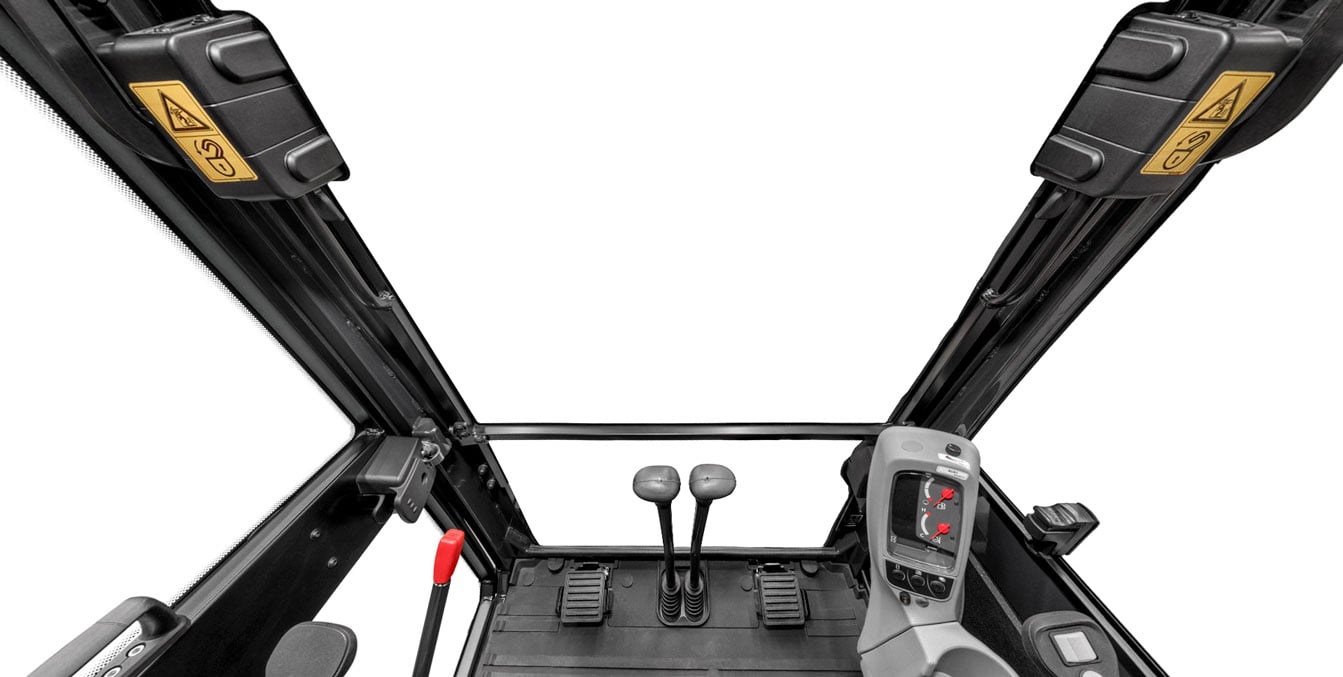

Comfort & Convenience

  • A spacious operator station designed for greater comfort, with a fully flat floor for more legroom
  • Digital panel with easy access, simple settings and easy-to-read indicators and alerts
  • Easy cab entry and exit
  • Easy-open front slide window
  • Wrist rest
  • Cup holder
  • Optional cab

Serviceability

  • Front pin bushings to help maximize durability
  • Centralized swivel bearing lubrication
  • Protected cylinder hoses
  • Steel hood panels
  • One-sided engine maintenance
  • Wide hood openings for easy access to engine and other vital components

Auxiliary

  • Proportional flow control of auxiliary circuit (AUX1) and maximum oil flow setting – you can operate a larger variety of auxiliary attachments than ever before
  • Proportional AUX flow switch – a convenient bi-directional switch enables easy operation of hydraulic thumbs and other hydraulic attachments such as augers and breakers

SPECS & COMPARE: Kubota Models

U27-4

20.8 HP. Comfortable, nimble and ready to help unlock your full potential.

SEE DEALERSHIP FOR PRICE
  • Engine Model
    Kubota D1105-BH
  • Horsepower (gross)
    20.8
  • Displacement (cu. in.)
    68.5
  • Overall Length, ft (mm)
    13ft 6in
  • Overall Height, ft (mm)
    7ft 11in
  • Overall Width, ft (mm)
    4ft 11in
  • Min. Ground Clearance, in (mm)
    12.1in
  • Crawler Length, ft (mm)
    6ft 6.3in (1990)
  • Pump Capacity, GPM (LPM)
    20.3
  • Auxiliary Hydraulics Flow Rate, GPM (LPM)
    12.7
  • Bucket Breakout Force, lbs (kgf)
    7014
  • Arm Breakout Force, lbs (kgf)
    2777 (1990)
  • Traveling Speed: High, mph (kph)
    1.6 2.7
  • Traveling Speed: Low, mph (kph)
    1.6
  • Ground Contact Pressure psi, kgf (cm2)
    3.321
  • Blade Width, ft (mm)
    59.1in
  • Blade Height, in (mm)
    11.8in
  • Hydraulic Oil Reservoir / System, gal (l)
    5.8 / 9.7
  • Fuel Reservoir, gal (l)
    8.7
  • Operating Weight, lbs (kg)
    5625 (2550)
  • Build
  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •
§The Manufacturer's Suggested Retail Price excludes tax, dealer fees, and optional equipment. The equipment shown is for illustrative purposes only and may not be base equipment.
