KX040-5

Compact Excavators

MSRP As Low As§
$65,455.00
Cab option available, see dealer for pricing

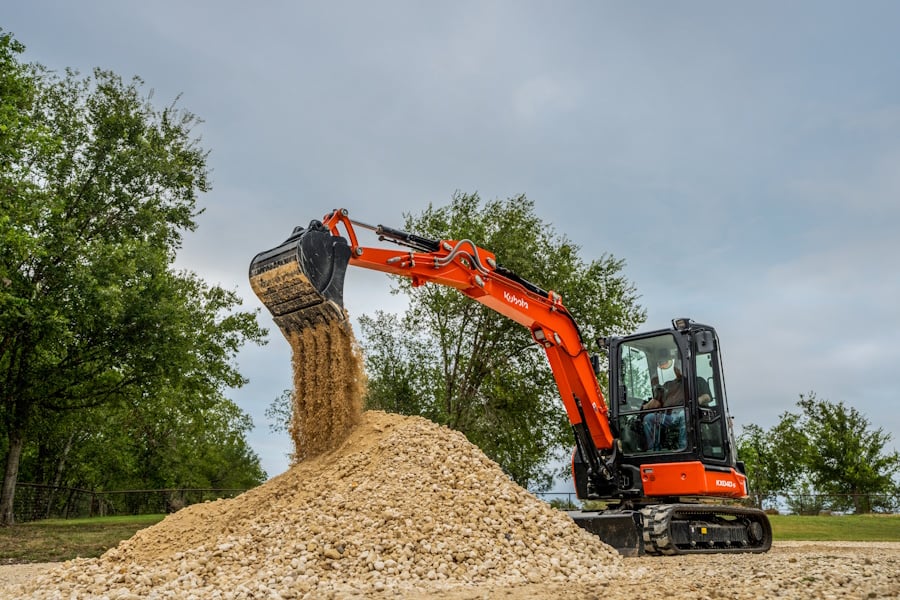

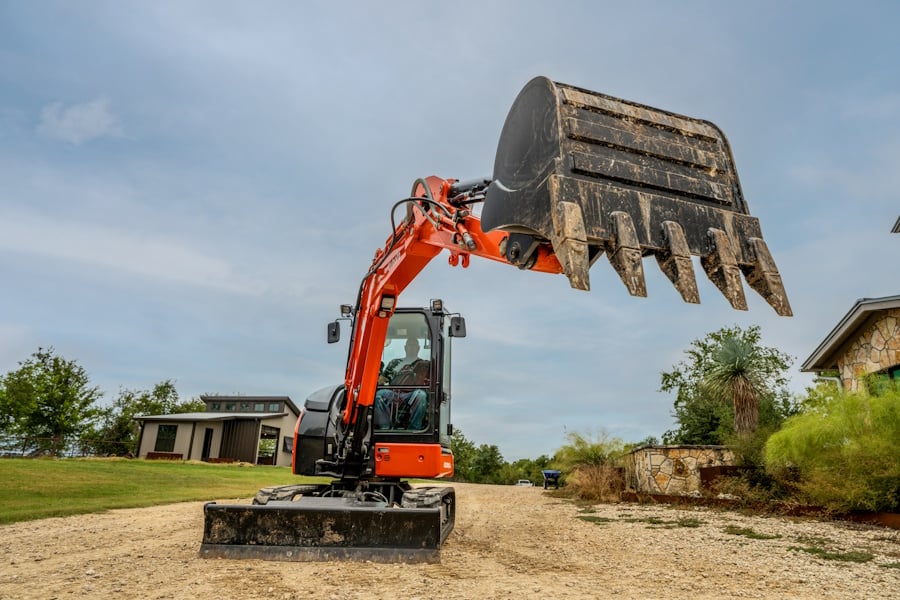

The KX040-5 replaces the popular KX040-4 with a wide range of performance, comfort and productivity features. Updated with all new interior design and added productivity features like engine speed sensing, you'll be equipped get the job done right, while operating in comfort. But that's not all, with the option of a straight, angle, or 6-in-1 blade this machine can fit any job site. To top it all off this compact excavator comes standard with KubotaNOW telematics, giving you complete visibility of your machine. Kubota is the world’s #1 selling compact excavator for 20 years.*

*According to 2023 data from Off-Highway Research including all Kubota Group brand sales.

Read Disclaimer

Special Offers

CompactExcavators_Models_KXSeries
EXCAVATORS
Save Up to $8,500 or Pay 0% A.P.R. For Up to 60 Months With 0% Down on KX and U Series!*
Details
Farmer Veteran Coalition Rebate
Customer instant rebate for Farmer Veteran Coalition members.
Details
Implement Stand Alone Financing
Stand Alone Financing Installment Program
Details

Features

KX040-5

Keyless start

KX040-5

7 inch full color LCD monitor with jog dial controls

KX040-5

Rearview camera - optional

KX040-5 LED Light

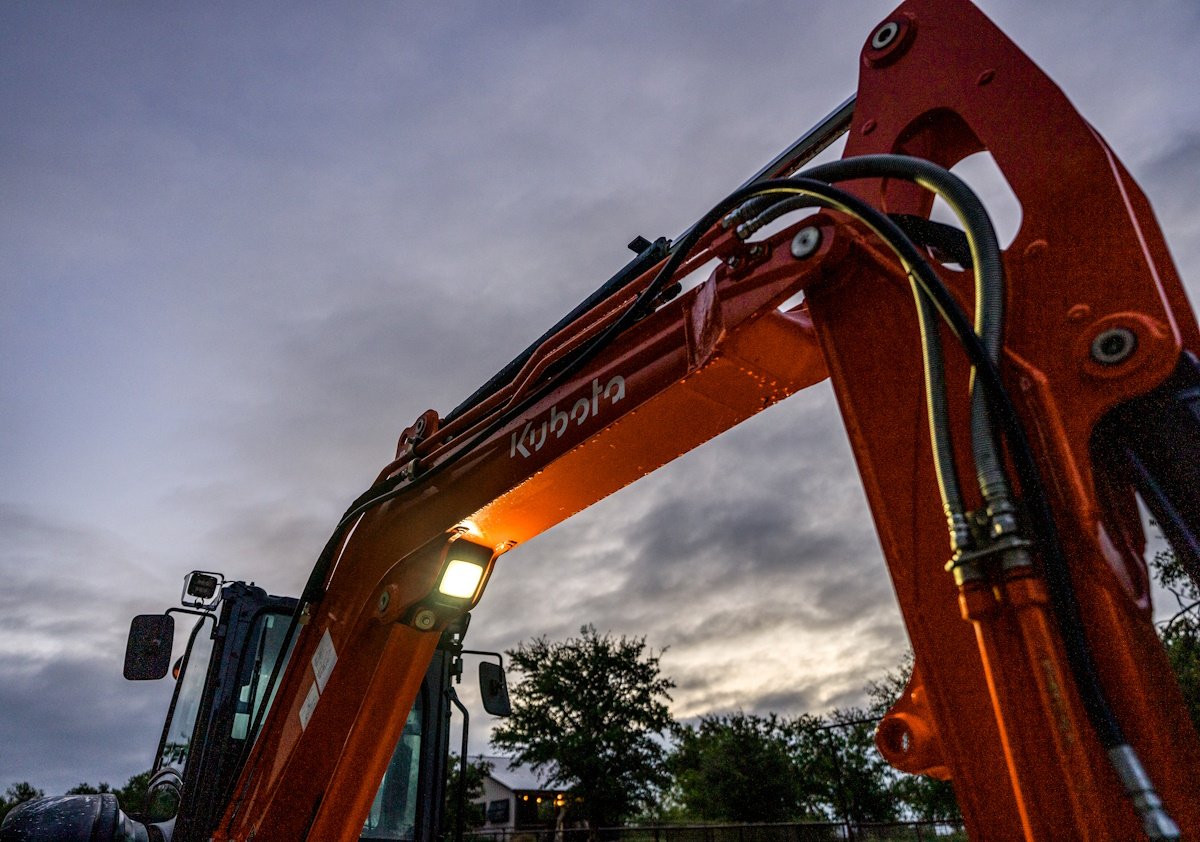

LED work lights

Enclosed cab or open canopy ROPs options

KX040-5

Quieter cab for lower operator noise

KX040-5

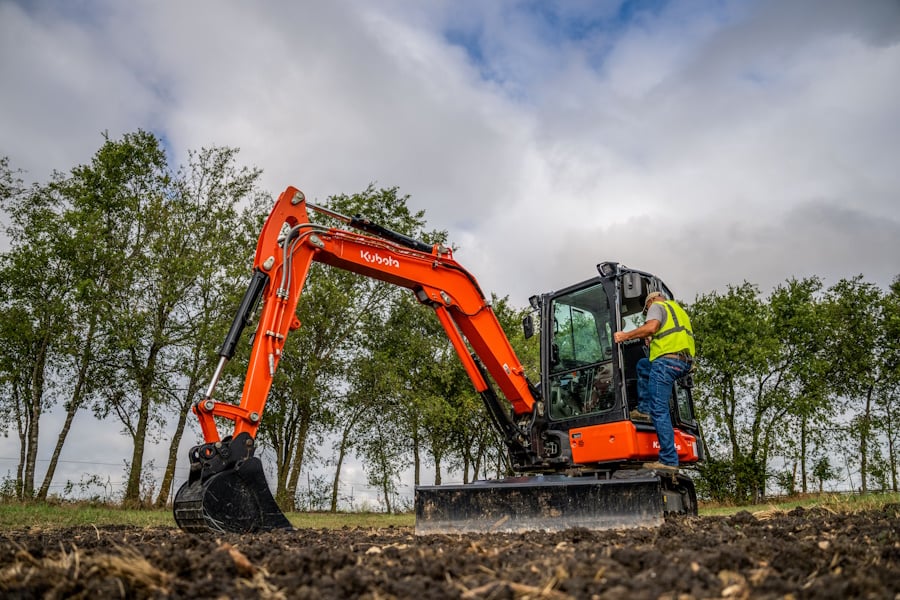

6-way dozer blade, angle blade and straight blade options available

KX040-5

Redesign to the AUX hydraulic system provides easier multifunction capabilities

KX040-5

KubotaNOW telematics pre wired at factory

KX040-5

Keyless start

KX040-5

7 inch full color LCD monitor with jog dial controls

KX040-5

Rearview camera - optional

KX040-5 LED Light

LED work lights

Enclosed cab or open canopy ROPs options

KX040-5

Quieter cab for lower operator noise

KX040-5

6-way dozer blade, angle blade and straight blade options available

KX040-5

Redesign to the AUX hydraulic system provides easier multifunction capabilities

KX040-5

KubotaNOW telematics pre wired at factory


Specs & Compare

Compare Kubota Models
KX040-5
40.3 HP
MSRP AS LOW AS§
$65,455.00
  • Engine Model
    Kubota D1803-CR-TE5-BH5 / D1803-CR-TE5-BH6
  • Horsepower (gross)
    40.3
  • Displacement (cu. in.)
    111.4
  • Overall Length, ft (mm)
    16ft 8.2in (5085)
  • Overall Height, ft (mm)
    8ft 1.6in (2480) / 8ft 2in (2490)
  • Overall Width, ft (mm)
    5ft 6.9in - 5ft 10.9in (1700-1800)
  • Min. Ground Clearance, in (mm)
    13in (330)
  • Crawler Length, ft (mm)
    7'1.6in (2175)
  • Pump Capacity, GPM (LPM)
    29.1 (110.0)
  • Auxiliary Hydraulics Flow Rate, GPM (LPM)
    17.2 (65) / 9.8 (37)
  • Bucket Breakout Force, lbs (kgf)
    9397 (4262)
  • Arm Breakout Force, lbs (kgf)
    4114 (1866)
  • Traveling Speed: High, mph (kph)
    3.1 (5.0)
  • Traveling Speed: Low, mph (kph)
    1.7 (2.7)
  • Ground Contact Pressure psi, kgf (cm2)
    Rubber: 4.5 (31.1) / 4.7 (32.1), Steel: 4.6 (31.5) / 4.7 (32.5), Angle Blade Rubber: 4.7 (32.6) / 4.9 (33.6), Angle Blade Steel: 4.8 (32.9) / 4.9 (33.9), Rubber canopy/cab: 4.9 (33.8) / 5.0 (34.8), Steel canopy/cab: 4.9 (34.1) / 5.1 (35.1)
  • Blade Width, ft (mm)
    5ft 6.9in (1700) / 5ft 10.9in (1800), Angle blade: 5ft 10.9in (1800)
  • Blade Height, in (mm)
    13.8in (350) / 1ft 3.2in (385), Angle Blade: 1ft 3.2in (385)
  • Hydraulic Oil Reservoir / System, gal (l)
    9.8 (37) / 17.7 (65)
  • Fuel Reservoir, gal (l)
    17.4 (66)
  • Operating Weight, lbs (kg)
    Rubber: 9182-9480 (4165-4300) / 9965-10251 (4520-4650) Steel: 9348-9645 (4240-4375) / 10119-10417 (4590-4725), Angle Blade Rubber: 9623 (4365) / 9910 (4495), Angle Blade Steel: 9777 (4435) / 10075 (4570)
  • Build
  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

§The Manufacturer's Suggested Retail Price excludes tax, dealer fees, and optional equipment. The equipment shown is for illustrative purposes only and may not be base equipment.
