KX040-4

Compact Excavators

For Competitive Pricing
Refer to Dealer
0 0 60 2300 Offer Badge

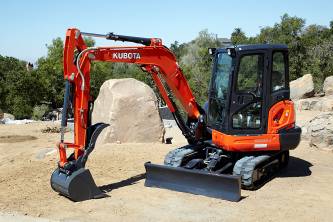

Digging isn’t easy, but the Kubota KX040-4 will make it feel like it is. With 40.4 horsepower and an available cab for ultimate comfort, you’d be silly to ignore the KX040-4. Experience elite versatility, maneuverability and power like never before, and you’ll know what we mean when we talk about the Kubota difference. Read Disclaimer

Features & Details

h_MG_4396_KX033

Angle Blade Optional Hydraulic Angle Blade*

Save time and work more efficiently. With a simple movement of the new thumb operated rocker switch on the dozer lever, the hydraulic angle blade (optional) can be angled to the right or left to push soil to the side as the machine moves forward, eliminating the need for repetitive repositioning at right angles when backfilling trenches.

*Available on KX033-4, KX040-4, KX057-5, KX080-4S

Hydraulic 6-in-1 Blade

Hydraulic 6-in-1 Blade

Kubota's hydraulic 6-in-1 Blade can be angled right and left – and now, tilted as well. This blade enables six different positions: neutral, float-up, left-end-up, right-end-up, left-end-forward and right-end-forward. This feature makes leveling and backfilling work incredibly easy, even on inclines and uneven terrain, making you more productive and more efficient.

*Available on KX040-4

KX018-4_Cat No.8794-01-EU_Page_3_Image_0004

Clean Running Kubota Tier 4 Engine

Kubota excavators are all powered by Kubota Tier 4 emission engines. The modern engine design maximizes digging and lifting performance, delivers minimized noise and vibration and meets the latest engine emission regulation.

auto downshift

Two Speed Travel

All Kubota excavators have a two speed drive that allows for efficient machine maneuverability and backfill operations.

TPSS__

Changeable Control Pattern

Convenient Two-pattern Selection System (TPSS) allows you to change between ISO and SAE operating patterns with a quick flip of the TPSS switch – without tools or leaving your seat.

h_MG_4510-KX033

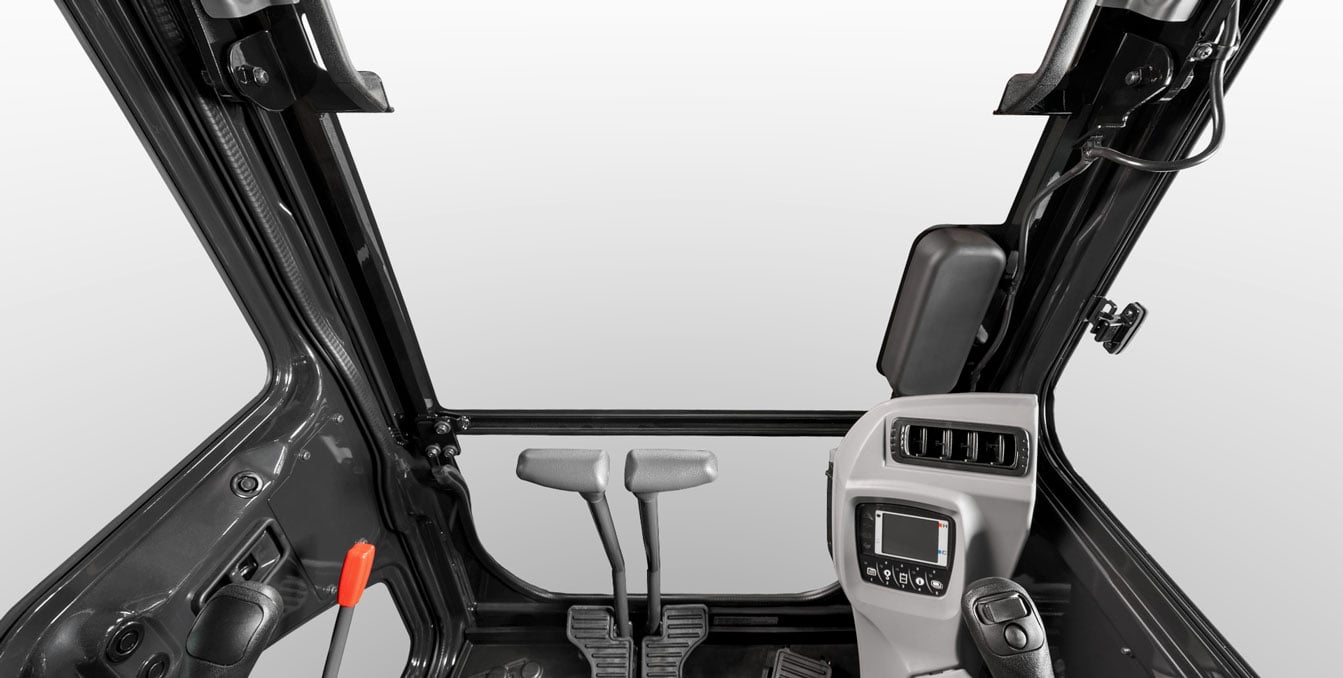

Comfort & Convenience

  • A spacious operator station designed for greater comfort, with a fully flat floor for more legroom
  • Digital panel with easy access, simple settings and easy-to-read indicators and alerts
  • Easy cab entry and exit
  • Easy-open front slide window
  • Wrist rest
  • Cup holder
  • Optional cab
IMG_5823

Serviceability

  • Front pin bushings to help maximize durability
  • Centralized swivel bearing lubrication
  • Protected cylinder hoses
  • Steel hood panels
  • One-sided engine maintenance
  • Wide hood openings for easy access to engine and other vital components
Right-Joystick-

Auxiliary

  • Proportional flow control of auxiliary circuit (AUX1) and maximum oil flow setting – you can operate a larger variety of auxiliary attachments than ever before
  • Proportional AUX flow switch – a convenient bi-directional switch enables easy operation of hydraulic thumbs and other hydraulic attachments such as augers and breakers

SPECS & COMPARE: Kubota Models

KX040-4

40.4 HP. Versatile for any job, durable for years to come.

SEE DEALERSHIP FOR PRICE
  • Engine Model
    Kubota D1803-CR-TE4
  • Horsepower (gross)
    40.4
  • Displacement (cu. in.)
    111.4
  • Overall Length
    16ft 8.2in (5085)
  • Overall Height
    8ft 1.8in (2485) / 8ft 1.8in (2485)
  • Overall Width
    5ft 6.9in - 5ft 10.9in (1700-1800)
  • Min. Ground Clearance
    12.99in (330)
  • Crawler Length
    7'1.6in (2175)
  • Pump Capacity (GPM)
    24.4 (92.4)
  • Auxiliary Hydraulics Flow Rate (GPM)
    17.2 (65) / 9.8 (37)
  • Bucket Breakout Force (lbs.)
    9535 (4325)
  • Arm Breakout Force (lbs.)
    4112 (1865)
  • Traveling Speed: High (mph)
    1.8 (2.9)
  • Traveling Speed: Low (mph)
    3.1 (5.0)
  • Ground Contact Pressure (psi)
    Rubber: 4.53 (31.2) / 4.68 (32.3), Steel: 4.61 (31.8) / 4.76 (32.8), Angle Blade Rubber: 4.70 (32.4) / 4.86 (33.5), Angle Blade Steel: 4.78 (33.0) / 4.93 (34.0), Rubber canopy/cab: 4.87 (33.6) / 5.02 (34.6), Steel canopy/cab: 4.95 (34.1) / 5.10 (35.2)
  • Blade Width
    5ft 6.9in (1700) / 5ft 10.9in (1800), Angle blade: 5ft 10.9in (1800)
  • Blade Height
    1ft 1.8in (350) / 1ft 3.2in (385), Angle Blade: 1ft 3.2in (385)
  • Hydraulic Oil Reservoir / System
    11.1 (42) / 19.6 (74)
  • Fuel Reservoir
    16.9 (64)
  • Operating Weight lbs. (kg)
    Rubber: 9195-9900 (4170-4490) / 9500-10210 (4310-4630) Steel: 9350-10050 (4240-4560) / 9655-10360 (4380-4700), Angle Blade Rubber: 9900 (4490) / 10210 (4630), Angle Blade Steel: 10050 (4560) / 10360 (4700)
  • Build
  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •
