KX033-4

Compact Excavators

For Competitive Pricing
Refer to Dealer
0 0 60 Offer Badge
With an available Extended Dipper and optional hydraulic angle blade, the Kubota KX033-4 is unlike any compact excavator you’ve ever seen before. Dig comfortably, with a spacious cab, and make sure that you can get the job done the right way, every time. Once you sit down behind the controls of the KX033-4, you’ll never want to step away.

Features & Details

h_MG_4396_KX033

Angle Blade Optional Hydraulic Angle Blade*

Save time and work more efficiently. With a simple movement of the new thumb operated rocker switch on the dozer lever, the hydraulic angle blade can be angled to the right or left to push soil to the side as the machine moves forward, eliminating the need for repetitive repositioning at right angles when backfilling trenches.

*Available on KX033-4, KX040-4, KX057-4, KX080-4S

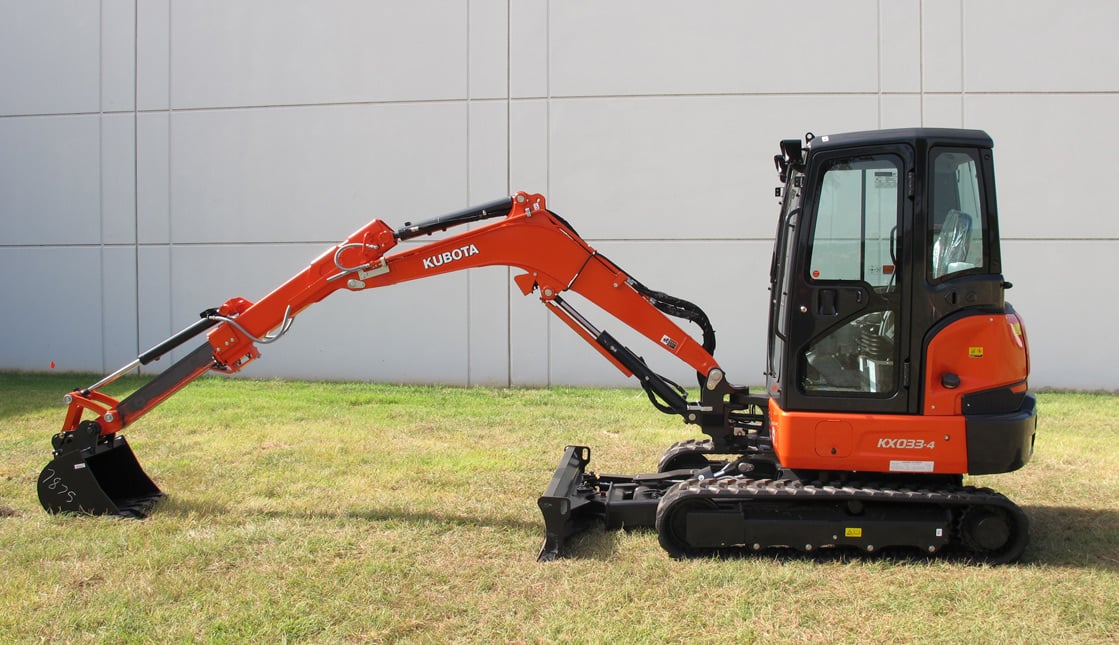

extendable dipper

Extendedable Dipper

Increase the total working range of the popular KX033-4. The extendable dipper extension increases the reach by 16” and dig depth by 20” compared to the standard KX033-4.

*Available on KX033-4

KX018-4_Cat No.8794-01-EU_Page_3_Image_0004

Clean Running Kubota Tier 4 Engine

Kubota excavators are all powered by Kubota Tier 4 emission engines. The modern engine design maximizes digging and lifting performance, delivers minimized noise and vibration and meets the latest engine emission regulation.

auto downshift

Two Speed Travel

All Kubota excavators have a two speed drive that allows for efficient machine maneuverability and backfill operations.

TPSS__

Changeable Control Pattern

Convenient Two-pattern Selection System (TPSS) allows you to change between ISO and SAE operating patterns with a quick flip of the TPSS switch – without tools or leaving your seat.

h_MG_4510-KX033

Comfort & Convenience

  • A spacious operator station designed for greater comfort, with a fully flat floor for more legroom
  • Digital panel with easy access, simple settings and easy-to-read indicators and alerts
  • Easy cab entry and exit
  • Easy-open front slide window
  • Wrist rest
  • Cup holder
  • Optional cab
IMG_5823

Serviceability

  • Front pin bushings to help maximize durability
  • Centralized swivel bearing lubrication
  • Protected cylinder hoses
  • Steel hood panels
  • One-sided engine maintenance
  • Wide hood openings for easy access to engine and other vital components
Right-Joystick-

Auxiliary

  • Proportional flow control of auxiliary circuit (AUX1) and maximum oil flow setting – you can operate a larger variety of auxiliary attachments than ever before
  • Proportional AUX flow switch – a convenient bi-directional switch enables easy operation of hydraulic thumbs and other hydraulic attachments such as augers and breakers

SPECS & COMPARE: Kubota Models

KX033-4

24.8 HP. Outstanding capability and hungry for performance.

SEE DEALERSHIP FOR PRICE
  • Engine Model
    Kubota D1703M-DI-E4
  • Horsepower (gross)
    24.8
  • Displacement (cu. in.)
    100.5 (1647)
  • Overall Length
    15'6" (4730)
  • Overall Height
    8'1" (2480)
  • Overall Width
    5'1" (1550)
  • Min. Ground Clearance
    11.4 (290)
  • Crawler Length
    6'10.6" (2100)
  • Pump Capacity (GPM)
    10.5 (39.6) x 2 / 5.5 (20.9) x 1
  • Auxiliary Hydraulics Flow Rate (GPM)
    15.8 (60)
  • Bucket Breakout Force (lbs.)
    8138 (3694)
  • Arm Breakout Force (lbs.)
    3867 (1756)
  • Traveling Speed: High (mph)
    1.9 (3.0)
  • Traveling Speed: Low (mph)
    2.9 (4.6)
  • Ground Contact Pressure (psi)
    Canopy rubber/steel: 4.365 (0.307) / 4.482 (0.315), Cab rubber/steel: 4.559 (0.321) / 4.676 (0.329), Angle Blade canopy rubber/steel: 4.583 (0.322) / 4.700 (0.331) Angle Blade cab rubber/steel: 4.776 (0.336) / 4.894 (0.344)
  • Blade Width
    5'1" (1550)
  • Blade Height
    1'1.5" (345), Angle Blade: 1'3.2" (385)
  • Hydraulic Oil Reservoir / System
    11.8 (44.6) / 16.1 (61)
  • Fuel Reservoir
    12.4 (46.9)
  • Operating Weight lbs. (kg)
    Canopy rubber/steel: 7420 (3365) / 7616 (3454) Cab rubber/steel: 7742 (3511) / 7938 (3600), Angle Blade canopy rubber/steel: 7781 (3529) / 7978 (3618), Angle Blade cab rubber/steel: 8104 (3675) / 8300 (3764)
  • Build
  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •
§The Manufacturer's Suggested Retail Price excludes tax, dealer fees, and optional equipment. The equipment shown is for illustrative purposes only and may not be base equipment.
