K008-5

Compact Excavators

For Competitive Pricing
Refer to Dealer
The new Kubota K008-5 ultra-compact excavator lets you power through jobs with efficiency and versatility. You’ll enjoy a robust 10.3 horsepower rating, dominant hydraulic performance, two-speed travel and exceptional digging depth and height, as well as Kubota’s renowned durability. Let’s get to work. Read Disclaimer

Features & Details

Variable Width Undercariage

Variable Width Undercarriage*

To enable passage through narrow spaces such as doorways and gates, the adjustable width track frame can be reduced by simply operating a single lever. Plus, changing the blade width is as easy as removing one pin by hand.

*Available on K008-3, K008-5, U10-5, KX018-4

KX018-4_Cat No.8794-01-EU_Page_3_Image_0004

Clean Running Kubota Tier 4 Engine

Kubota excavators are all powered by Kubota Tier 4 emission engines. The modern engine design maximizes digging and lifting performance, delivers minimized noise and vibration and meets the latest engine emission regulation.

auto downshift

Two Speed Travel

All Kubota excavators have a two speed drive that allows for efficient machine maneuverability and backfill operations.

TPSS__

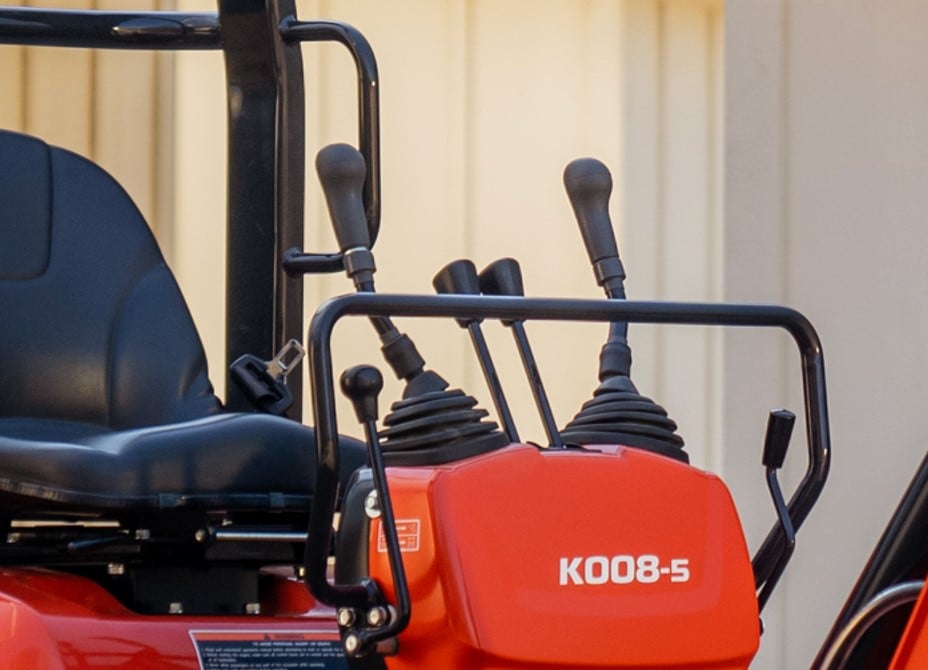

Changeable Control Pattern

Convenient Two-pattern Selection System (TPSS) allows you to change between ISO and SAE operating patterns with a quick flip of the TPSS switch – without tools or leaving your seat.

IMG_5823

Serviceability

  • Front pin bushings to help maximize durability
  • Centralized swivel bearing lubrication
  • Protected cylinder hoses
  • Steel hood panels
  • One-sided engine maintenance
  • Wide hood openings for easy access to engine and other vital components

Auxiliary

  • Proportional flow control of auxiliary circuit (AUX1) and maximum oil flow setting – you can operate a larger variety of auxiliary attachments than ever before
  • Proportional AUX flow switch – a convenient bi-directional switch enables easy operation of hydraulic thumbs and other hydraulic attachments such as augers and breakers

SPECS & COMPARE: Kubota Models

K008-5

10.3 hp. Maneuverability and power, all packed inside an ultra-compact frame.

SEE DEALERSHIP FOR PRICE
  • Engine Model
    Kubota D722-E4
  • Horsepower (gross)
    10.3
  • Displacement (cu. in.)
    43.8 (719)
  • Overall Length
    9ft 0in (2750)
  • Overall Height
    7ft 4in (2230)
  • Overall Width
    2ft 10in (860) / 2ft 7in (800)
  • Min. Ground Clearance
    5.9in (150)
  • Crawler Length
    4in 0ft (1230)
  • Pump Capacity (GPM)
    2.8 (10.5) x 2
  • Auxiliary Hydraulics Flow Rate (GPM)
    5.5 (21.0)
  • Bucket Breakout Force (lbs.)
    2205 (1000)
  • Arm Breakout Force (lbs.)
    1012 (458.9)
  • Traveling Speed: High (mph)
    2.5 (4.0)
  • Traveling Speed: Low (mph)
    1.2 (2.0)
  • Ground Contact Pressure (psi)
    4.1 (0.29)
  • Blade Width
    2ft 4in / 2ft 10in (700 / 860)
  • Blade Height
    7.9in (200)
  • Hydraulic Oil Reservoir / System
    3.60 / 4.8 (13.5 / 18.0)
  • Fuel Reservoir
    3.2 (12.0)
  • Operating Weight lbs. (kg)
    2315 (1050)
  • Build
  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •
§The Manufacturer's Suggested Retail Price excludes tax, dealer fees, and optional equipment. The equipment shown is for illustrative purposes only and may not be base equipment.

Add Ons


EA20 Series Excavator Augers
View 360 Video

EA20 Series Excavator Augers

Kubota by Land Pride: The EA20 Excavator Augers are ideal for dirt or building contractors, fence contractors, and in rental fleets. Easily reach hard to access areas with an excavator and bore holes for fences, footings, and more. Only available through Kubota Dealers. (EA35 Photo shown as reference.)
