M Low Profile

Specialty

MSRP As Low As§
$59,042
0 0 48, 3000, 90 day no pay Offer Badge

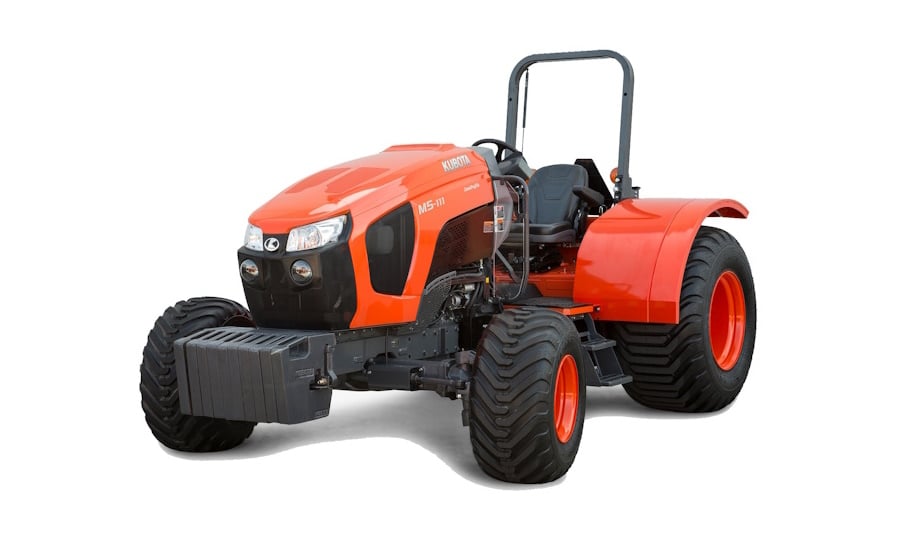

MODELS: M5L-111, M6L-111
Kubota M Series Low Profile tractors bring you low profile tractors with full-size features and capabilities. Designed specifically for fruit and nut orchard applications, the M Series Low Profile tractors are versatile enough to be used in poultry operations or anywhere low clearance operation is required. M5L and M6L Low Profile tractors are built solid to withstand the toughest orchard conditions and are factory ready to accept a Kubota built front end loader, making Kubota a leader in the low profile specialty tractor market.

Features & Details

V-3800-UP4-2

Kubota Diesel Engines

Proven, Powerful and Reliable.

The M Series Low profile tractor line-up is powered by Kubota’s proven and reliable V3800, 3.8 liter, turbocharged, Tier 4 Final diesel engine. With two models to choose from – the M5L-111 or the M6L-111 – customers have a choice to pick the model that fits their operation best.

  • M5L-111 – 100* net engine HP, 89** PTO HP, 5,904 lbs.
  • M6L-111 – 105* net engine HP, 95** PTO HP, 6,856 lbs.

*   SAE J1349 rating @ Rated Engine RPM

** OECD Code 2 rating @ Rated Engine RPM

0516_M5L_111_LoPro_Details_7083

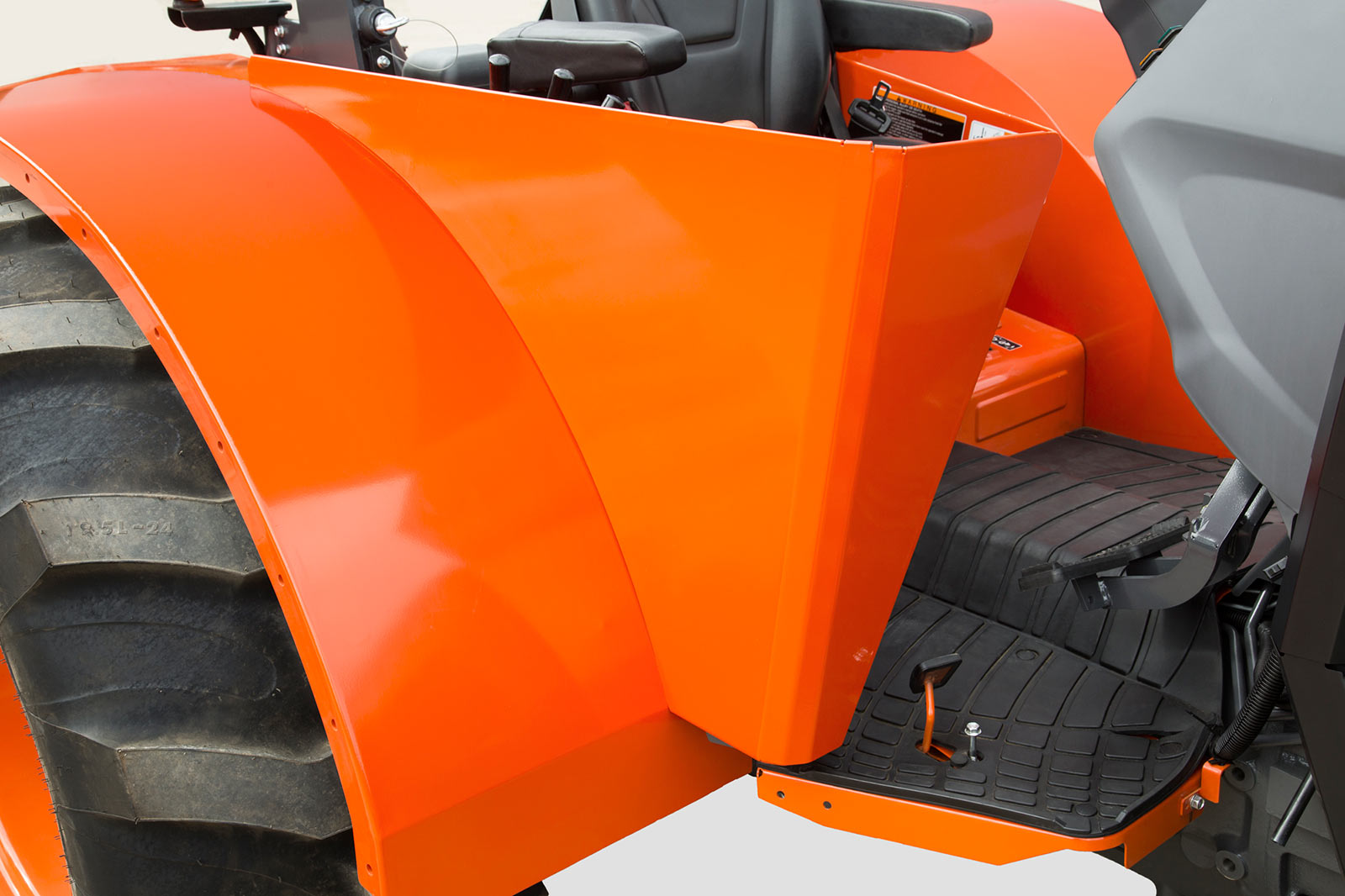

Right Hand Operator’s Guard

Protecting the fruit in an orchard is key, but protecting the operator and controls is as well. Kubota installed a standard right hand operator’s guard on every M Series Low Profile tractor to help keep low hanging branches from contacting the operator or inadvertently contacting critical controls, like the main gear shift levers, throttle, rear remotes or 3-point control.

0516_M5L_111_LoPro_Details_8123

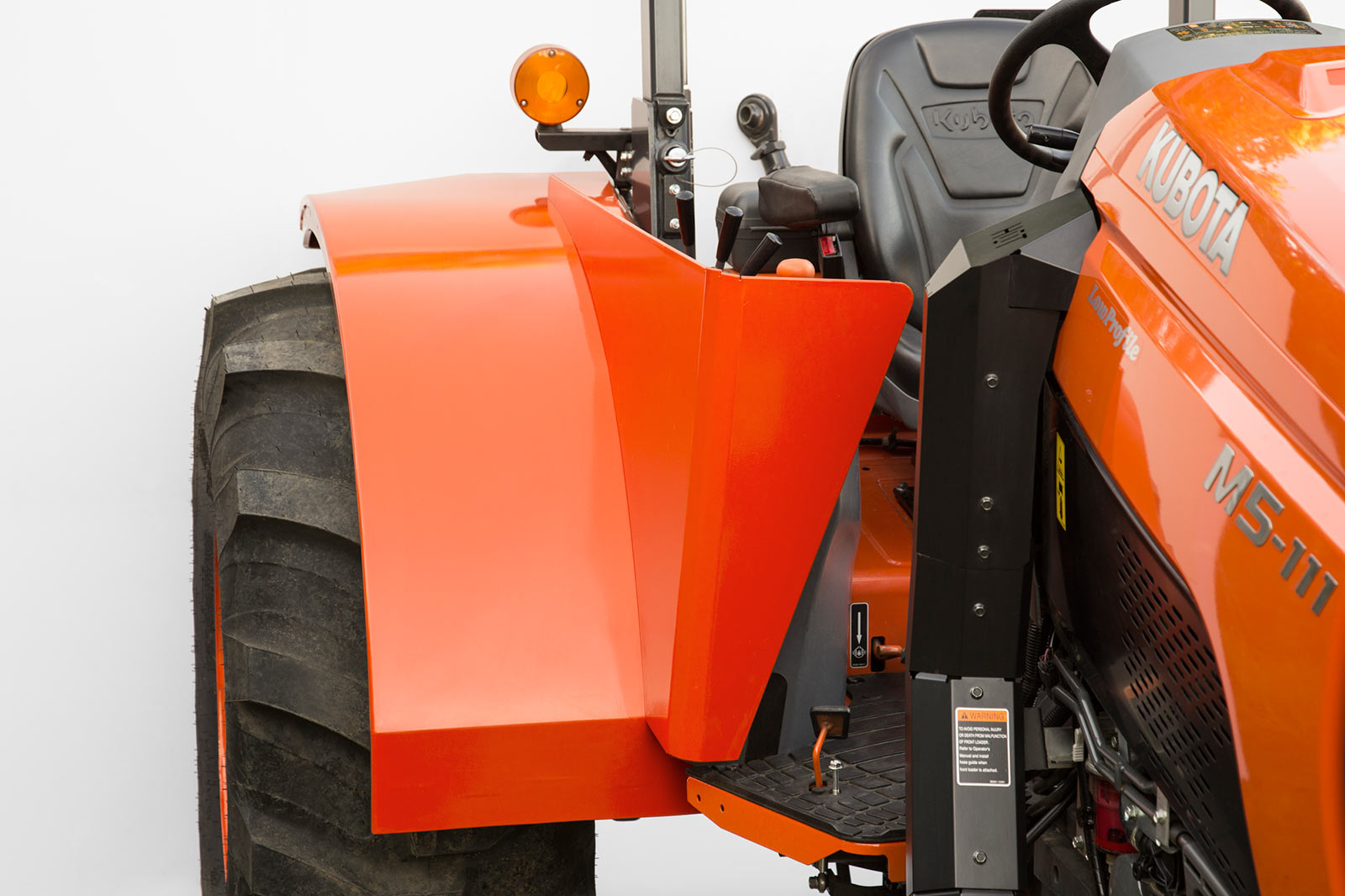

Steel Rear Fenders

While competitors are using lighter plastic and fiberglass rear fenders to protect the trees in the orchard, Kubota continues to use heavy-duty, wide steel fenders that will last the life of the tractor. Kubota’s rear fenders gently deflect the branches of trees, but withstand heavy abuse and keep coming back for more. Kubota steel rear fenders are standard on all M Series Low Profile models.

0617_M6L_111_Transport_5298

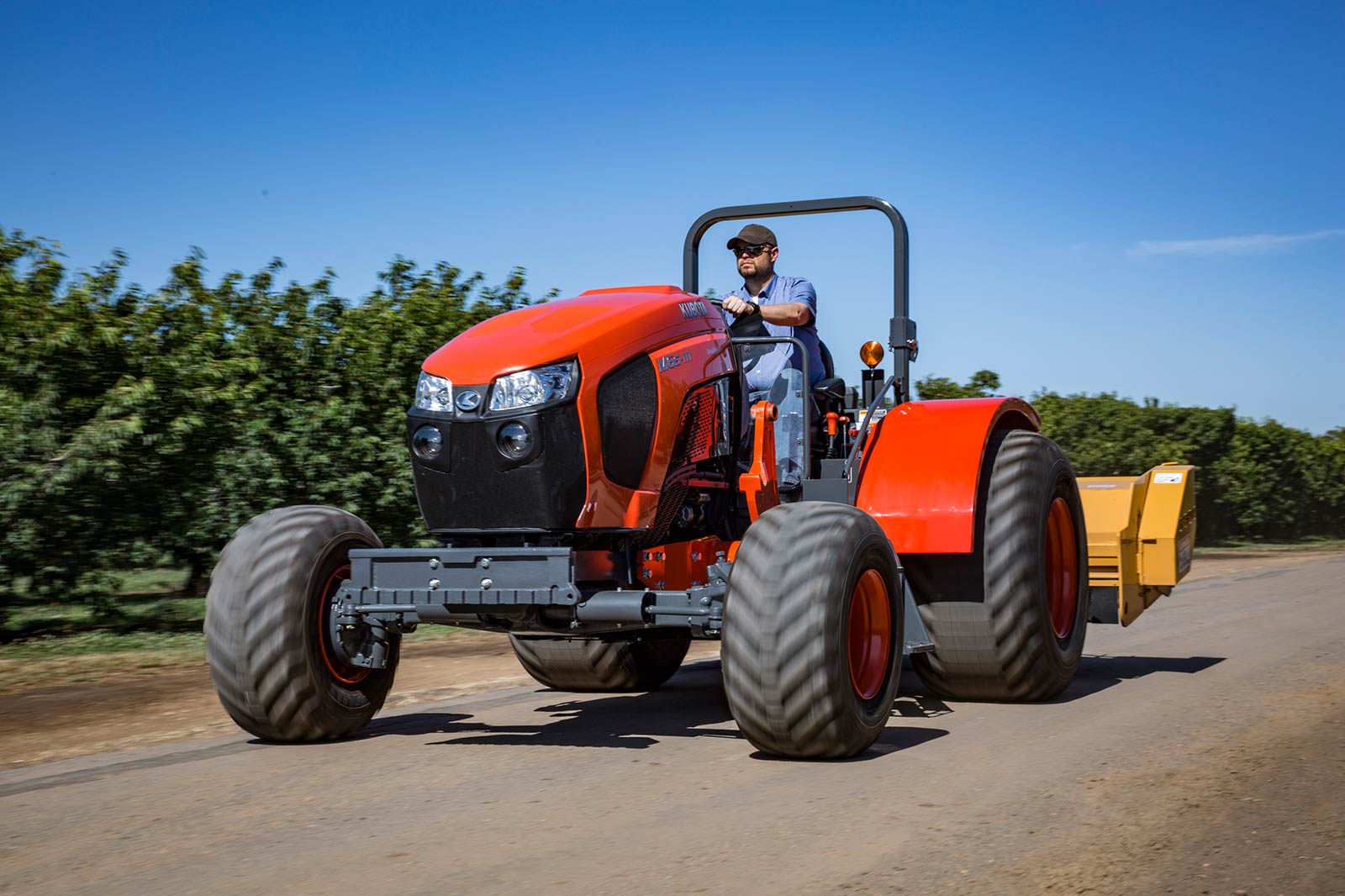

Low Profile, Sloped, Steel Hood

In low profile operations, hood height is critical to clear the low hanging canopy of an orchard. Kubota has engineered and designed a hood to not only house the engine and emissions components, but to also gently deflect and avoid branches in an orchard by sloping the hood and keeping it low. The hood heights on the M Series Low Profile tractors are 66.3” on the M5L-111 and 66.8” on the M6L-111. The sloped steel hood on the M Series Low Profile tractors also increases the operator’s visibility in front of the tractor.


SPECS & COMPARE

M Low Profile

100.0 HP.  Low on Profile but High on Performance.

MSRP AS LOW AS§ $59,042
  • Engine Manufacturer
    Kubota
  • Engine
    V3800
  • EPA Emission Level
    Tier 4 Final
  • Gross Engine HP
    105-114 (78-85 kw)
  • PTO HP
    89-95 (66.4-70.8)
  • Rated Engine Speeds (rpm)
    2,400
  • Aspiration
    Turbocharged
  • Displacement cu. in. (cc)
    230 (3,769)
  • Cylinders
    4
  • Alternator Amps
    STD: 60/80, OPT: 80
  • Exhaust After Treatment
    DPF, SCR
  • Fuel Tank Capacity gal. (liters)
    24.3-46 (92-175)
  • DEF Tank Capacity gal. (l)
    3.2 (12)
  • Transmission
    STD: 12 x 12 / STD: 32 x 32
  • Creep Speed
    Dealer Installed Option
  • Clutch Type
    Electro Hydraulic
  • Brakes
    Hydraulic Wet Disc
  • Rear Differential Lock
    Mechanical / Electro-hydraulic
  • Front Differential Lock
    Limited Slip / Mechanical
  • Front 4WD Axle
    Beval Gear
  • Speeds at RPM
    STD: 540 @2,035 / 540E @ 1,519 / 540 @ 2,405, OPT: 540 @2,405/1000 @2,389
  • Hydraulics System
    Open Center
  • Engagement Method
    Electro-hydraulic
  • Main Pump Flow gpm (l/m)
    15.7-17.6 (59.4-66.6)
  • Power Steering Flow gpm (l/m)
    5.6-12.9 (21-48.8)
  • Total Flow gpm (l/m)
    21-30.5 (87-115.5)
  • Hydraulic Remote Valves
    STD: 2/3
  • Three Point Hitch Type
    Category II
  • Telescoping Link Ends
    Standard
  • Lift Capacity lbs. (kg)
    24" Behind Lft Pts., SAE: 5,181 (2,350) / STD: 3,858 (1,750), OPT: 4,795 (2,175)
  • Wheelbase in. (mm)
    88.6-95.9 (2,250-2,270)
  • Overall Height in. (mm)
    ROPS: 89.4-90.6 (2,270-2,300)
  • Turning Radius w/o Brake ft. (m)
    13.9-14.8 (4.25-4.5)
  • Weight lbs. (kg)
    5,904-7,077 (2,680-3,210)
  • Front / 4WD
    9.5 - R20
  • Rear / 4WD
    16.9 - R24
  • Build
  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •
§The Manufacturer's Suggested Retail Price excludes tax, dealer fees, and optional equipment. The equipment shown is for illustrative purposes only and may not be base equipment.

Choose Your Implements

  • Kubota-Built-Front-End-Loaders-M-Low-Profile
    Kubota Built Front End Loaders

    Kubota Built Front End Loaders

    Kubota’s performance matched front end loaders add more productivity and versatility to the M Series Low Profile tractors. No need to add an additional sub-frame or other special components – the LA1854 (M5L-111) and the LA1944 (M6L-111) loaders turn your M Series specialty tractor into a limb clearing, chicken house cleaning machine. With optional features like KSR (Kubota Shockless Ride), hydraulic self-leveling and a 3rd function valve, your Kubota front end loader is able to accomplish almost any loader task.
  • rcf36_main

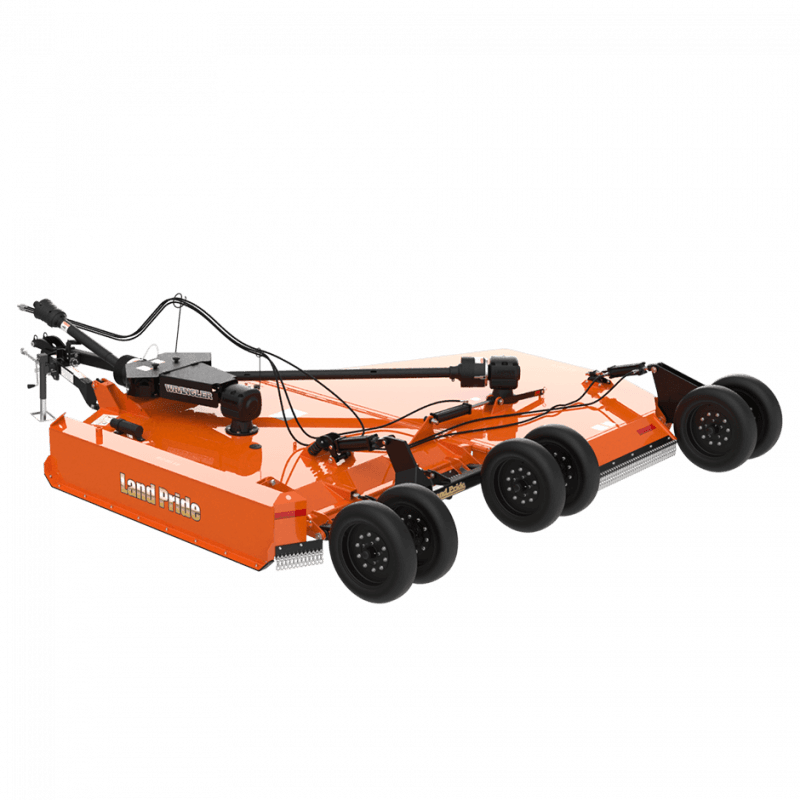

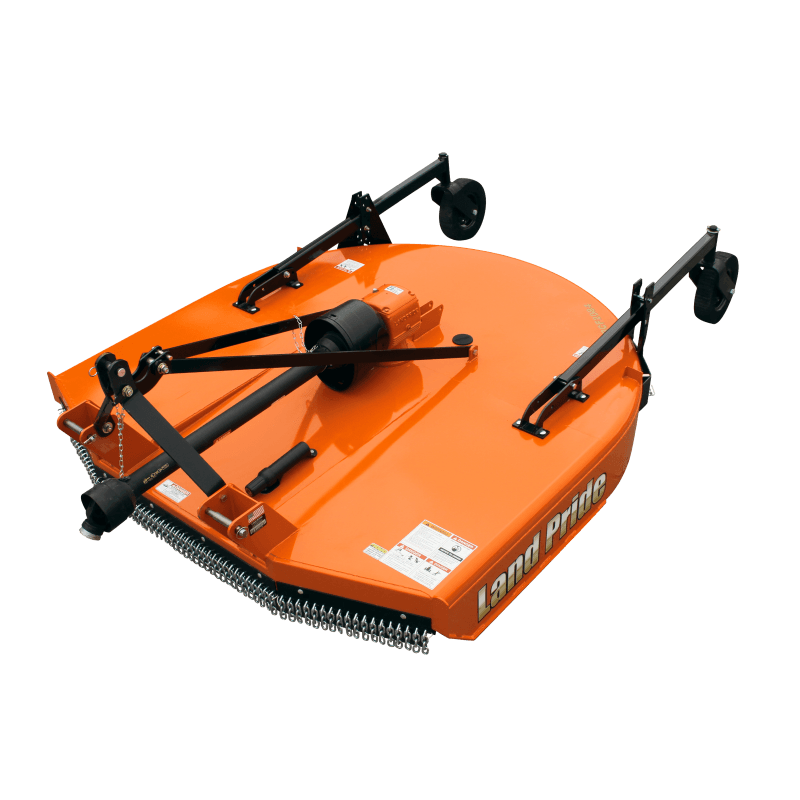

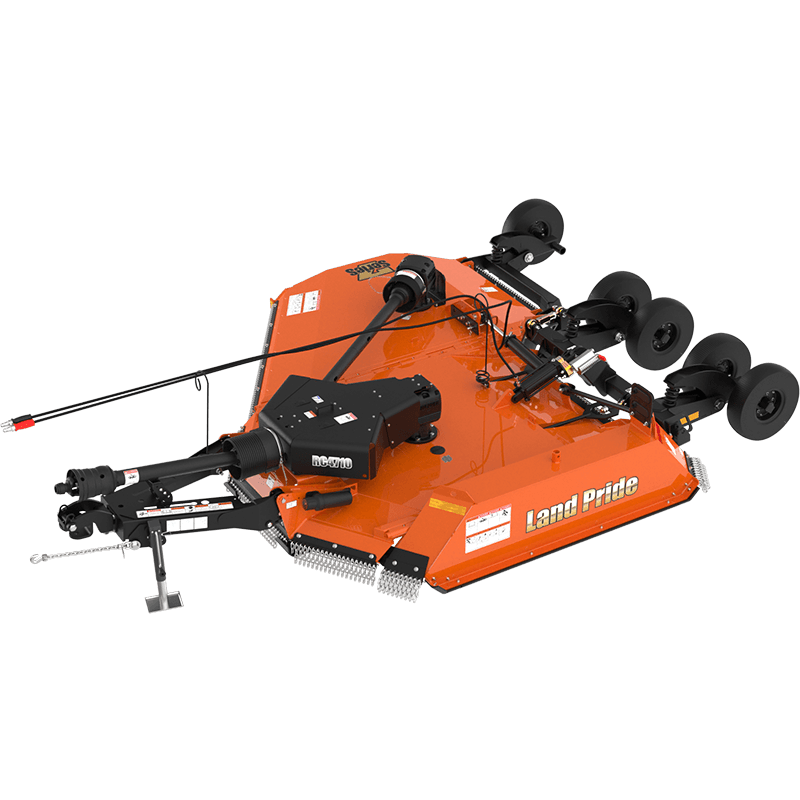

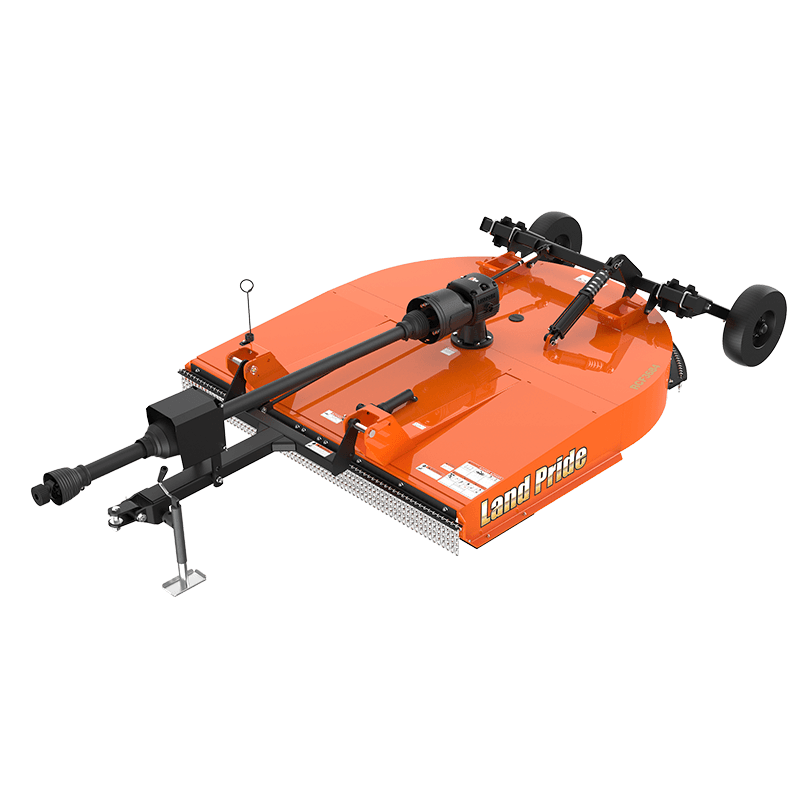

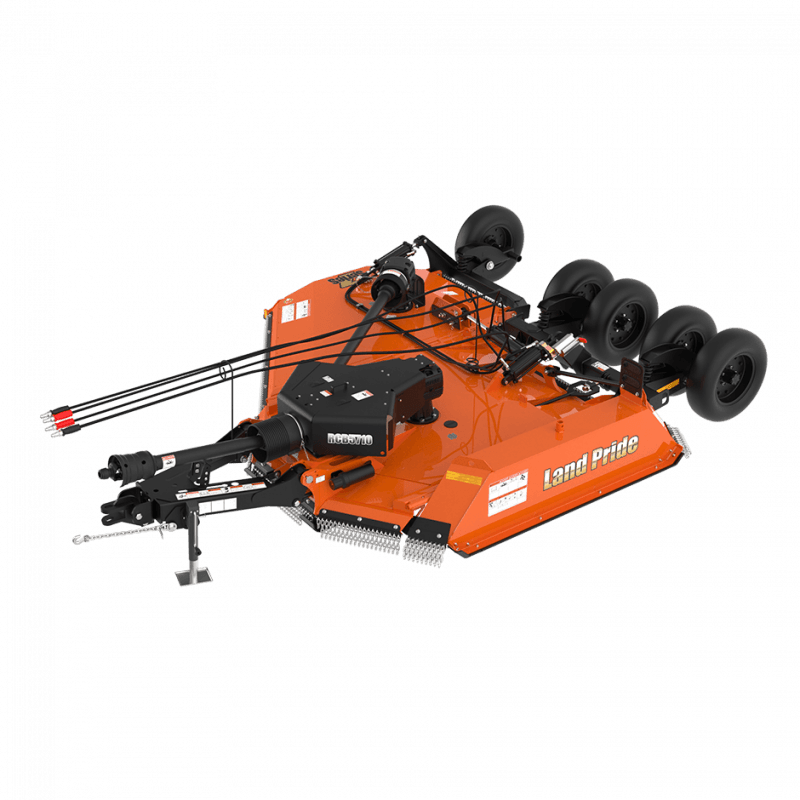

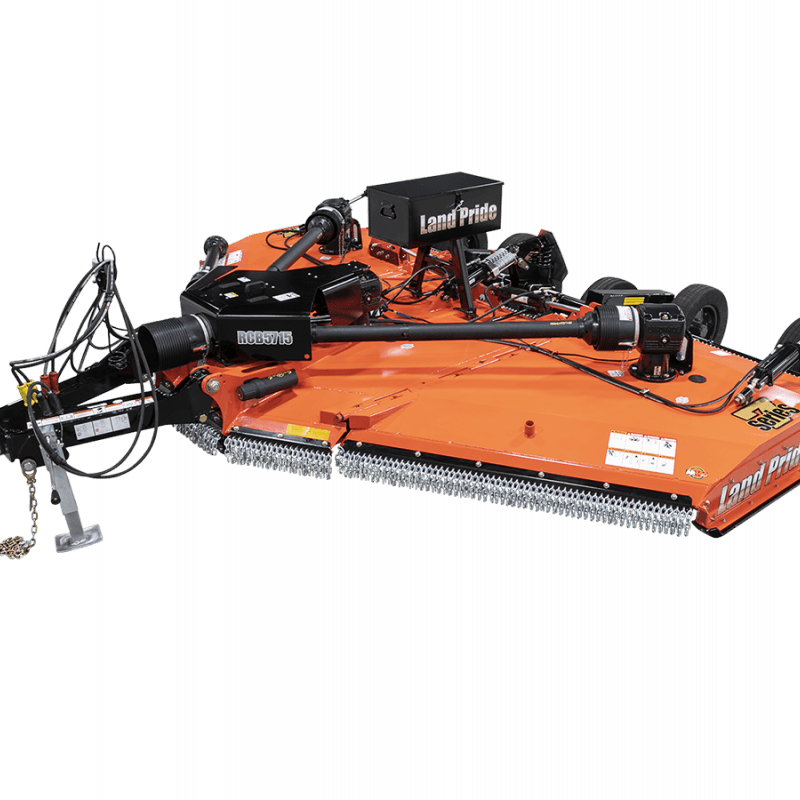

    Rotary Cutters

    Rotary Cutters

    Land Pride Rotary Cutters clear grass, weeds, and varying sizes of brush depending on model selection. Applications include  rural acreage, open spaces, row crops, roadside maintenance, and general farm maintenance.

    Land Pride Performance Matched Attachments/Implements


  • fm25_main

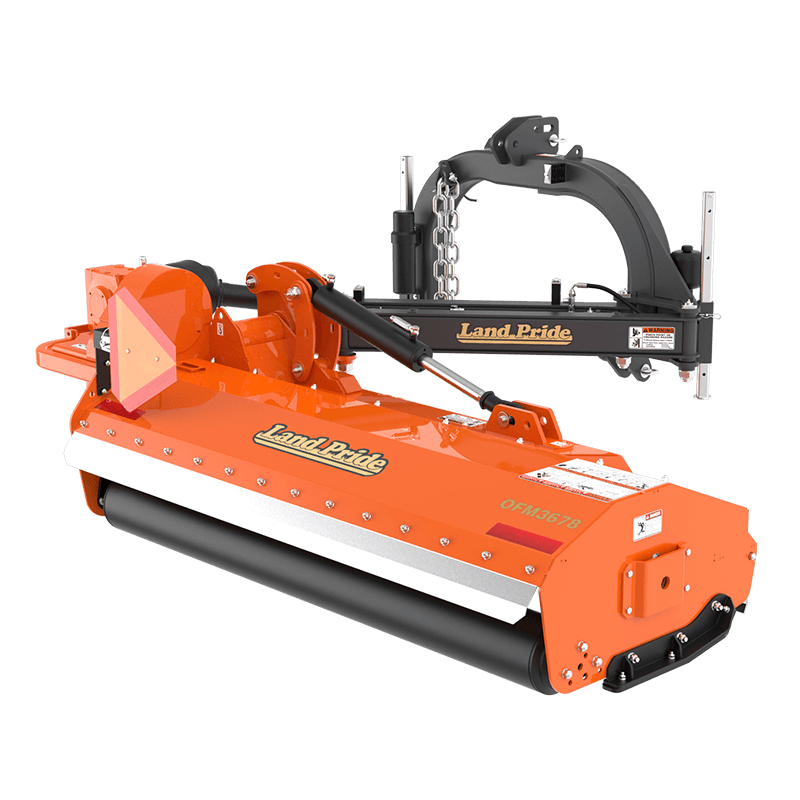

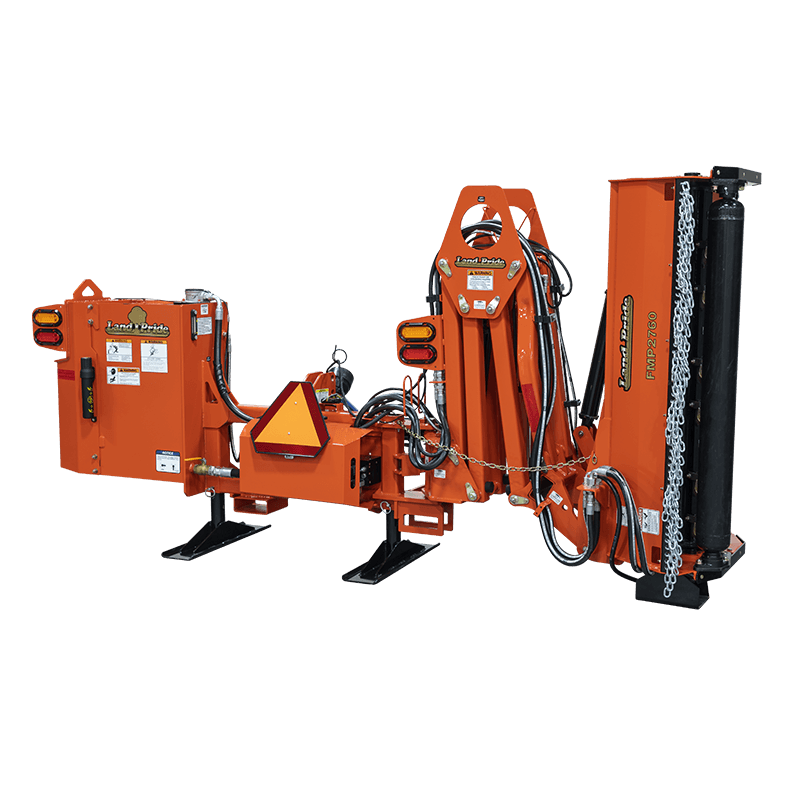

    Flail Mowers

    Flail Mowers

    Land Pride Flail Mowers are built for use in vineyards, orchards and recreation areas. Different blade options make quick work of grass, woody material, saplings, and tree prunings.

    Land Pride Performance Matched Attachments/Implements


  • dh15_main
    Disc Harrows

    Disc Harrows

    Land Pride Disc Harrows open and break up the soil surface to help prepare the soil seedbed for planting. They have uses in landscaping, nurseries,  farms, food plots, construction, and arenas. Model selection is dependent on application.

  • pr16_main1
    Powered Rakes

    Powered Rakes

    Land Pride Powered Rakes grade, level, shape, cultivate, renovate, and pulverize various types of soil surfaces for landscapers and are also a versatile tool for raking or windrowing soil, rocks, and construction debris.

    Land Pride Performance Matched Attachments/Implements


  • rb35_main

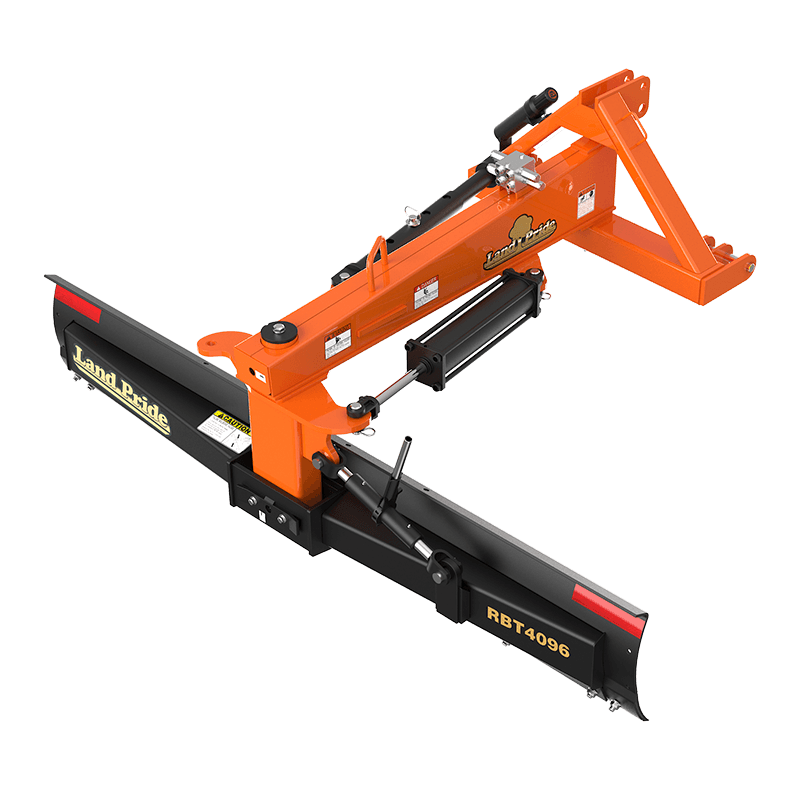

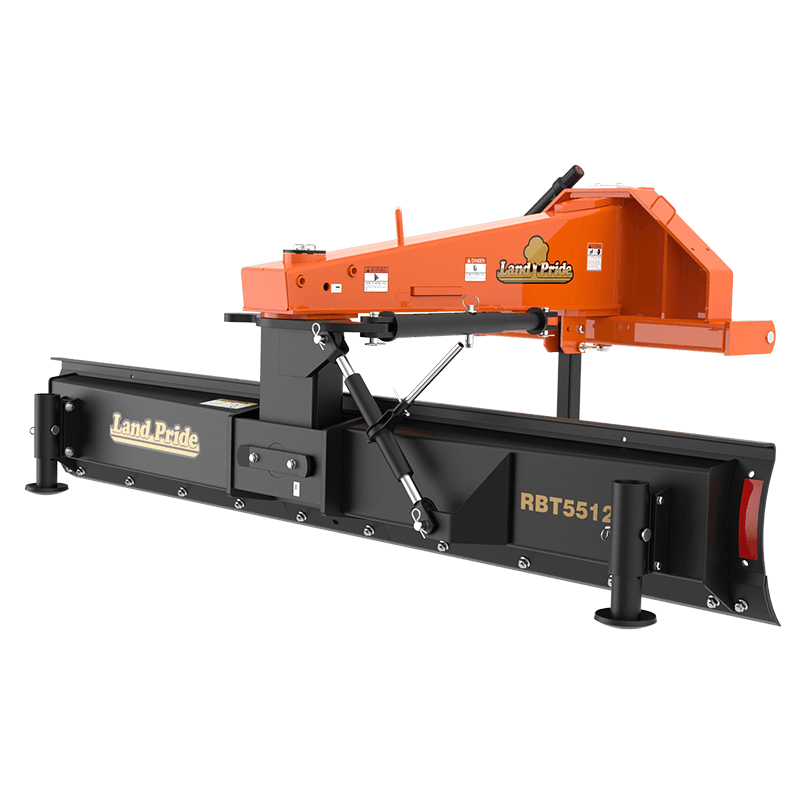

    Rear Blades

    Rear Blades

    Land Pride Rear Blades are excellent for leveling, finish grading, backfilling, and removing snow. Applications range from construction, landscaping, farms, feedlots, arenas, and home sites depending on model selection.

    Land Pride Performance Matched Attachments/Implements
