RA2071T EVO

Rakes

For Competitive Pricing
Refer to Dealer
20 0 84 Offer Badge

Extended Warranty

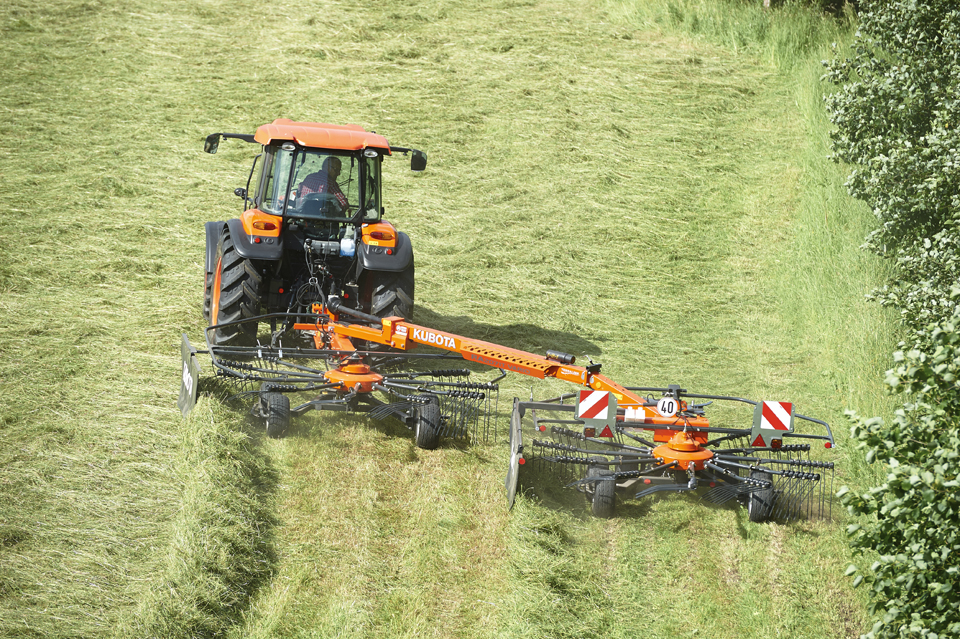

The RA2071T EVO has a working width of up to 23'3" in double swath position and features the Kubota TerraLink flex system. Independently working twin rotors provide the option to rake the crop into a single swath or two individual swaths. The high ground clearance makes headland turning no problem over existing swaths.

Features & Details

0614_RA2071T_Ground_5863

Easy Set for Transport

There's no need to remove tine arms when converting the RA2071T into transport position. The swath board is lifted hydraulically and transport width is reduced to 9'10" (to reach 8'1" the tine arms can be removed).

RA2071T-Raking

Exceptional Raking Performance

The RA2071 features eleven tine arms and four double tines per arm on the front rotor and twelve tine arms, and four double tines per arm on the rear rotor to provide high tine frequency. This ensures clean raking performance in all types and volumes of crop.

04_Exceptional-Raking-Performance

Outstanding Durability

The Kubota rakes are equipped for maximum raking performance. The FarmLine rakes all feature 9mm wire diameter tines for outstanding durability.

03_High-lift-Tine-Arms

Curved Tine Arms

All Kubota FarmLine rakes feature cranked tine arms for handling high volume crops, giving cleaner raking performance and optimized swath formation. This design ensures that the row of tines on each tine bar has a more effective approach angle to the oncoming crop and also gives a cleaner lift out of the tine from the formed swath.

02_Maintenance-Friendly-Gearbox

Kubota Compact Rotor

The rotor is grease lubricated within a fully enclosed housing. The maintenance-free cam track, cam followers, as well as the bearings of the rotor star axles, are permanently running in an oil bath. Both the rotor and pinion shaft are mounted on two bearings for maximum strength and long service life.

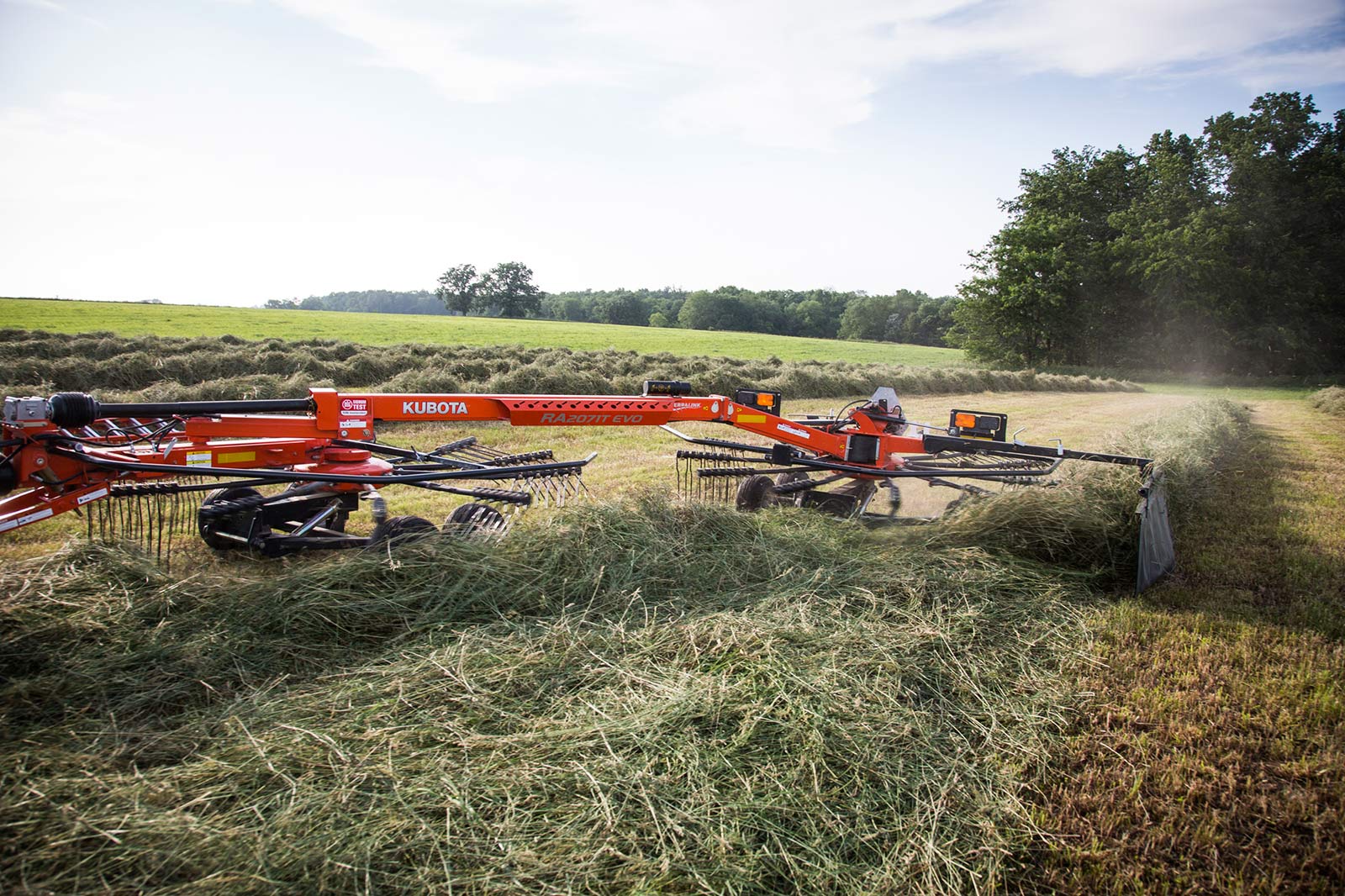

0614_RA2071T_Ground_3453

Flexible Raking

The trailed RA2071T EVO is designed to work in a variety of crop conditions. The twin rotors work independently from each other, making it possible to collect either one large swath or two smaller swaths.

FarmLine Rakes

FarmLine Rakes

Kubota's FarmLine rakes feature oil-immersed cam discs, guide rollers and tine bearings, making them low maintenance. All rakes are fitted with curved tine arms, to ensure a regular and even swath formation in all crop conditions. Additionally, the curved shape increases the tine working area as the rake is moving and allows a higher lift out of the swath, which is critical in high volume crops, ensuring a very uniform swath. Our expert knowledge in producing the right swath not only optimizes the capacity of the baler, but also increases the quality of the forage.


SPECS & COMPARE: Kubota Models

RA2071T EVO

The multi-talented machine.

SEE DEALERSHIP FOR PRICE
  • FarmLine
    Standard
  • ProLine
    N/A
  • Working Width ft. (m)
    21' 8"/23' 3"
  • Transport Width ft. (m)
    9' 10"
  • Transport Length ft. (m)
    24' 9"
  • Parking Height ft.
    N/A
  • Weight lbs. (kg)
    2976
  • Capacity Theo. (Acres/h)
    18
  • Pivoting 3-pt Headstock (cat.)
    N/A
  • Lower Links (2-pt.)
    N/A
  • Linkage Drawbar
    Standard
  • Gauge Wheel 16"
    Optional
  • Rotor Diameter ft.
    9' 8"
  • Swath Delivery
    Left
  • Number of Rotors
    2
  • Number of Arms Per Rotor
    11/12
  • Number of Double Tines/Arm
    4
  • Tine Diameter in.
    .35"
  • Continuous Cam Track
    N/A
  • Detachable Tine Arms
    Standard
  • Height Adjustment
    Hydraulic / Mechanical
  • Tires (Rotors)
    18.5x8.5-8
  • Fixed Tandem Axle
    Rear optional
  • Pivoting Tandem Axle
    N/A
  • Stand. Tires (Carrying Frame)
    N/A
  • Carrier Arm Compensating
    N/A
  • Locking Catch for Slopes
    N/A
  • Warning Panels
    Standard
  • Road Lights
    Standard
  • Build
  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •
