RTV-X1130
MSRP as low as $23,149.00§
The new RTV-X1130 is a portfolio expansion of Kubota’s diesel-powered X-Series –North America’s #1-Selling diesel UTV.* The 6ft long cargo bed features ProKonvert. Access the bed from either side or the tailgate, fold all three panels down or quickly convert it to a flatbed. No tools required.
The new 1-row, long bed X1130: Tough and Dependable. Power Your Productivity. Capability Reimagined. North America’s #1-Selling diesel UTV*
*Based on Power Products Marketing North American 2024 sales data for the pure utility vehicle (PUV) segment.
Build Your RTV-X1130
Special Offers
Implement Stand Alone Financing
Implement Stand Alone Financing
Farmer Veteran Coalition (FVC)
Customer instant rebate for Farmer Veteran Coalition members.
RTV-X SERIES
2.99% A.P.R. for up to 36 Months!
How to Use Your RTV-X1130
Capacity
- 1,300 lbs. towing capacity – standard front and rear two-inch hitch receivers at the front and back

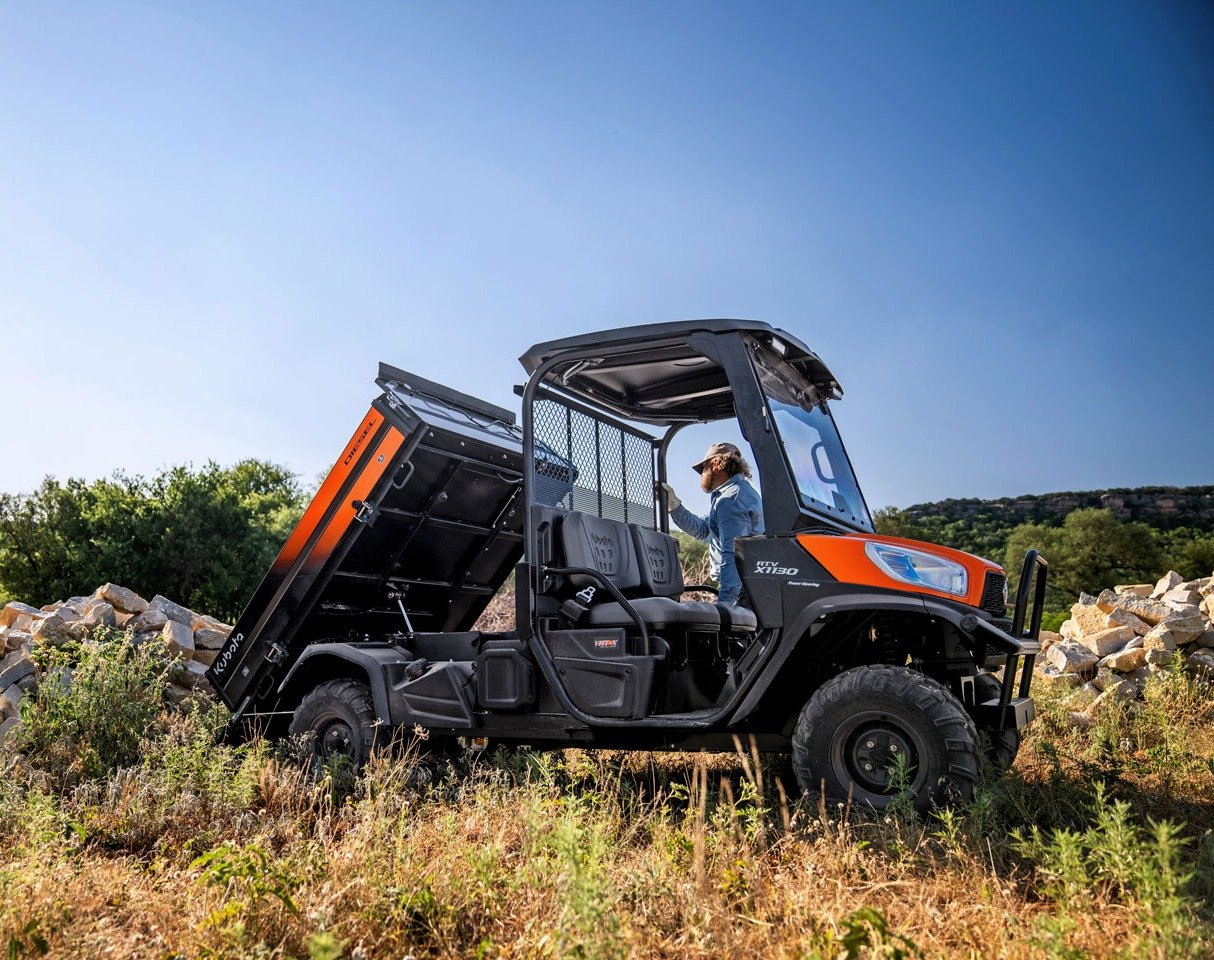

- Standard hydraulic dump bed with a whopping 26.1 cu. ft. capacity cargo bed
- Standard factory spray-on bed liner to protect the cargo bed
Exceptional Ride
- Front & Rear Independent Suspension
Regardless of the terrain or load, independent suspension on all four wheels ensures a truly exceptional ride. Kubota’s Extra Duty IRS (Independent Rear Suspension) technology also sets a new standard for durability.
- 11.3” Inch Ground Clearance
The X1130 raises the bar on ground clearance – to a full 11.3” in the front and 9.4" in the rear with 8” of suspension travel – letting you glide over the bumps rather than through them.
- Limited-Slip Front Differential
True 4WD drive with a limited-slip front differential and a locking rear differential help reduce wheel spin to a minimum, giving you greater control and a smoother ride on rough or muddy terrain.
- Dynamic Braking
You’ll feel more secure, especially when traveling down long inclines, knowing that dynamic braking is providing additional braking power and greater driving control.
More Comfort
- Hydraulic power steering eliminates steering wheel kickback increasing operator comfort
- Tilt-adjustable steering wheel
- Digital meter cluster to keep you informed of all critical driving conditions, including speed, hours and miles traveled, as well as an overheat alarm
- Easily accessible dash-mounted parking brake
- Glove box and under-seat storage compartments
- Enhanced ROPS for your safety (meets the SAE J2194 and OSHA 1928 ROPS standards)
RTV-X1130 is Here
Tough
- 23.3 HP Kubota Diesel Engine
Power when and where you need it. Even after the sun disappears, you can rely on the powerful 23.3 HP diesel engine to keep you moving forward. Kubota-built and worksite-proven, these 3-cylinder liquid-cooled diesel engines have a well-earned reputation for dependable performance even in the harshest worksite terrains.
- VHT-X (Variable Hydraulic Transmission)
Kubota has more experience in variable hydraulic transmissions than any other Utility Vehicle manufacturer. Kubota’s advanced VHT-X offers a wide torque band, advanced designed HST motor and large oil coolers to boost durability and increase performance.
- 20% Larger, Clog-Resistant Radiator
Open the hood and you’ll find the radiator and air-intake located high and up front, where the air is cleaner and cooler. This improves both radiator performance and simplifies maintenance. Kubota’s wide fin pitch design minimizes clogging, further improving radiator performance.
Add-Ons
K7921-99590
- Allows the tailgate to rest against the ground when the bed is fully raised
- Folds out of the way when not in use
K7921-99580
- Comes with a wireless winch controller
- Has a 750lb capacity
K7921-99570
- Two 6″ LED lights
K7921-99560
- Designed to mount underneath the cargo bed
- Includes 2 plastic lockable storage boxes (one for each side)s
V5260
- 60″ wide rotary broom with 18″ diameter poly brushes
- 50 1/2″ width @ 25° max angle
- Reversible broom rotation
- Hydraulic lift and angle adjustment
- Recommend optional Markers (V5250)
- Requires Front Quick Hitch (V5289), Electro-Hydraulic Valve Kit (V5232) & (3rd function – V5233), Auxiliary Hydraulic Pump (X900 – V5271) or (X1120/X1100 (X-Cab) – V5272), Hydraulic Oil Cooler (V5240), Hand Throttle Kit (V5245), & Front Heavy Duty Strut Kit (K7591-99180) or Front Heavy Duty Spring Kit (K7591-99190)
V5291
- 72″ wide V-Blade (straight) with moldboard height 19 1/8″ @ center, 20 1/2″ @ ends, and 3/8″ moldboard thickness
- 66″ V position width and 59″ scoop position width
- Hydraulic lift with down pressure and float
- Hydraulic angle adjustment with built-in relief valves to protect against impact
- Trip cutting edges
- Recommend optional Markers (V5250) and Curb Guards (V5256)
- Requires Front Quick Hitch (V5289), Electro-Hydraulic Valve Kit (V5232) & (3rd function – V5233), Auxiliary Hydraulic Pump (X900 – V5271) or (X1120/X1100 (X-Cab) – V5272), & Front Heavy Duty Strut Kit (K7591-99180) or Front Heavy Duty Spring Kit (K7591-99190)
V5290
- 72″ wide commercial snow blade with 21.75″ moldboard height and 10 gauge moldboard thickness
- 62.4″ plow width @ 30° max angle
- Hydraulic lift with down pressure and float
- Hydraulic angle adjustment with adjustable blade trip springs
- Recommended optional Markers (V5250)
- Requires Front Quick Hitch (V5289), Electro-Hydraulic Valve Kit (V5232), Auxiliary Hydraulic Pump (X900 – V5271) or (X1120/X1100 (X-Cab) – V5272), & Front Heavy Duty Strut Kit (K7591-999180) or Front Heavy Duty Spring Kit (K7591-99190)
V5060
- 72″ wide heavy duty snow blade with 23.5″ moldboard height and 12 gauge moldboard thickness
- 64.5″ plow width @ 30° max angle
- Includes self contained electro-hydraulics for lift and angle adjustment
- Requires Front Heavy Duty Strut Kit (K7591-99180) or Front Heavy Duty Spring Kit (K7591-99190)
V5245
- Required for 60″ Rotary Broom (V5260)
V5276
- Stationary applications only, optional coupler to power aftermarket implements
- Cannot be used to power hydraulic motor applications
One Valve V5273* (RTV-X, X900, X1100 (X-Cab), X1120)
One Valve V5263* (X1130, X1140 (X-Crew))
Two Valve V5274* (RTV-X, X900, X1120, X1100 (X-Cab))
- Required for Hydraulic Angle Kit (V5007) and aftermarket implements
D902 Engine V5271* (X900)
D1105 Engine V5272* (RTV-X, X1100 (X-Cab), X1120)
D1105 Engine V5262* (X1130, X1140 (X-Crew))
- Required for Hydraulic Angle Kit (V5007), hydraulic powered implements, and aftermarket implements
V5007
- Optional hyudraulic angle kit to upgrade 72″ General Duty Front Blade (V5008) to hydraulic angle adjustment
- Requires Auxiliary Hydraulic Pump (X900 – V5271), (X1120/X1100 (X-Cab) – V5272), or (X1140 (X-Crew) – V5262) and Auxiliary Hydraulic Valve: One Valve (X900/X1120/X1100 (X-Cab) – V5273), Two Valve (X900/X1120/X1100 (X-Cab) – V5274), or One Valve (X1140 (X-Crew) – V5263)
77700-V5255 (V5255)
- Optional front guard adapter for Front Quick Hitch (V5289) to reinstall front guard when front quick hitch implements are put away for the season
V5289
- Required quick hitch system designed for 72″ Commercial Straight Blade (V5290), 72″ V-Plow Blade (V5291) and 60″ Rotary Broom (V5260) for easy implement changes
V5295A
- 78″ wide K-connect V-blade (straight) with moldboard height 20″ @ center, 25 3/4″ @ ends, and 0.075″ moldboard thickness
- 69 1/2″ V position width and 66″ scoop position width
- Hydraulic lift with down pressure and float
- Hydraulic angle adjustment with built-in relief valves to protect against impact
- Trip cutting edges
- Reinforced with 3 vertical ribs, 1 diagonal ribs, and C-channel on each wing
- New curvature allows for rolling of snow eliminating the need for a deflector and includes markers and skid shoes standard
- Recommend optional Curb Guards (V5281)
- Requires 4 Point K-Connect (V5293) and Front Heavy Duty Strut Kit (K7591-99180) or Front Heavy Duty Spring Kit (K7591-99190)
- Compatible with PTO Drive K-Connect (V5299)

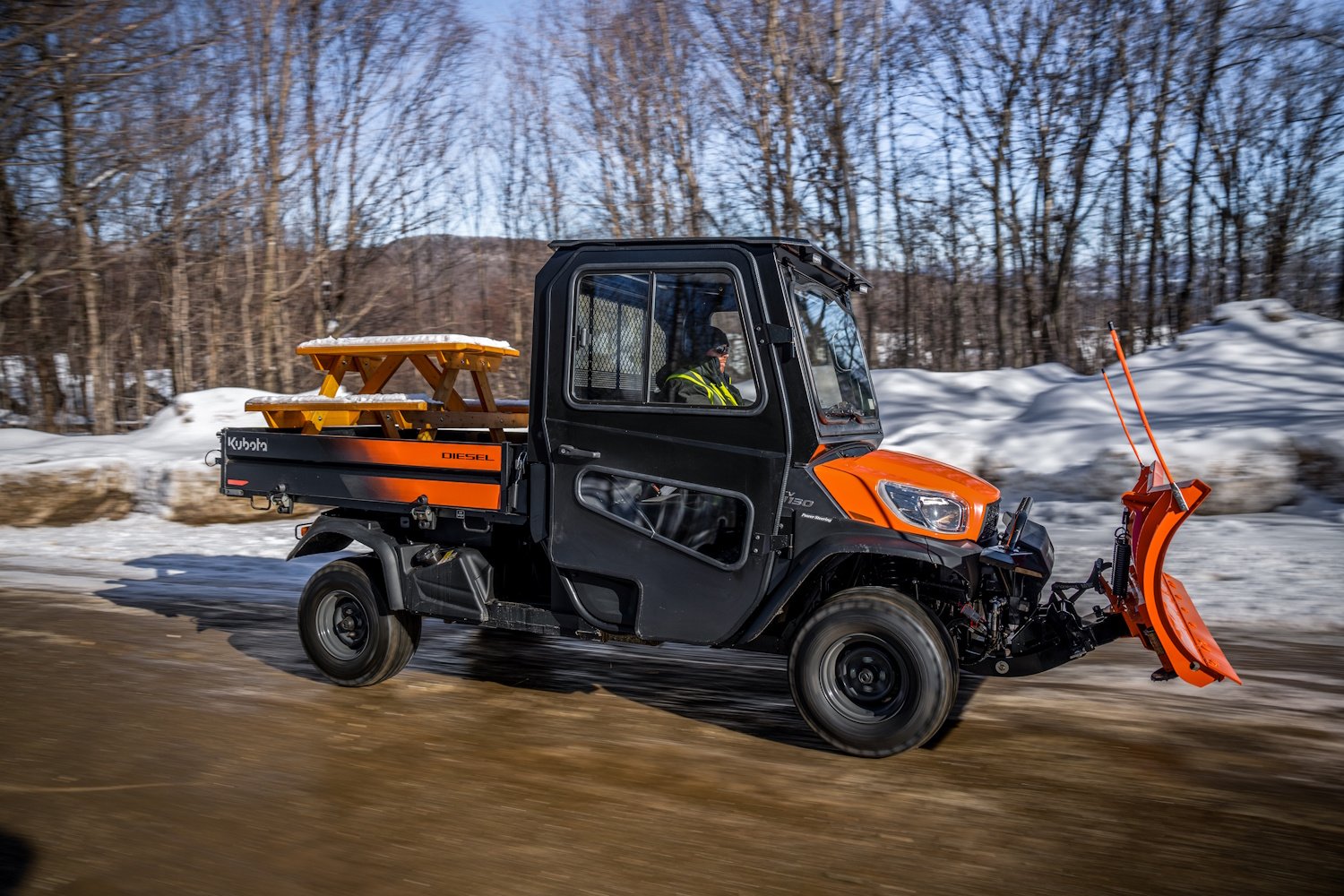

V5294A
- 78″ wide K-connect snow blade with 24″ moldboard height and 0.075″ moldboard thickness
- 68″ plow width @ 30° max angle covers the width of the RTV-X
- Hydraulic lift with down pressure and float
- Hydraulic angle adjustment with two spring trip protection
- Reinforced with 4 vertical ribs, 2 diagonal ribs, and C-channels
- New curvature allows for rolling of snow eliminating the need for a deflector and includes markers and skid shoes standard
- Recommend optional Curb Guards (V5281)
- Requires 4 Point K-Connect (V5293) and Front Heavy Duty Strut Kit (K7591-99180) or Front Heavy Duty Spring Kit (K7591-99190)
- Compatible with PTO Drive K-Connect (V5299)
V5285
- Replacement skid shoes for 78″ Straight Blade (V5294A) and 78″ V-Blade (V5295A)
V5281
- Optional curb guards to protect the corners of 78″ Straight Blade (V5294A) and 78″ V-Blade (V5295A) from incidental curb damage
Rubber Cutting Edge – V5287
- Optional rubber cutting edge for 78″ Straight Blade (V5294A)
Plastic Cutting Edge – V5288
- Optional plastic cutting edge for 78″ Straight Blade (V5294A)
Plastic Cutting Edge – V5284
- Optional plastic cutting edge for 78″ V-Blade (V5295A)
77700-V5278 (V5278)
- Optional Front guard adapter for 4 Point K-Connect (V5293) to reinstall front guard when front K-Connect implements are put away for the season
V5298
- Add a brush bar and 2 rectangular LED worklights to the 4 Point K-Connect (V5293)
- Requires 4 Point K-Connect (V5293)
V5293A
- 4 point quick hitch system with a power unit to provide an independent 3 function hydraulic system
- Used to quick attached 78″ Straight Blade (V5294A) or 78″ V-Blade (V5295A)
60 Gallon RTV Spot Sprayer – 77700-12145
- 60 PSI gauge
- 5.0 GPM demand pump
- RTV clamps
- Polyethylene tank with mould-in drain with cap
- 25′ hose with spray gun
- Deluxe pistol grip handgun sprays up to 25′ vertical and 35′ horizontal
- Large 5″ fill lid with tether
- 8′ wiring harness with battery clips
- Add a Boom – The 77700-09601
40 Gallon RTV Sprayer with Hitch Mount Boom – 77700-08964
- Unique 2″ receiver mount boom provides 300° of adjustability
- 7 nozzle breakaway boom coverage up to 140″
- Nozzles include check valve
- Chemically-resistant polyethylene tank
- 2.2 GPM pump
- 60 PSI gauge
- Deluxe 18″ sprayer wand
- Adjustable relief with gauge
25 Gallon Sprayer – 77700-08963
- 3 nozzle boomless spray pattern allows for 140″ (11.6′) of coverage
- Chemically-resistant polyethylene tank
- 2.2 GPM pump
- 60 PSI gauge
- Deluxe 18″ sprayer wand
- Adjustable relief with gauge
- Multi-purpose sprayer fits most RTV’s, ATV’s & UTV’s
Sprayer Boom – 77700-09601
- Sprayer boom for Kubota 40 gallon sprayer
- Compatible with many other sprayers!
77700-12846
- Dynamic 20W portable speaker to take the music with you
- Powerful 57mm driver for high definition sound clarities
- Built-in equalizer allows mode adjustment for better sound output
- Built-in microphone to receive phone calls
- Durable construction, impact-proof & water-resistasnt ABS body with rubber coating & IPX6 rating
- Durable nylon composite clamps keep speaker secure
- Designed for fast and easy attachment/removal
- Clamps fit roll bars 1.625″ to 2″ diameter
77700-10694
- Made from heavy duty, ballistic nylon
- Easily and quickly attaches to your Kubota RTV
- Includes strap kit to attach to your RopsRackPack® and buckles for attaching to your Ultimate Rack
- Gear Bag is 18″ long x 4″ wide x 11″ tall
9′ x 2″ 77700-10680
18′ x 2″ 77700-10681
- Dependable – a ShockStrap® provides superior shock absorption without coming loose – keeps tension on the strap
- Safety Strap – a backup strap in case the ShockStrap® is compromised
- Durable – made from our proprietary formula that is not affected by most chemicals, sunlight, oil, salt water, fungus or moisture
- Rust Resistant – hooks and buckle are yellow zinc coated, which lasts 8 to 10 times longer than chrome plating
- Soft Loop – flexibility to always find a way to secure your load
77700-10709
- Secures fire extinguishers up to 3.5″ in diameter
- Universal design mounts to round tube roll cages up to 2.25″
- Patented low-profile mounting
- Adjustable clamps secure most fire extinguishers
- Fire extinguisher not included
77700-08977
- 1-1/4″ x 12′ tow strap with loops and shackle
- 5,000 lbs. break strength
- Forged shackle
- Reinforced attachment loops
77700-08978
- 34″ x 34″ – stretches to 60″ x 60″
- Heavy duty plastic hooks prevent scratching
- Finger holes in hooks for safety and easy hook up
- Weather Resistant
- Secures odd, bulky shapes
- Adjustable hooks
- Fits most UTV/RTV Bed Boxes
HDWS Tire and Wheel Assembly – K7591-19312 (ARTV5203)
X900, X1120, X1100 (X-Cab), X1140 (X-Crew)
ATV Tire & Wheel Assembly – Left K7591-19112 (ARTV5201L) | Right K7591-19162 (ARTV5201R)
X900, X1120, X1100 (X-Cab), X1140 (X-Crew)
TURF Tire & Wheel Assembly – K7591-19613 (ARTV5205)
X900, X1120, X1100 (X-Cab)
HDMP Tire Assembly – Alloy Wheel Assy: K7121-19820 | Steel Wheel Assy: K7121-19300
RTV-X (X-Cab and X-Crew)
Tire & Alloy Wheel Assembly
X900, X1120, X1100 (X-Cab), X1140 (X-Crew)
- Black ATV Left: K7591-99850 (ARTV5212L)
- Black ATV Right: K7591-99860 (ARTV5212R)
- Black HDWS: K7591-99800 (ARTV5214)
- Silver ATV Left: K7591-99830 (ARTV5211L)
- Silver ATV Right: K7591-99840 (ARTV5211R)
- Silver HDWS: K7591-99790 (ARTV5213)
Front Wheels – V5225
Rear Wheels – V5226
Front – V5238
Rear – V5239
- Pick a canopy
- Metal FOPS Canopy (Black – VC5044)
- Plastic Canopy – VC5043
- Pick a windshield
- Tempered Glass – VC5025
- Laminated Glass – VC5020
- Hard-Coated Polycarbonate – VC5023
- Pick a seat cab enclosure
- Steel Cab Enclosure (includes door and rear panel) – VC5045
- Add mid panel to enclose seat configuration (optional)
- Mid Panel – Steel with Sliding Windows (VC5046)
- Mid Panel – Vinyl (VC5047)
- Add accessories
- Mirrors – External Deluxe – VC5076
- Heater Kit – VC5083A
- Windshield Wiper Kit – VC5030
- Interior Dome Light – VC5053
- LED Work Lights
- Front Lights – VC5050
- Rear Light – VC5051A
- Strobe Light – VC5056
- Strobe Four-Way Flasher Lights – VC5057A
- Stand Alone Options
- Acrylic Windshield
- Clear – V5227
- Tinted – V5228
- Acrylic Windshield
- IP68 waterproofing system standard
- Redesigned & improved brake system
- Improved and redesigned clutch system
- Engineered system which outperforms the competition
- Limited lifetime mechanical & 3 year electrical warranty
- 4-Seater winches for RTV-X1140 only
- Protect your tail light from damaging debris by installing this Tail Lamp Guard Kit
- Reduce potential damage to the rear CV Joint with this CV Joint Guard
- Help protect your front CV Joint from rocks and stumps with this CV Joint Guard
- Includes painted switch panel for up to five additional accessory switches
- Panel plugs for un-used positions
- Six position fuse block with vinyl dust cover for circuit and fuse protectio
- Increases operator visibility
- Cab mirrors sold in a pair (left & right)
- ROPS mirror sold individually)
- Six high intensity LEDs on each light
- Illuminated, high quality rocker switch
- Sold individually
- Only compatible with the “VC” cab components
- Requires Wire Harness (Multiple – 77700-VC5080) or (Single – 77700-VC5081)
- Six high intensity LEDs on each light
- Illuminated, high quality rocker switch
- Sold in a pair (left & right)
- Only compatible with the “VC” cab components
- Requires Wire Harness (Multiple – 77700-VC5080) or (Single – 77700-VC5081)
- Steel framed, laminated glass windshield to provide a front barrier from wind, dust, and rain
- Designed to hold together when shattered and prevents glass from breaking into large sharp pieces
- Features latches to allow airflow through the cabin
- Compatible with Wiper Kit (77700-VC5030)
- Metal canopies are FOPS certified to provide additional protection while keeping the operator and passenger out of the elements
- Not compatible with Poly Windshield (clear – K7591-99290) or (tinted – K7591-99260)
V5008
- 72″ wide general purpose snow blade with 19″ moldboard height and 12 gauge moldboard thickness
- 64.5″ plow width @ 30° max angle
- Electric lift with manual angle adjustment
- Requires Front Heavy Duty Strut Kit (K7591-99180) and General Purpose Front Guard (Black – K7591-97900)
