RTV-X1120

Full-Size Diesel Utility Vehicles

MSRP As Low As§
$14,299.00
0 0 48 Offer Badge
A step up in power, comfort, convenience and style – with a rugged 24.8HP Kubota D1105 3-cylinder diesel engine, exclusive Variable Hydro Transmission (VHT-X), blue-tinted halogen headlights and more. Plus a two year / 1,000 hour warranty. Available in Orange or Realtree AP Camo.

Features & Details

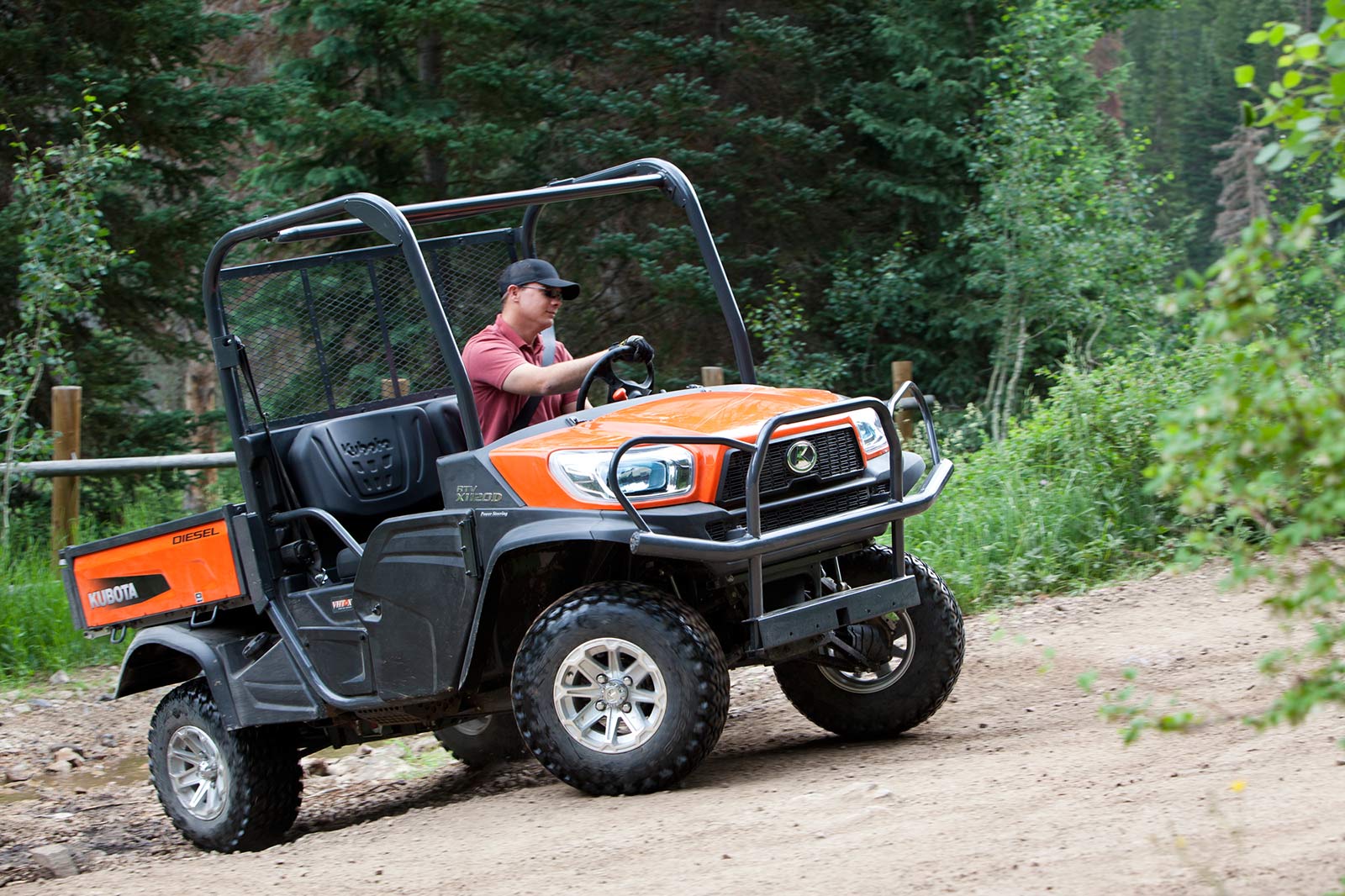

0713_RTV_X1120D_Corner_6232

Exceptional Ride

  • Front & Rear Independent Suspension

    Regardless of the terrain or load, independent suspension on all four wheels ensures a truly exceptional ride. Kubota’s Extra Duty IRS (Independent Rear Suspension) technology also sets a new standard for durability.

  • Height-Adjustable Front & Rear Suspension

    Whether you’ve got a heavy load or no load at all, 5 position adjustments for the front and rear suspension height will ensure the proper vehicle height for a smooth ride and optimum drivability.

  • 10.4” Inch Ground Clearance

    The new X-series raises the bar on ground clearance – to a full 10.4” with 8” of suspension travel – letting you glide over the bumps rather than through them.

  • CV Joint Protectors & Skid Plates

    Obstacles on the trail? CV joint protectors and heavy-duty skid plates will protect the most critical parts of the engine and transmission.

  • Limited-Slip Front Differential

    True 4WD drive with a limited-slip front differential and a locking rear differential help reduce wheel spin to a minimum, giving you greater control and a smoother ride on rough or muddy terrain.

  • Dynamic Braking

    You’ll feel more secure, especially when traveling down long inclines, knowing that dynamic braking is providing additional braking power and greater driving control.

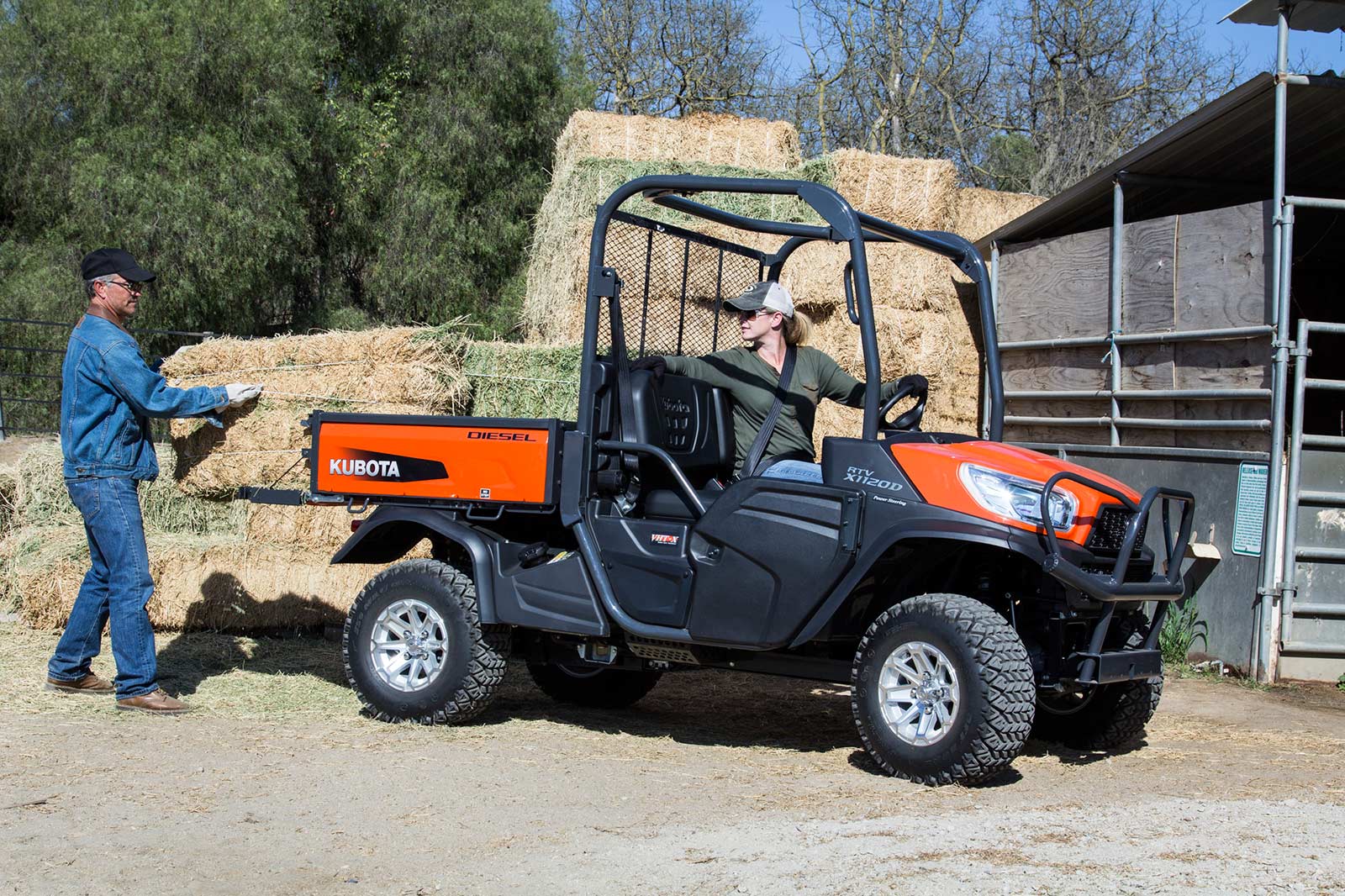

0813_RTV_X1120D_LoadHay_7588

Capacity

  • 1,300 lbs. towing capacity – standard front and rear two-inch hitch receivers at the front and back
  • Up to 15.2 cubic feet of cargo – heavy-duty steel cargo box can carry up to a half-ton (1,102 lbs.) of tools, firewood, gear, supplies... whatever you need to haul from here to there and back again
  • Tie-down hooks in four corners of cargo box
  • Optional factory spray-on bed liner to protect the cargo bed
  • Hydraulic dumping cargo box

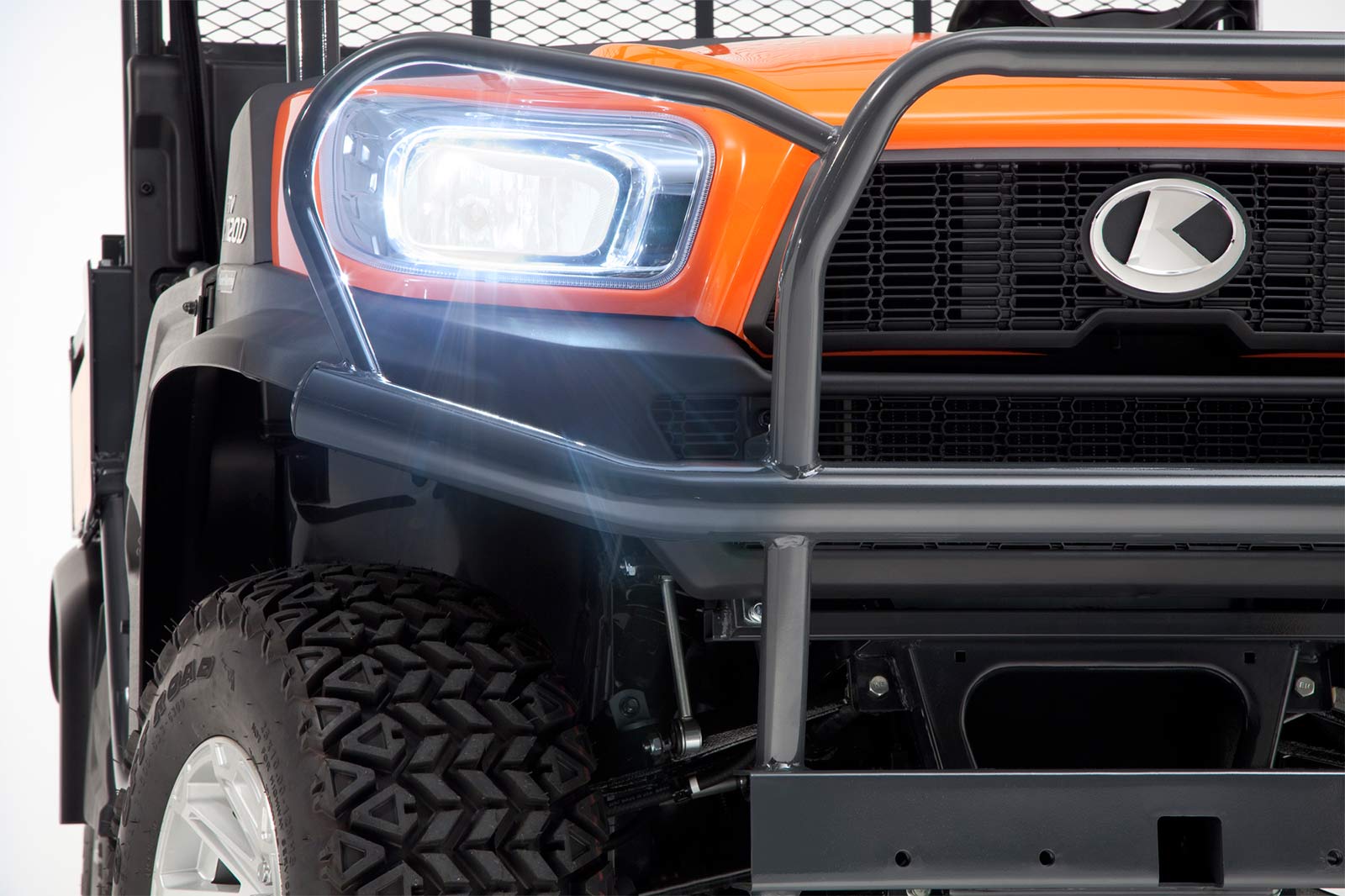

0613_X1120D_Headlight_L_5267

Style

  • Half doors help keep out the dirt, brush and other external objects while letting you enter and exit with ease
  • Alloy wheels – Machine-polished alloy wheels* with clear coating to stay bright and shiny
    *Realtree AP Camo model features black alloy wheels with polished outer surfaces.
  • Sculpted, blue tinted headlights – Bright and far-reaching halogen headlights with adjustable optical axis provide plenty of light for driving in dim-light conditions

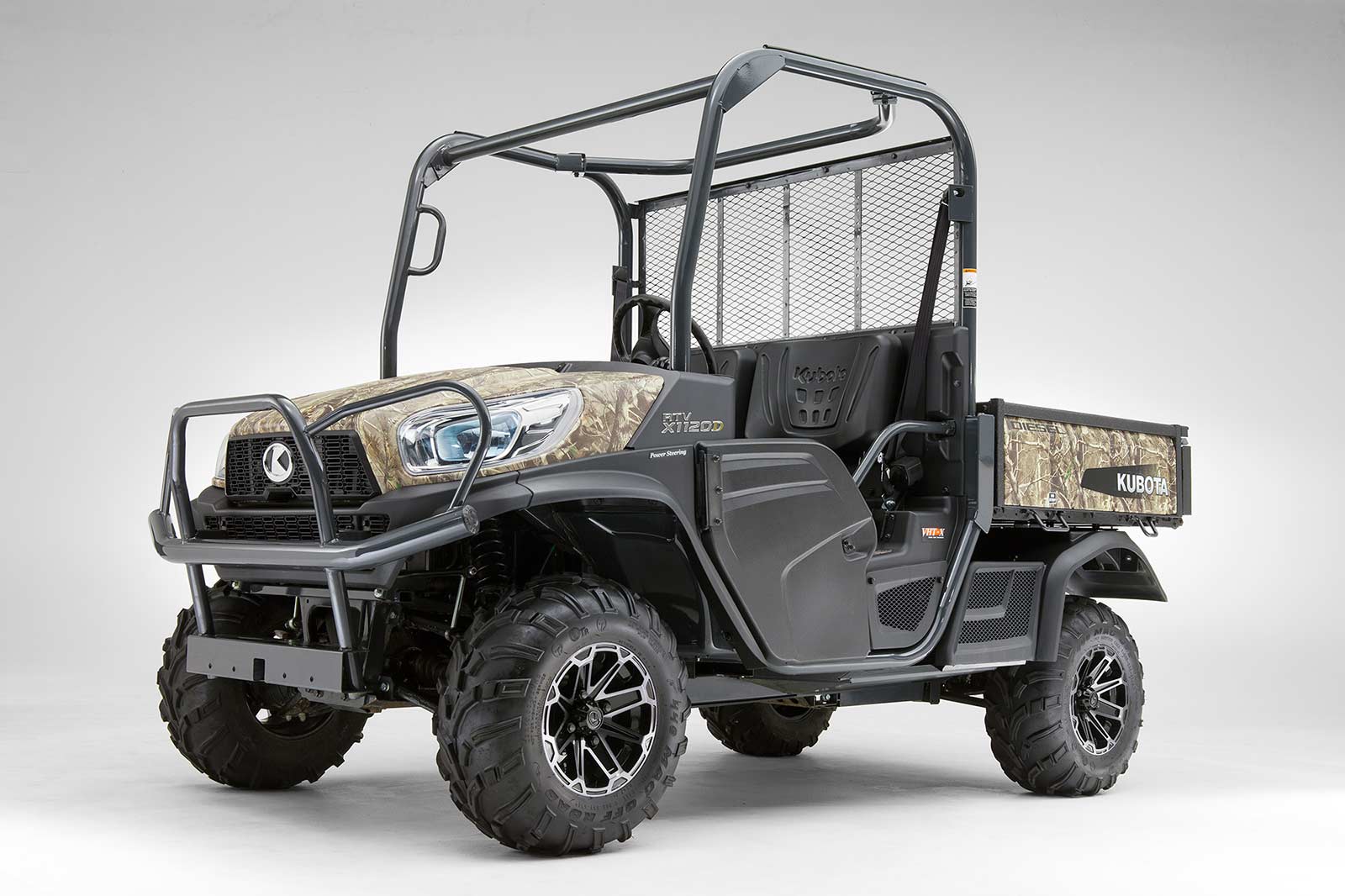

1213_RTV_X1120D_Front3_4L_2232

Comfort

  • 3-point seat belts
  • Ergonomically designed 60:40 split-bench seats (with adjustable driver’s side on Worksite models)
  • Hydraulic power steering eliminates steering wheel kickback increasing operator comfort
  • Tilt-adjustable steering wheel
  • Digital meter cluster to keep you informed of all critical driving conditions, including speed, hours and miles traveled, as well as an overheat alarm
  • ROPS for your safety – ROPS meet SAE J2194, OSHA 1928 and ANSI B71.9 standards
  • Easily accessible dash-mounted parking brake
  • Glove box and under-seat storage compartments

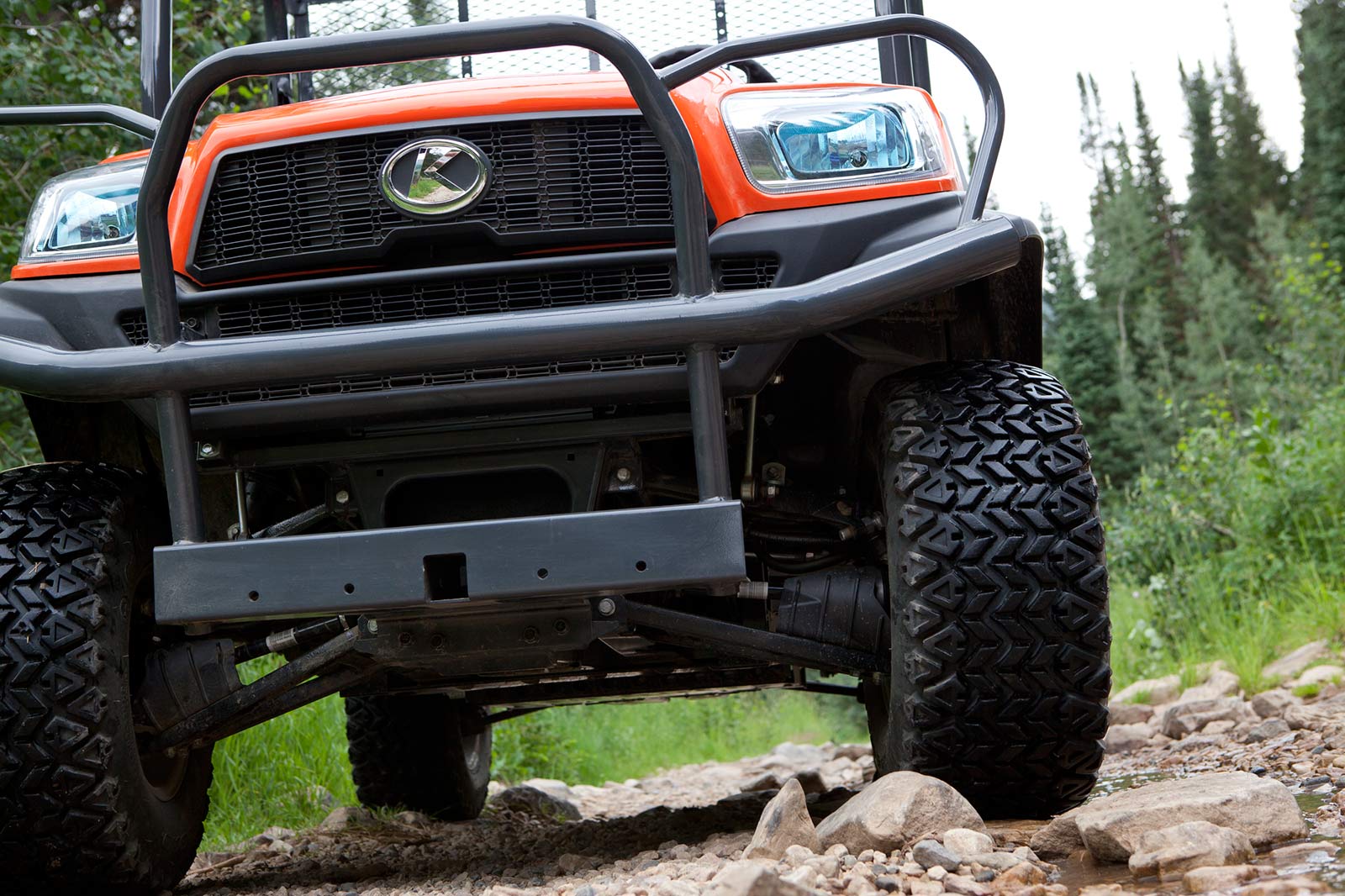

0713_RTV_X1120D_Attitude_6111

Tough

  • 24.8 HP Kubota Diesel Engine

    Power when and where you need it. Even after the sun disappears, you can rely on the powerful 24.8 HP diesel engine to keep you moving forward. Kubota-built and worksite-proven, these 3-cylinder liquid-cooled diesel engines have a well-earned reputation for dependable performance even in the harshest worksite terrains.

  • VHT-X (Variable Hydraulic Transmission)

    Kubota has more experience in variable hydraulic transmissions than any other Utility Vehicle manufacturer. Kubota’s advanced VHT-X offers a wide torque band, advanced designed HST motor and large oil coolers to boost durability and increase performance.

  • Strong High-Rigidity Frame

    The high-rigidity steel frame isolates the occupants from noise, vibrations and rough rides. With structural strength that few in the industry can match, this durable frame can take years of punishment from heavy loads and rough terrain. ROPS meets SAE, OSHA and ANSI standards.

  • Two-Speed In-Line Shift

    You’ll shift less often and maintain better control, thanks to new transmission gearing with just two forward speeds (high and low), plus neutral and reverse.

  • 20% Larger, Clog-Resistant Radiator

    Open the hood and you’ll find the radiator and air-intake located high and up front, where the air is cleaner and cooler. This improves both radiator performance and simplifies maintenance. Kubota’s wide fin pitch design minimizes clogging, further improving radiator performance.


SPECS & COMPARE

RTV-X1120

America's best-selling diesel utility vehicle.

MSRP AS LOW AS§ $14,299.00
  • Engine Type
    3-cylinders, 4-cycle, diesel, OHV
  • Horsepower HP (kW) /rpm
    24.8 (18.5)
  • Displacement cu. in. (cc)
    68.5 (1123)
  • Cargo Bed Load lbs. (kg)
    1102 (500)
  • Towing Capacity Ibs. (kg)
    1300 (590)
  • Length in. (mm)
    120.3 (3055) / 122.5 (3110)
  • Width in. (mm)
    63.2 (1605)
  • Height, Overall in. (mm)
    79.5 (2020)
  • Drive System
    4WD Standard
  • Transmission/Transmission Type
    Variable Hydro Transmission (VHT-X)
  • Differential Lock
    Standard
  • Fuel Tank Capacity US gal (L)
    7.9 (30)
  • Max. Traveling Speed mph (km/h)
    0-29 (0-46.4)
  • Build
  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •
§The Manufacturer's Suggested Retail Price excludes tax, dealer fees, and optional equipment. The equipment shown is for illustrative purposes only and may not be base equipment.

Choose Your Attachments

  • RTV-Not-Available
    3 Cubic Foot Rear Mount Spreaders

    3 Cubic Foot Rear Mount Spreaders

    Salt Spreader – V5002
    Seed Spreader – V5003
  • RTV-68-Gallon-Sprayer-System
    68 Gallon Sprayer System

    68 Gallon Sprayer System

    V5292
  • RTV-Deluxe-Hydraulic-Control
    Deluxe Hydraulic Controls & Valve Kits

    Deluxe Hydraulic Controls & Valve Kits

    V5232
  • RTV-Front-Hydraulic-Quick-Hitch
    Front Hydraulic Quick Hitch

    Front Hydraulic Quick Hitch

    V5289
  • RTV-Commercial-60-Rotary-Broom
    Commercial HD 60” Rotary Broom

    Commercial HD 60” Rotary Broom

    V5260
  • RTV-Commercial-Front-72-V
    Commercial HD Front 72” Straight & V-Blade

    Commercial HD Front 72” Straight & V-Blade

    Straight Blade – V5290
    V-Plow Blade – V5291

Choose Your Accessories

  • RTV-VC5091
    Cab Enclosure

    Cab Enclosure

    1. Pick a canopy
      • Metal FOPS Canopy
        • Black – VC5000
        • Orange – VC5001
      • Plastic Canopy – VC5011
    2. Pick a windshield
      • Tempered Glass – VC5025
      • Laminated Glass – VC5020
      • Hard-Coated Polycarbonate – VC5023
    3. Pick door type
      • Metal Door – VC5091
      • Vinyl Door with Metal Frame – VC5095
    4. Add a rear panel (for complete enclosure)
      • Metal Rear Panel – VC5040
    5. Add accessories
      • Mirrors - External Deluxe – VC5076
      • Heater Kit – VC5083
      • Windshield Wiper Kit – VC5030
      • Interior Dome Light – VC5053
      • LED Work Lights
        • Front Lights – VC5050
        • Rear Light – VC5051
      • Strobe Light – VC5056
    6. Stand Alone Options
      • Acrylic Windshield
        • Clear – V5227
        • Tinted – V5228
      • Uncoated Polycarbonate Windshield
        • Clear  – V5258
        • Tinted – V5259
      • Plastic Canopy – V5221
      • Halogen Work Lights
        • Front Lights – V5222
        • Rear Light – V5223
      • RTV Mirror Kit
        • ROPS – V4358
        • Cab – V5059
  • RTV-Not-Available
    Engine Hand Throttle Kit

    Engine Hand Throttle Kit

    V5243
  • RTV-Not-Available
    Front HD Spring & Damper Kit

    Front HD Spring & Damper Kit

    V5219
  • RTV-Not-Available
    Backup Alarm Kit

    Backup Alarm Kit

    V5236
  • RTV-Turn-Signal
    Turn Signal/Hazard Light Kit (ROPS only)

    Turn Signal/Hazard Light Kit (ROPS only)

    V5237
  • RTV-Not-Available
    CV Joint Guards

    CV Joint Guards

    Front – V5238
    Rear – V5239
