Full-Size Diesel Utility Vehicles

MSRP As Low As§
0 0 48 Offer Badge

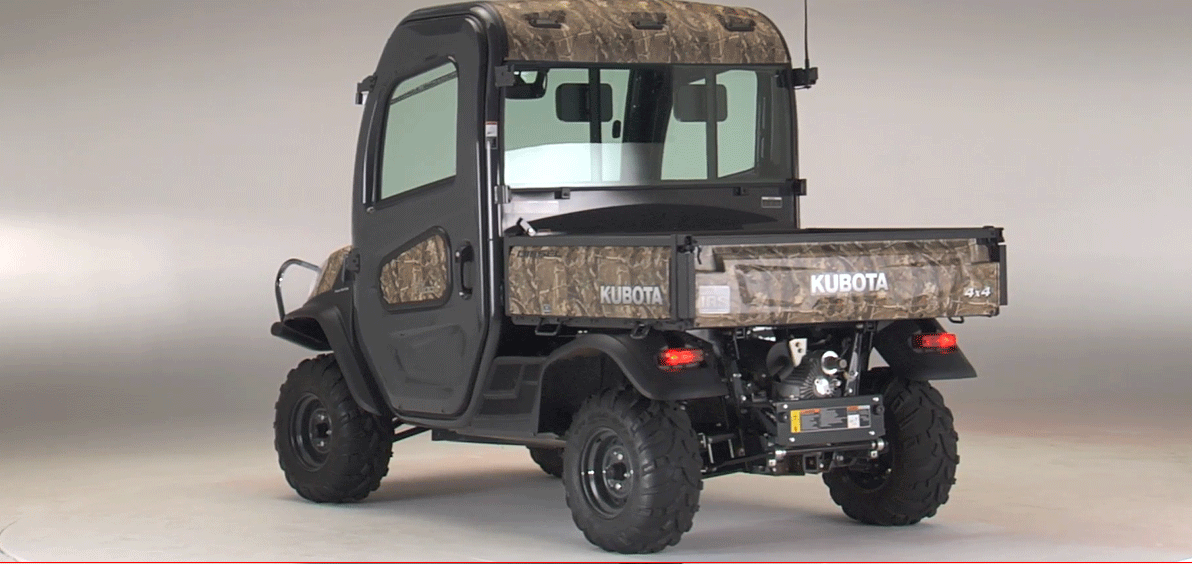

Experience the luxurious driving comfort in the first utility vehicle in the industry to offer a factory-installed, climate-controlled cab – plus, the power of a 24.8 HP Kubota D1105 3-cylinder diesel engine, exclusive Variable Hydro Transmission (VHT-X) and standard 4WD. It's a whole new level of comfort, power and performance. And it's got you covered for years to come with the standard two year / 1,000 hour warranty. Available in Orange or Realtree AP Camo.

Features & Details

PTO K-Connect

PTO K-Connect

Fast and reliable PTO connection system.


Customer Testimonial

We are confident that our equipment is among the best in the industry and is accompanied by unmatched customer service. But don't take it from us; hear about the character of our company and the quality of our products straight from real Kubota customers.

View Testimonial

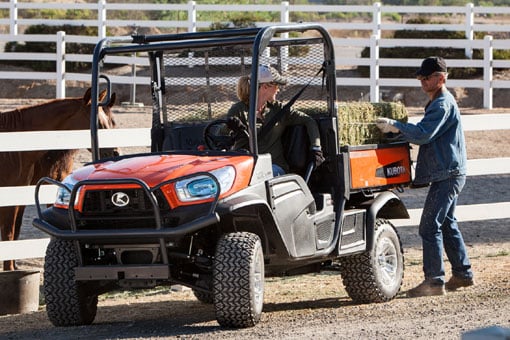

  • 1,300 lbs. towing capacity – standard front and rear two-inch hitch receivers at the front and back
  • Up to 15.2 cubic feet of cargo – heavy-duty steel cargo box can carry up to a half-ton (1,102 lbs.) of tools, firewood, gear, supplies... whatever you need to haul from here to there and back again
  • Tie-down hooks in four corners of cargo box
  • Optional factory spray-on bed liner to protect the cargo bed
  • Hydraulic dumping cargo box

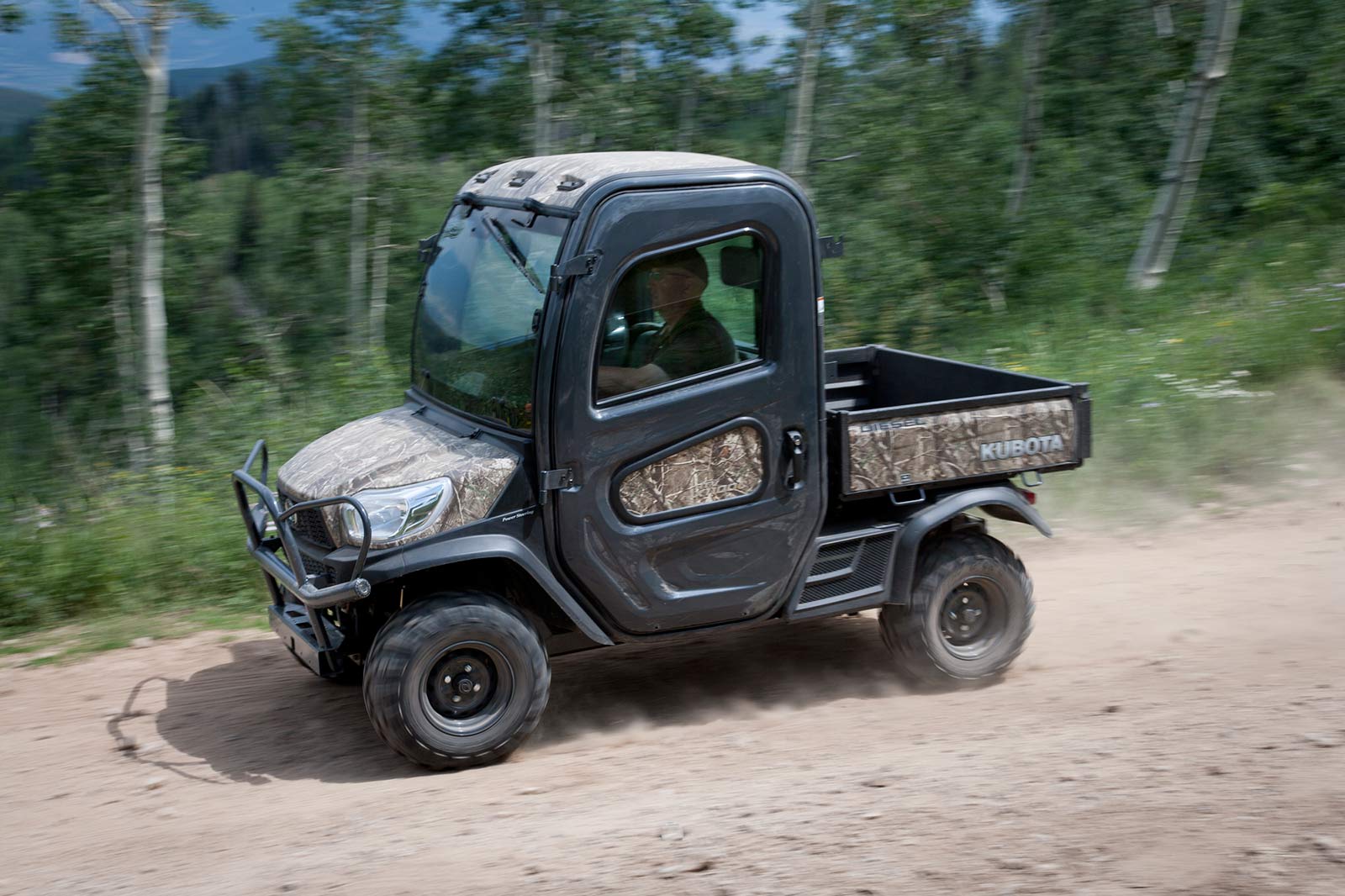

Exceptional Ride

  • Front & Rear Independent Suspension

    Regardless of the jobsite terrain or payload, independent suspension on all four wheels ensures a truly exceptional ride and traction. Kubota’s Extra Duty IRS (Independent Rear Suspension) technology also sets a new standard for durability.

  • Height-Adjustable Front & Rear Suspension

    Whether you’ve got a heavy load or no load at all, 5 position adjustments for the front and rear suspension height will ensure the proper vehicle height for a smooth ride and optimum drivability.

  • 10.4” Inch Ground Clearance

    The new X-series raises the bar on ground clearance – to a full 10.4” with 8” of suspension travel – letting you glide over the bumps rather than through them.

  • CV Joint Protectors & Skid Plates

    Obstacles on the trail? CV joint protectors and heavy-duty skid plates will protect the most critical parts of the engine and transmission.

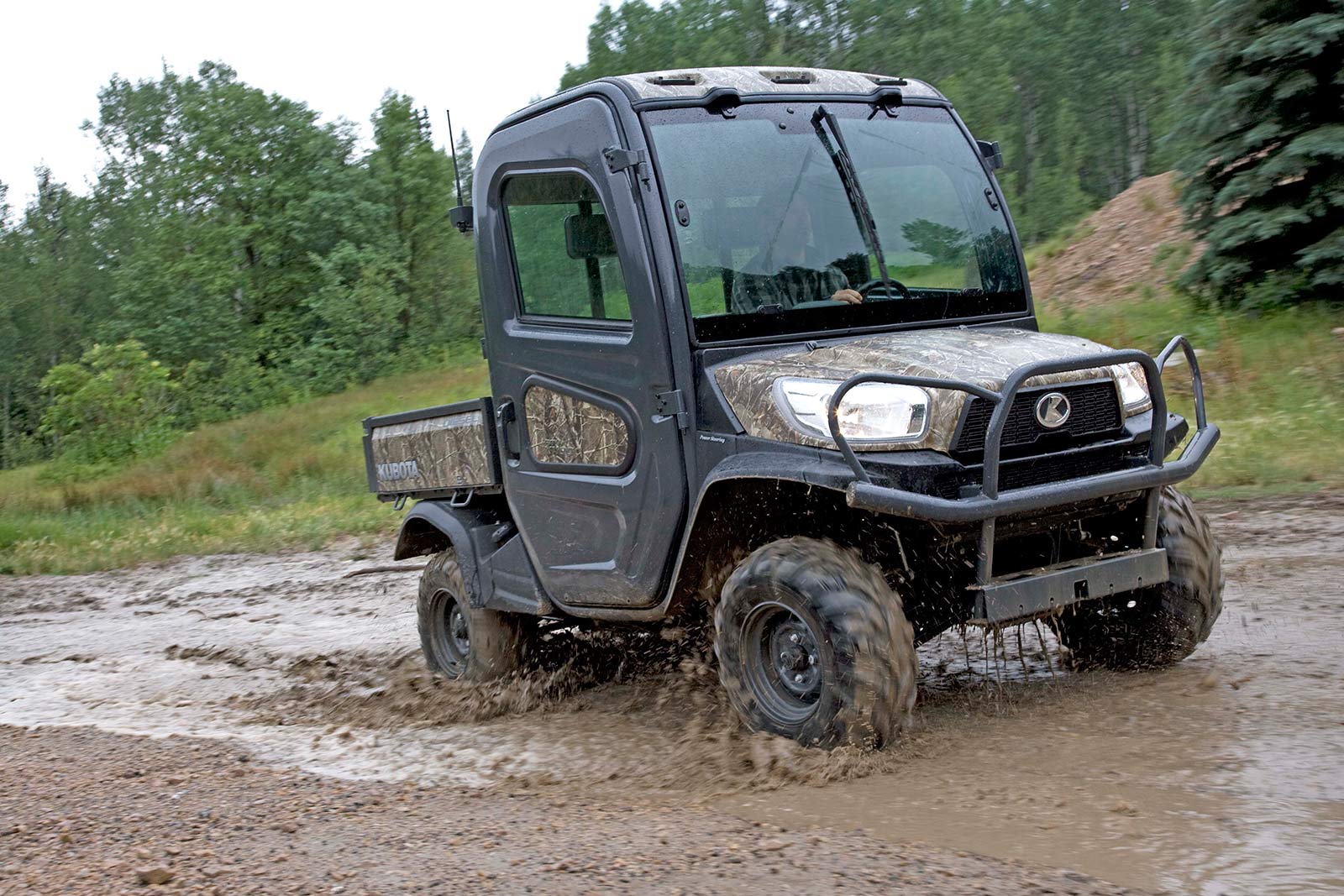

  • Limited-Slip Front Differential

    True 4WD drive with a limited-slip front differential and a locking rear differential help reduce wheel spin to a minimum, giving you greater control and a smoother ride on rough or muddy terrain.

  • Dynamic Braking

    You’ll feel more secure, especially when traveling down long inclines, knowing that dynamic braking is providing additional braking power and greater driving control.

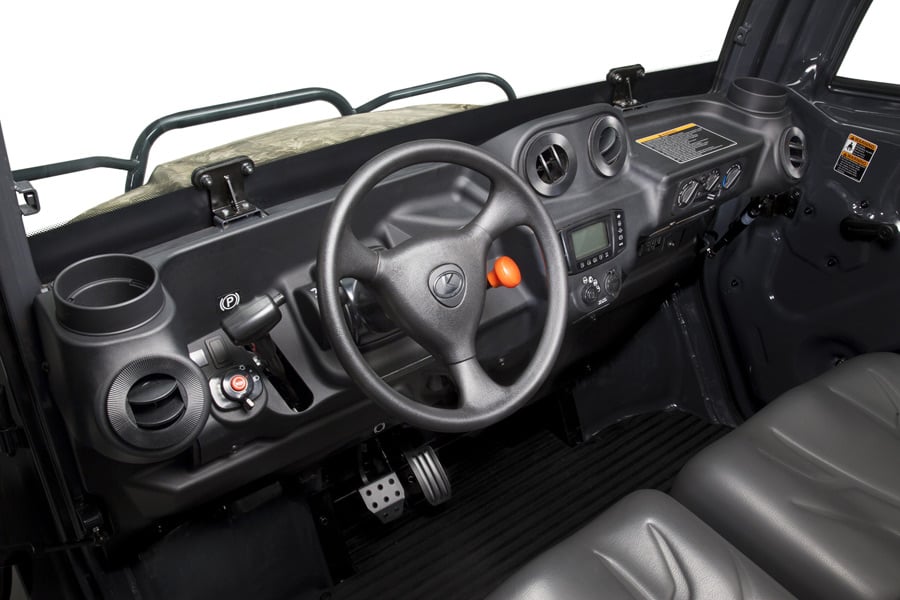

  • Factory Air Conditioner, Heater and Defroster
  • Antennas and speakers for an optional radio
  • Fully-opening roll-down windows in doors
  • Ergonomically designed 60:40 split-bench seats (with adjustable driver’s side on Worksite models)
  • Hydraulic power steering eliminates steering wheel kickback increasing operator comfort
  • Tilt-adjustable steering wheel
  • Digital meter cluster to keep you informed of all critical driving conditions, including speed, hours and miles traveled, as well as an overheat alarm
  • Easily accessible dash-mounted parking brake
  • Under-seat storage compartments


  • 24.8 HP Kubota Diesel Engine

    Power when and where you need it. Even after the sun sets, you can rely on the RTV-X1100 powerful 24.8 HP diesel engines to keep you moving forward. Kubota-built and worksite-proven, these 3-cylinder liquid-cooled diesel engines have a well-earned reputation for dependable performance even in the harshest worksite terrains.

  • VHT-X (Variable Hydraulic Transmission)

    Kubota has more experience in variable hydraulic transmissions than any other Utility Vehicle manufacturer. Kubota’s advanced VHT-X offers a wide torque band, advanced designed HST motor and large oil coolers to boost durability and increase performance.

  • Unibody Cab & Chassis Frame (meets OSHA & SAE ROPS standards)

    You’ll enjoy a smoother, quieter, more comfortable ride, thanks to the RTV-X1100C’s integrated unibody cab and chassis frame. They form a rigid yet lightweight unit that is rugged, airtight, low noise and rattle-free. Even more impressive, the cab meets SAE J2194 and OSHA 1928 ROPS standards.

  • Two-Speed In-Line Shift

    You’ll shift less often and maintain better control, thanks to new transmission gearing with just two forward speeds (high and low), plus neutral and reverse.

  • 20% Larger, Clog-Resistant Radiator

    Open the hood and you’ll find the radiator and air-intake located high and up front, where the air is cleaner and cooler. This improves both radiator performance and simplifies maintenance. Kubota’s wide fin pitch design minimizes clogging, further improving radiator performance.

SPECS & COMPARE: Kubota Models


So comfortable, so fun to drive, you’ll find excuses to take it for a spin.

MSRP AS LOW AS§ $20,999.00
  • Engine Type
    3-cylinders, 4-cycle, diesel, OHV
  • Horsepower HP (kW) /rpm
    24.8 (18.5) @3000
  • Displacement cu. in. (cc)
    68.5 (1123)
  • Cargo Bed Load lbs. (kg)
    1102 (500)
  • Towing Capacity Ibs. (kg)
    1300 (590)
  • Length in. (mm)
    122.5 (3110)
  • Width in. (mm)
    65.4 (1660)
  • Height, Overall in. (mm)
    82.3 (2090)
  • Drive System
    4WD Standard
  • Transmission / Transmission Type
    Variable Hydro Transmission (VHT-X)
  • Differential Lock
  • Fuel Tank Capacity US gal (L)
    7.9 (30)
  • Max. Traveling Speed mph (km/h)
    0-25 (0-40)
  • Build
§The Manufacturer's Suggested Retail Price excludes tax, dealer fees, and optional equipment. The equipment shown is for illustrative purposes only and may not be base equipment.

Choose Your Attachments

  • PTO K-Connect
    PTO K-Connect

    PTO K-Connect

    Fast and reliable PTO connection system.
    Learn more
  • RTV-Not-Available
    3 Cubic Foot Rear Mount Spreaders

    3 Cubic Foot Rear Mount Spreaders

    Salt Spreader – V5002
    Seed Spreader – V5003
  • RTV-10-Cubic-Foot-Cargo-Box
    10 Cubic Foot Cargo Box Salt/Sand Spreader

    10 Cubic Foot Cargo Box Salt/Sand Spreader

  • RTV-68-Gallon-Sprayer-System
    68 Gallon Sprayer System

    68 Gallon Sprayer System

  • RTV-Deluxe-Hydraulic-Control
    Deluxe Hydraulic Controls & Valve Kits

    Deluxe Hydraulic Controls & Valve Kits

  • RTV-Front-Hydraulic-Quick-Hitch
    Front Hydraulic Quick Hitch

    Front Hydraulic Quick Hitch


Choose Your Accessories

  • RTV-VC5091
    Cab Enclosure

    Cab Enclosure

    1. Pick a canopy
      • Metal FOPS Canopy
        • Black – VC5000
        • Orange – VC5001
      • Plastic Canopy – VC5011
    2. Pick a windshield
      • Tempered Glass – VC5025
      • Laminated Glass – VC5020
      • Hard-Coated Polycarbonate – VC5023
    3. Pick door type
      • Metal Door – VC5091
      • Vinyl Door with Metal Frame – VC5095
    4. Add a rear panel (for complete enclosure)
      • Metal Rear Panel – VC5040
    5. Add accessories
      • Mirrors - External Deluxe – VC5076
      • Heater Kit – VC5083
      • Windshield Wiper Kit – VC5030
      • Interior Dome Light – VC5053
      • LED Work Lights
        • Front Lights – VC5050
        • Rear Light – VC5051
      • Strobe Light – VC5056
    6. Stand Alone Options
      • Acrylic Windshield
        • Clear – V5227
        • Tinted – V5228
      • Uncoated Polycarbonate Windshield
        • Clear  – V5258
        • Tinted – V5259
      • Plastic Canopy – V5221
      • Halogen Work Lights
        • Front Lights – V5222
        • Rear Light – V5223
      • RTV Mirror Kit
        • ROPS – V4358
        • Cab – V5059
  • RTV-Not-Available
    Engine Hand Throttle Kit

    Engine Hand Throttle Kit

  • RTV-Not-Available
    Front HD Spring & Damper Kit

    Front HD Spring & Damper Kit

  • RTV-Not-Available
    Backup Alarm Kit

    Backup Alarm Kit

  • RTV-Turn-Signal
    Turn Signal/Hazard Light Kit (ROPS only)

    Turn Signal/Hazard Light Kit (ROPS only)

  • RTV-Not-Available
    CV Joint Guards

    CV Joint Guards

    Front – V5238
    Rear – V5239
