M Narrow Series - Prior Model

Specialty

MSRP As Low As§
$54,839.10
(Images may reflect a different MSRP)

MODELS: M4N-071, M5N-091, M5N-111
M-Series specialty tractor features a Kubota-designed and Kubota-built V-3800-Tier IV engine, performance-matched to bring Kubota durability to the strenuous demands of specialty agricultural applications. Creeper options are available to add even more precision to specialty tasks, with a 36-speed creeper available on the M5N models and an 18-speed creeper option on the M4N-071 narrow. #1 selling compact tractor in the USA.

*Based on EDA/UCC Data from 01/01/2018 - 12/31/2022 for sales of new compact tractors 0-200 Hp in the USA.

Read Disclaimer

Features & Details

Transmission

Progressive farmer logo black
#1 rated tractor brand for durability and owner experience in the U.S.

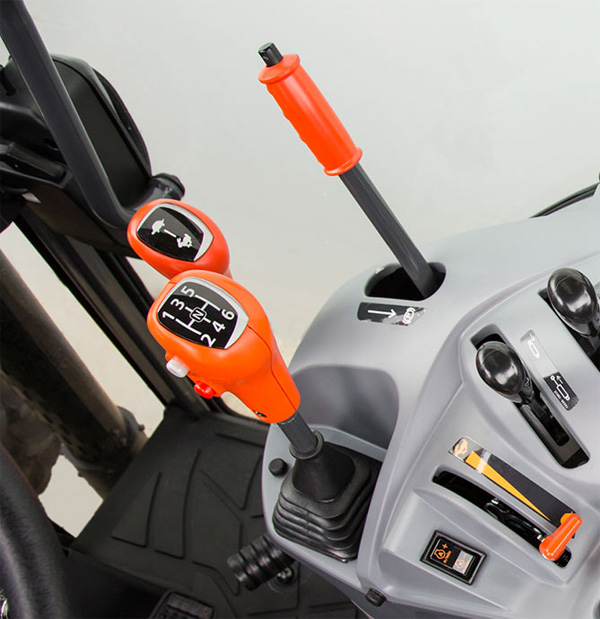

High productivity requires versatility, such as traveling at low or sustained speeds. This tractor's transmission has 12F x 12R speed (24F x 24R is available on M5N only), with six speeds in two ranges, making sure the right gear for the job is always available. The shuttle shift is electric over hydraulic, making direction changes a breeze. These tractors also have economy 540/540E PTO as standard equipment to save fuel and reduce noise when light duty jobs are being performed.

Bi-Speed Turning

Kubota exclusive Bi-Speed turning is standard. When Bi-Speed is engaged, the front tires will rotate faster than the rear tires, pulling the front of the tractor around keeping a tight turning radius.

Redesigned Cab

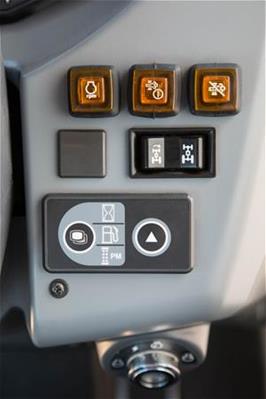

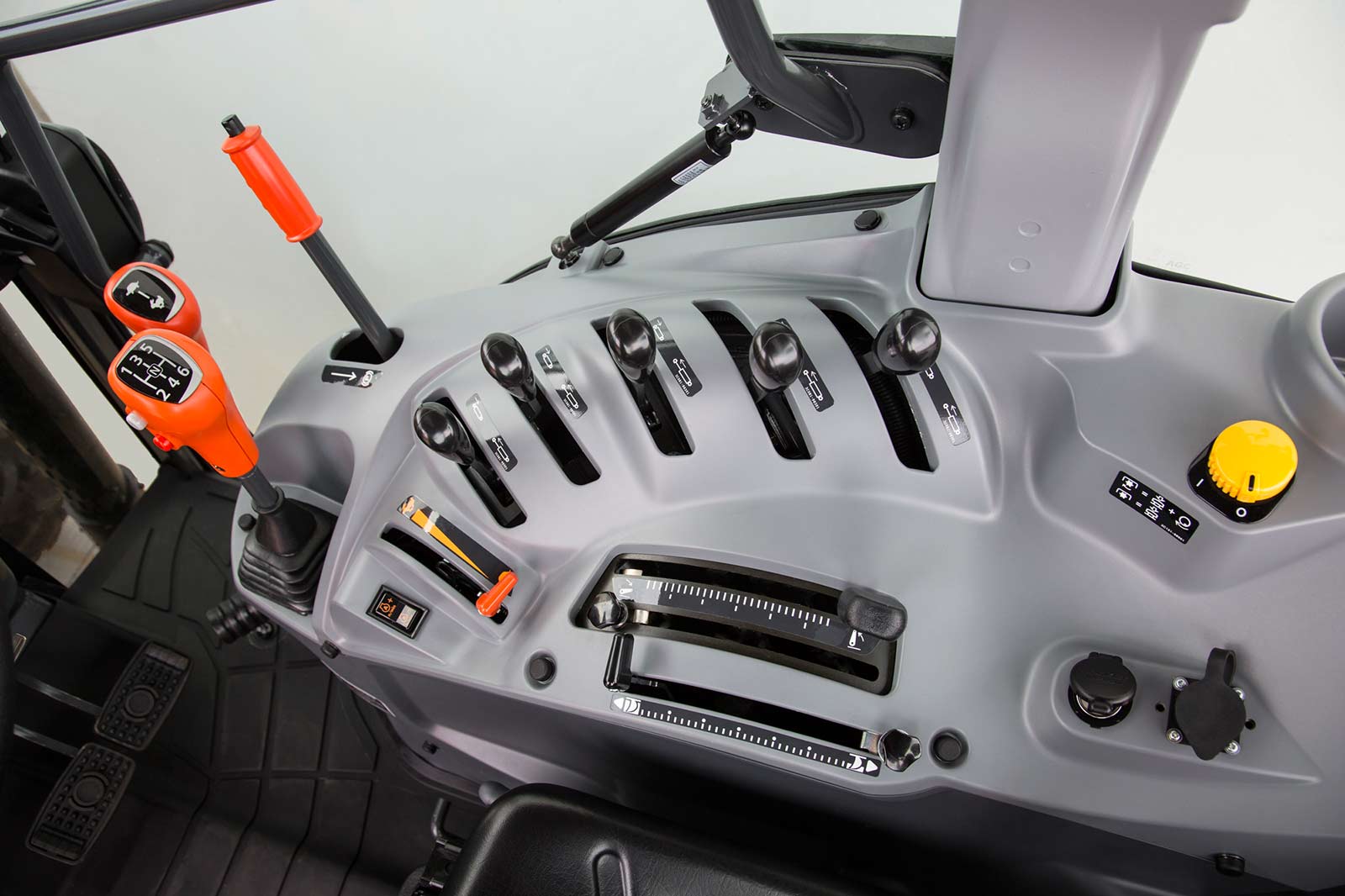

To promote operator efficiency, the dash has been updated and contains a multi-function, multi-view intellipanel. All main controls are on the right hand side of the operator, while the steering wheel has 40 degrees tilt. Dual side mirrors and an easy access fuse box are standard.

Improved Hydraulics

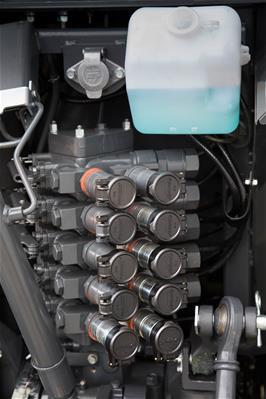

The M Series Narrow tractors have more standard rear remote valves than before, now offering 2 valves as standard. With 18.1 GPM flow (16.7 GPM for M4N) and optional third, fourth or fifth remotes (all valves being independent flow control valves), the tractor is ready to accept implements requiring multiple valves.

Kubota Diesel Engines

Proven, Powerful and Reliable

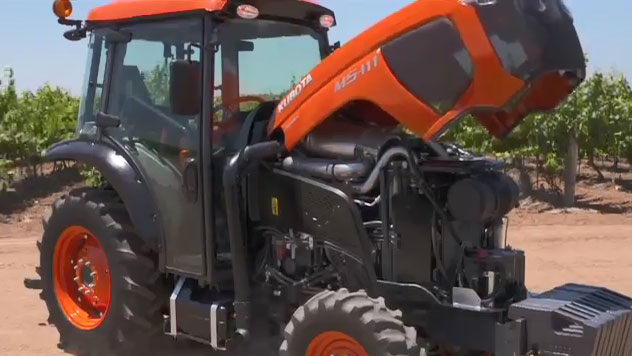

The M Series Narrow tractors are powered by the very popular V3800 series Kubota Diesel engine, which is a 3.8 liter, turbocharged, Tier 4 final engine. Packed with up to 108 engine HP, the M Series Narrow tractors are ready work.

M4N-071: 72.6 HP*, 61.0 Max PTO HP**

M5N-091: 95 Rated HP*, 78.0 Max PTO HP**

M5N-111: 108 Rated HP*, 91.0 Max PTO HP**

*Engine HP @ 2400 rpm (According to 97/68EC)
**PTO Power @ rated engine rpm (Manufacturer's Estimate)


SPECS & COMPARE: Kubota Models

M Narrow Series - Prior Model

72.6 - 108.2 HP. Narrow enough to work between vines – powerful enough to be M Series.

MSRP AS LOW AS§ $54,839.10
  • Gross Engine HP
    72.6-108.2
  • PTO HP
    61-91
  • Standard Transmission
    Standard: 12F/12R, Option: 24F/24R
  • Creep Option
    Yes
  • Loader Lift Capacity
  • PTO
    Standard: 540/540E rpm
  • Hydraulic Flow
    16.7-24.9
  • Three Point Linkage Type
    Category II
  • Three Point Linkage Capacity
    3307
  • Operator Platform
    CAB/ROPS
  • Driveline Type
    4WD
  • Build
  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •
§The Manufacturer's Suggested Retail Price excludes tax, dealer fees, and optional equipment. The equipment shown is for illustrative purposes only and may not be base equipment.
